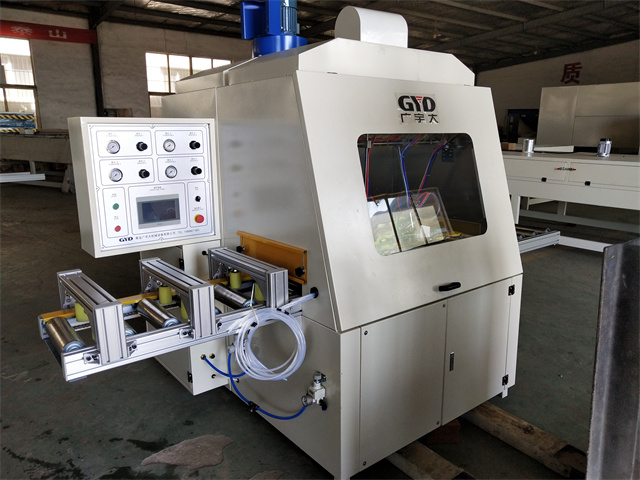

Automatic paint spraying machines integrate multiple subsystems to deliver precise coatings:
1. Core Components
- Spray guns: Electronically controlled nozzles atomize paint using high pressure (hydraulic or pneumatic).
- Robotic arms: Multi-axis articulating mechanisms enable 3D surface coverage (e.g., Kbotic's 4–5-axis systems).
- Control systems: Programmable logic controllers (PLCs) adjust parameters like paint flow (20–200 mL/min), pressure (2–6 bar), and trajectory.
- Conveyor systems: Transport workpieces at speeds up to 8 m/min through spraying zones.
2. Operational Process
1. Pre-treatment: Workpieces undergo cleaning (degreasing, sandblasting) to enhance paint adhesion.
2. Programming: Operators input coating specifications (thickness: 15–50 µm, pattern type) via HMI interfaces.
3. Application: Robotic arms follow pre-mapped paths, applying paint at 2–5 m/s with ±0.1 mm repeatability.
4. Quality control: AI-powered cameras detect defects (runs, uneven coverage) at 30–60 fps and trigger corrections.
5. Curing: Infrared or UV drying systems harden coatings in 30–120 seconds.
| Factor | Manual Spraying | Automatic Spraying |
|---|---|---|
| Speed | 3–4 parts/minute | 15–18 parts/minute |
| Paint Usage | 40–50% transfer efficiency | 85–95% efficiency |
| Defect Rate | 15–20% | <2% |
| Labor Cost | $25–$35/hour/operator | $5–$10/hour (maintenance) |
Additional benefits:
- Environmental compliance: Multi-stage filtration (EU5 wax filters) captures 99% of overspray.
- Worker safety: Isolated cabins reduce VOC exposure by 90% compared to open booths.
- Consistency: Uniform finishes enhance product appearance and quality, crucial for automotive and aerospace sectors.
- Scalability: Modular designs allow easy expansion to meet increased demand without significant infrastructure changes.
1. AI-Optimized Coating (2025–2030)
- Machine learning algorithms analyze historical data to predict optimal spray angles, reducing trials by 40%.
- Digital twins: Virtual simulations cut setup time by 65% for new workpiece geometries.
- Predictive Maintenance: AI detects impending component failures, scheduling maintenance during off-peak hours to minimize downtime.
2. Hyper-Customization
- On-demand pattern changes via QR code scanning (e.g., automotive trim personalization).
- Kavision 3D scanning: Detects workpiece dimensions within ±0.5 mm to auto-generate spray paths.
- Color Matching: Advanced spectrophotometers ensure precise color reproduction, reducing rework by 30%.
3. Sustainable Systems
- Closed-loop paint recovery reclaims 30% of overspray for reuse.
- UV-LED curing reduces energy use by 50% versus thermal methods.
- Eco-friendly Paints: Systems support water-based and low-VOC formulations, aligning with stricter environmental regulations.
- General Motors: Implemented automatic spraying lines to increase production by 25% while reducing paint waste by 40%.
- Toyota: Utilized AI-driven quality control to achieve a defect rate below 1%, enhancing brand reputation for quality.
- Boeing: Adopted advanced robotic systems for complex aircraft components, improving coating uniformity and reducing manual labor by 60%.
- Airbus: Integrated digital twins to simulate coating processes, reducing setup times by 50% for new aircraft designs.
Q1: How much floor space do these machines require?
A: Compact models (e.g., Kbotic) need 6.6m × 5.1m, while modular lines expand incrementally.
Q2: Can they handle irregularly shaped objects?
A: Yes. 6-axis robots with 3D vision adapt to contours like motorcycle helmets.
Q3: What's the average ROI period?
A: 12–18 months via 50% paint savings and 300% throughput gains.
Q4: How often do spray nozzles need replacement?
A: Tungsten carbide nozzles last 800–1,200 hours with automated cleaning.
Q5: Do they support water-based paints?
A: Yes. Systems include stainless steel fluid paths to resist corrosion.
For a deeper dive into the technology, consider the following resources:
- Videos: Watch demonstrations of robotic spraying systems on YouTube or industry forums.
- Case Studies: Review detailed analyses of successful implementations in various industries.
- Technical Guides: Consult manufacturer manuals for specific setup and maintenance instructions.
Automatic paint spraying machines represent a significant leap forward in industrial coating technology, offering unparalleled efficiency, precision, and sustainability. As these systems continue to evolve with AI and digital innovations, they are poised to transform manufacturing processes across multiple sectors. Whether you are an industry professional or an investor, understanding these advancements is crucial for staying ahead in today's competitive market.
