As a leading Paint Drying Machine Manufacturer, GYD Finishing has been at the forefront of delivering advanced drying and curing solutions since 2007. With extensive global experience and deep industry expertise, GYD provides integrated coating and finishing machinery tailored for a wide range of surface treatment applications. Among its diverse equipment portfolio, the paint drying machine series plays a critical role in ensuring efficient, high-quality, and environmentally friendly drying and curing processes.
This document presents a comprehensive overview of GYD Finishing’s paint drying machines, including the types available, production processes, operational guidelines, application examples, and frequently asked questions. This information is designed to assist manufacturers, engineers, and industry professionals in selecting and optimizing drying equipment from a trusted Paint Drying Machine Manufacturer.
GYD offers multiple types of paint drying machines to accommodate various production requirements, coating materials, and substrate types:

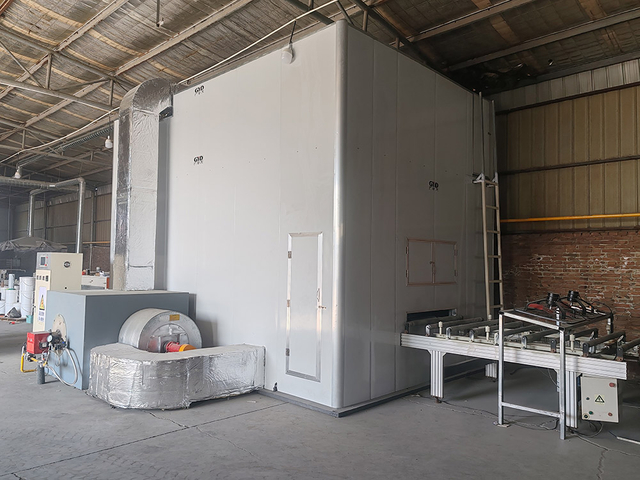

The Vertical Drying Oven is a highly efficient drying solution designed for heat-sensitive materials and vertical or hanging workpieces. This oven features a vertical airflow design that ensures uniform temperature distribution and rapid moisture evaporation, reducing drying time while maintaining coating integrity.
Key Features:
Vertical airflow circulation for even heat distribution
Adjustable temperature controls for precise drying conditions
Compact footprint suitable for limited factory space
Ideal for painted panels, doors, and vertical furniture components
The Infrared Heating Dryer Tunnel uses infrared radiation to quickly transfer heat directly to the coating surface, promoting rapid drying without overheating the substrate. This technology is highly energy-efficient and capable of curing a wide range of paint types, including water-based and solvent-based coatings.
Key Features:
Direct heating reduces drying time dramatically
Energy-saving infrared lamps with adjustable intensity
Suitable for continuous production lines with conveyor integration
Effective for metals, plastics, composites, and wooden products

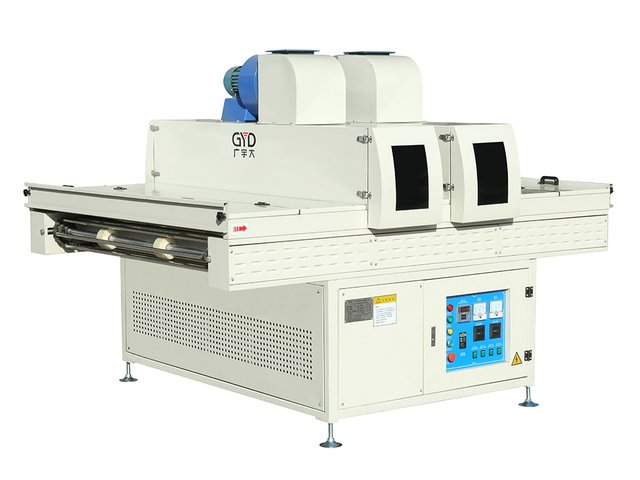

The UV Curing Machine integrates two ultraviolet lamps to rapidly cure UV-sensitive coatings and inks. This machine is designed for fast curing cycles, minimal heat generation, and eco-friendly operation. The dual lamp configuration provides enhanced curing coverage, ensuring superior coating hardness and durability.
Key Features:
Instant curing of UV coatings with two high-intensity UV lamps
Minimal thermal impact on substrates, ideal for heat-sensitive materials
Environmentally friendly, solvent-free operation
Commonly used in decorative surfaces and customized furniture finishing
The paint drying process is a critical step in the surface finishing workflow, affecting product quality, throughput, and environmental compliance. GYD’s paint drying machines are designed to optimize this process through controlled heat application, airflow management, and curing technology.
Inspect coated parts to ensure even application of paint or coating.
Adjust drying parameters based on substrate type, paint composition, and thickness.
For Vertical Drying Ovens, hang or position parts vertically to maximize airflow contact.
For Infrared Heating Dryer Tunnels, load parts onto the conveyor system for continuous drying.
For UV Curing Machines, position parts under the UV lamps with proper exposure time.
The Vertical Drying Oven circulates heated air vertically, removing solvents and moisture while setting the paint film.
Infrared lamps emit radiation absorbed by the coating, quickly evaporating solvents and solidifying the finish.
UV Curing Machines activate photoinitiators in UV coatings, instantly polymerizing the surface for immediate handling.
Parts exit the drying machine and undergo cooling to room temperature to stabilize the coating.
Carefully unload and inspect for drying uniformity and coating defects.
Operating paint drying machines safely and effectively requires adherence to manufacturer instructions and industry best practices:
Temperature Settings: Always set temperatures according to the paint manufacturer’s recommendations to prevent overheating or incomplete drying.
Airflow Management: Ensure ventilation systems and airflow paths are clear to maintain uniform drying conditions.
Lamp Maintenance: Regularly clean and replace infrared and UV lamps to maintain consistent output and curing efficiency.
Protective Equipment: Operators should wear appropriate personal protective equipment (PPE), especially when working near UV curing machines.
Regular Calibration: Periodic calibration of temperature sensors, conveyors, and control systems guarantees optimal performance.
Fire Safety: Maintain clear zones around the drying equipment to prevent fire hazards, as some solvents may be flammable during drying.
Emergency Stop: Familiarize operators with emergency shutdown procedures to promptly handle any operational anomalies.
GYD’s paint drying machines are widely used across various industries and applications, showcasing their versatility and reliability:
Drying painted or lacquered wooden panels, cabinet doors, and decorative trims using Vertical Drying Ovens or UV Curing Machines for a flawless finish.
Infrared Heating Dryer Tunnels efficiently cure coatings on metal or composite wall panels, accelerating production while maintaining coating durability.
High-throughput Infrared Dryers cure varnishes on laminate and engineered wood flooring, enhancing scratch resistance and appearance.
Vertical Drying Ovens ensure even drying of paint coatings on door skins and window frames, minimizing defects and warping.
Infrared drying technology rapidly cures solvent-based paints on metal parts, meeting stringent quality and throughput demands.
UV Curing Machines provide solvent-free, instant curing for UV-sensitive coatings applied to plastic trims, glass panels, and display surfaces.
A: GYD combines over 15 years of experience, advanced manufacturing technology, and global application expertise. Our machines feature intelligent controls, energy efficiency, and robust construction, ensuring high-performance drying solutions tailored to customer needs.
A: Infrared radiation directly heats the coating surface without excessively warming the substrate, significantly reducing drying times and energy consumption compared to traditional convection ovens.
A: Yes. The dual-lamp configuration provides broad UV coverage, and machine designs can be customized to accommodate various sizes and shapes, ensuring uniform curing on complex surfaces.
A: Operators must wear UV protective goggles and gloves, ensure proper shielding of UV lamps, and maintain strict access control to prevent exposure to harmful ultraviolet radiation.
A: Absolutely. Our machines support drying of both water-based and solvent-based coatings, with adjustable parameters to optimize drying conditions for each paint type.
A: Lamp replacement depends on operating hours and output degradation but typically ranges from 1000 to 3000 hours of use. Regular monitoring of lamp intensity is recommended to maintain drying performance.
A: Yes, our machines are designed with modular interfaces and controls that allow seamless integration into automated coating and finishing production lines.
A: GYD offers comprehensive after-sales support, including installation assistance, operator training, routine maintenance guidance, remote diagnostics, and spare parts supply.
A: Vertical Drying Ovens use heated air circulation to dry coatings, which is gentle on heat-sensitive substrates, while Infrared Drying Tunnels use radiation to directly heat the coating surface for faster drying.
A: Energy-efficient motors, advanced temperature and lamp intensity controls, and the use of UV curing technology contribute to reduced power consumption and lower operational costs.
GYD Finishing stands as a reputable Paint Drying Machine Manufacturer delivering state-of-the-art drying and curing equipment that meets the diverse needs of surface finishing industries. Whether it is the Vertical Drying Oven designed for vertical substrates, the Infrared Heating Dryer Tunnel for rapid and energy-efficient drying, or the UV Curing Machine with dual lamps for instant curing, GYD machines combine advanced technology, operational flexibility, and environmental responsibility.
The detailed production processes, safety protocols, versatile applications, and dedicated after-sales service underline GYD’s commitment to quality and customer satisfaction. Manufacturers choosing GYD as their Paint Drying Machine Manufacturer can expect reliable, high-performance drying solutions that enhance product quality, increase productivity, and align with sustainable production goals.
