Coating dryers play a crucial role in various industries where thin films or coatings are applied to substrates. Their primary function is to remove solvents or moisture from coatings, ensuring adhesion, durability, and quality of the final product. This article explores the working principles, types, and applications of coating dryers, supported by detailed explanations and multimedia illustrations to enhance understanding.

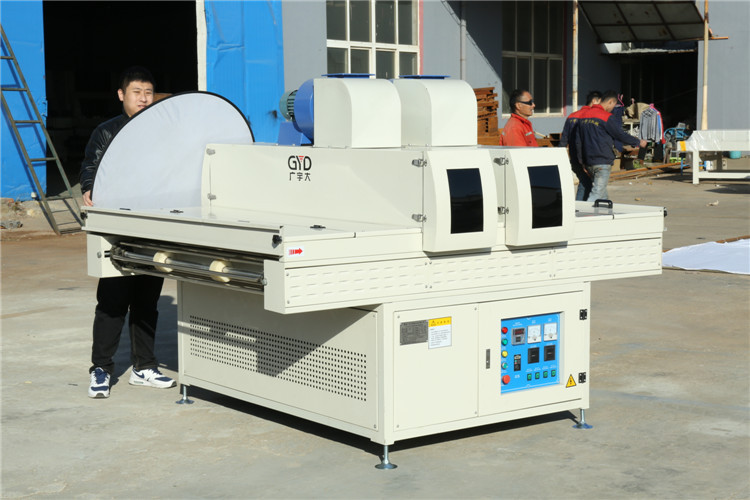

A coating dryer is a device designed to evaporate the liquid components-usually water or solvents-from a coating applied on a substrate. This process solidifies the coating, preparing the material for subsequent processing or use.
- Removes excess moisture or solvents to prevent defects.
- Ensures uniform film formation.
- Enhances coating adhesion and mechanical properties.
- Improves surface smoothness and gloss.
Drying involves heat transfer to the coated substrate and mass transfer of evaporated solvents away from the surface. Typically, warm air or infrared radiation is used to supply heat.
- Warm air is directed onto the coated substrate, raising its temperature.
- As the coating heats up, solvent vapor pressure increases, initiating evaporation.
- Evaporation cools the coating surface, balancing the temperature until the solvent is fully removed.
- Once drying completes, the substrate temperature rises to match the drying air temperature.
This process is divided into three phases:
1. Initial heating – rapid temperature increase.
2. Constant evaporation – temperature plateaus as solvent evaporates.
3. Final drying – temperature rises again after solvent removal.
- Air velocity: Higher velocity increases heat transfer, speeding drying.
- Air temperature: Higher temperature accelerates solvent evaporation.
- Air humidity: Lower humidity improves drying efficiency.
These dryers use heated air blown over the coated substrate to evaporate solvents.
- Common in paper and film coating.
- Air is directed via nozzles onto one or both sides of the web.
- Efficient for water- and solvent-based coatings.
IR dryers use infrared radiation to heat the coating directly.
- Ideal for initial drying stages.
- Small footprint and precise heating.
- No contact between dryer and substrate, reducing damage risk.
Tunnel dryers move the coated material through a heated tunnel on conveyors or trolleys.
- Provide controlled drying zones.
- Can use hot air, microwave, RF, or IR heat sources.
- Suitable for batch or continuous processes.
Drum dryers involve coating a rotating heated drum with the wet material.
- Steam heats the drum internally.
- The coating dries on the drum surface and is scraped off.
- Used for pastes, slurries, and viscous coatings.
- Dryers remove moisture from coated paper to enhance printability and strength.
- Combination of drying cylinders, forced air, and IR dryers are commonly used.
- Coating dryers are critical in applying thin films on electrodes.
- Precise control over drying parameters affects battery performance.
- Example: Slit coaters combined with hot air dryers for polyimide and metal foil substrates.
- Auto coaters use rotating drums with heated air to dry coatings on tablets.
- Ensures uniform drug release and protects active ingredients.
- Dryers remove solvents from polymer coatings on films and fabrics.
- Maintain substrate integrity while achieving desired coating properties.
- Thicker coatings require longer drying times or higher heat input.
- Viscosity affects coating uniformity and drying behavior.
- Different substrates (metal foil, resin film, paper) have varied heat sensitivities.
- Line speed must balance production efficiency and drying completeness.
- Must be controlled to avoid substrate damage or coating defects.
- Uniform airflow distribution prevents uneven drying.
- Integration of sensors for real-time moisture and temperature monitoring.
- Use of variable frequency drives for precise control of drying air velocity.
- Development of energy-efficient dryers combining IR and convection heat.
- Automation in coating weight and drying power control for consistent quality.
Q1: What types of coatings can be dried using coating dryers?
A1: Water-based, solvent-based, polymer, adhesive, and specialty coatings can be dried depending on the dryer type and settings.
Q2: How does air velocity affect drying efficiency?
A2: Higher air velocity increases heat transfer, accelerating solvent evaporation and reducing drying time.
Q3: Why are IR dryers preferred for initial drying stages?
A3: IR dryers provide rapid, localized heating without contact, preventing coating damage and enabling quick solvent removal.
Q4: What is the significance of drying phases in coating drying?
A4: Understanding drying phases helps optimize temperature and airflow to avoid defects like blistering or incomplete drying.
Q5: Can coating dryers be used for heat-sensitive substrates?
A5: Yes, with controlled temperature and drying time, dryers like IR or low-temperature convection dryers can safely dry heat-sensitive materials.
