In modern manufacturing and finishing industries, the demand for high-quality, efficient, and consistent painting solutions for door frames has led to the development of automatic paint spraying machines. These machines combine precision engineering, automation, and advanced spray technology to deliver superior coating quality while significantly increasing productivity and reducing labor costs. This article explores the features, benefits, technologies, and applications of door frame automatic paint spraying machines, supported by visual aids and video demonstrations to provide a comprehensive understanding.

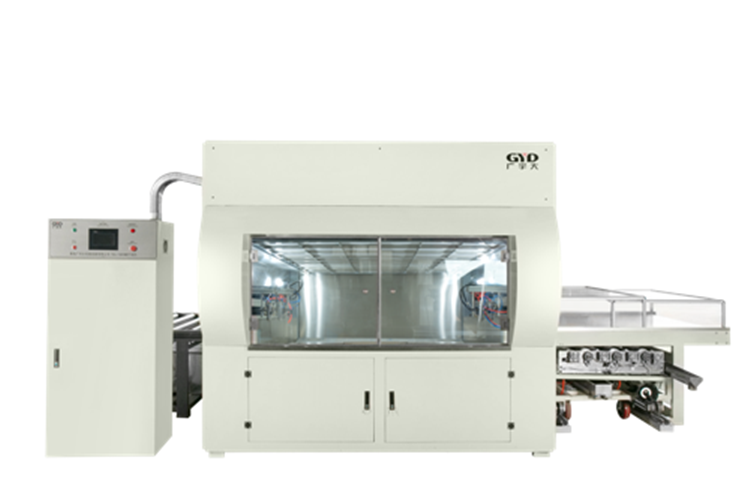

A door frame automatic paint spraying machine is an industrial device designed to apply paint coatings uniformly on door frames and related components with minimal human intervention. These machines use automated spray guns, conveyor systems, and sometimes robotic arms to ensure even coverage on all surfaces, including edges and hard-to-reach areas.
- Spray Guns: Multiple spray guns positioned to cover different angles of the door frame.
- Conveyor System: Moves door frames through the painting zone at controlled speeds.
- Control Panel: Touchscreen or digital interface to set parameters like paint volume, speed, and spray patterns.
- Ventilation and Exhaust System: Ensures a clean working environment by removing overspray and fumes.
- Rotating Mechanism: Some machines include rotation to paint all sides evenly.
Automatic machines can spray multiple doors per minute, far exceeding manual spraying speeds. For example, automated systems can spray 15-18 doors per minute, compared to 3-4 doors manually, increasing throughput by almost five times.
Automated spray guns maintain precise control over spray distance, angle, and paint volume, resulting in uniform coating thickness and smooth finishes without brush or roller marks.
By reducing paint waste and labor costs, these machines offer a cost-effective solution for small to large-scale door manufacturing operations.
Closed spray booths with exhaust systems reduce airborne paint particles and fumes, protecting workers and minimizing environmental impact.
These machines use a single arm equipped with multiple spray guns that oscillate to cover the door frame surfaces. They are ideal for small to medium-sized businesses seeking flexibility and quality.
Equipped with intelligent robotic arms capable of moving in five axes, these machines mimic the flexibility of a human arm to paint complex door frames and wood products uniformly.
These machines feature a linear conveyor system with fixed spray guns, suitable for high-volume production lines where door frames move continuously through the spray zone.
Designed for door trims and narrow panels, these machines use sensors to automatically recognize part size and position, adjusting spray parameters in real time for optimal coverage.
1. Loading: Door frames are loaded onto the conveyor or hanging hooks.
2. Positioning: Sensors detect the size and position of each frame.
3. Spraying: Multiple spray guns apply primer and topcoat layers simultaneously on all visible surfaces.
4. Rotation (if applicable): The frame may rotate 360 degrees to ensure full coverage.
5. Drying: Painted frames move to drying ovens or air-dry stations.
6. Unloading: Finished frames are removed for inspection or packaging.
- Multiple spray guns (4 to 6 or more) positioned for surface and edge spraying.
- Air-assisted or electrostatic spray technology for efficient paint atomization.
- Individual gun adjustment for precise control.
- Variable speed conveyors for flexible production rates.
- Rotating hooks or turntables for 360-degree coverage.
- Water-based (WB), solvent-based, UV, PU, NC, and other coatings.
- Position sensors to detect part dimensions.
- Programmable logic controllers (PLC) or touch panels for easy operation.
- Automatic adjustment of spray parameters based on part size.
- Pressurized spray booths with exhaust and filtration systems.
- Overspray recovery and paint mist control.
Besides door frames, these automatic paint spraying machines are also suitable for:
- Window frames and trims
- Furniture panels and cabinets
- Moldings and narrow wooden parts
- Picture frames and decorative profiles
- Regular cleaning of spray guns to prevent clogging.
- Calibration of sensors and conveyors to maintain accuracy.
- Monitoring paint viscosity and flow rates.
- Periodic inspection of exhaust and filtration systems.
Q1: What types of paint can be used with door frame automatic paint spraying machines?
A1: These machines support various paint types including water-based, solvent-based, UV, PU, and NC paints, depending on the model and spray gun specifications.
Q2: How does automation improve paint quality?
A2: Automation ensures consistent spray distance, angle, and paint volume, eliminating human error and producing uniform, high-quality finishes.
Q3: Can these machines handle different door frame sizes?
A3: Yes, many machines have adjustable conveyors and sensors to accommodate various sizes and automatically adjust spray parameters.
Q4: What is the typical production speed of these machines?
A4: Production speeds vary, but some machines can spray up to 15-18 doors per minute, significantly faster than manual spraying.
Q5: Are these machines suitable for small businesses?
A5: Yes, there are models designed for small to medium businesses with flexible features and scalable automation.
Door frame automatic paint spraying machines represent a significant advancement in the finishing industry, offering unmatched efficiency, quality, and environmental benefits. By integrating sophisticated spray technology, automation, and control systems, manufacturers can meet the growing demand for high-quality door finishes while optimizing production costs and safety.
