UV paint dryers are specialized devices that use ultraviolet (UV) light to cure or dry UV-sensitive paints, coatings, or inks almost instantly. This technology leverages photochemical reactions triggered by UV radiation to transform liquid coatings into solid films rapidly, enhancing production efficiency and finish quality in various industries.
UV curing is a photochemical process where high-intensity ultraviolet light initiates polymerization and cross-linking of photosensitive resins in the paint or coating. When exposed to UV light, the photoinitiators in the paint absorb the energy, causing the liquid resin to harden into a solid film within seconds. This process eliminates the need for traditional drying methods that rely on heat or solvents, making it faster and environmentally friendly.
1. Material Preparation: The substrate (e.g., paper, plastic, wood) is coated or printed with UV-sensitive paint or ink.
2. Conveyance to UV Zone: The coated substrate is transported via a conveyor system into the UV curing chamber.
3. UV Irradiation: The UV lamps emit light that penetrates the coating, activating photoinitiators and causing rapid polymerization.
4. Solidification: The coating transitions from liquid to solid almost instantly as the chemical reaction completes.
5. Finished Product: The cured product exits the machine, ready for further processing or packaging.
This process is highly efficient and suitable for high-speed production lines in printing, packaging, electronics, and wood finishing industries.

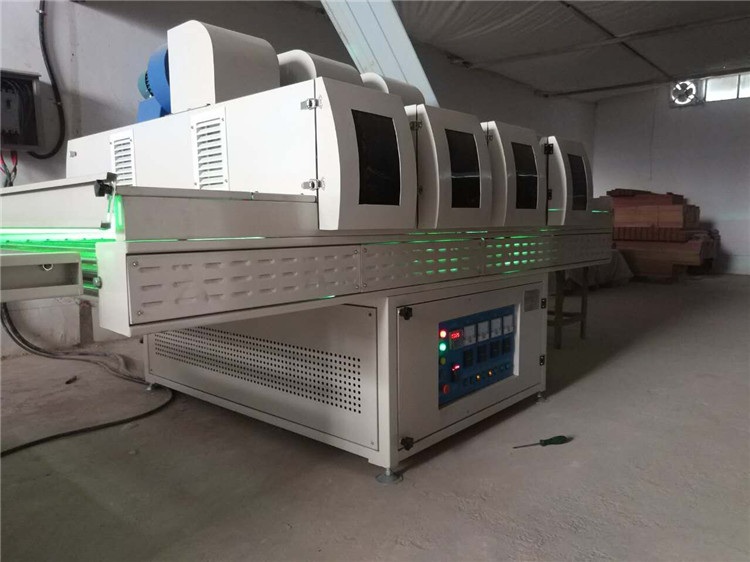

A common industrial model uses four high-power UV lamps arranged strategically to provide uniform curing on flat surfaces. It is ideal for drying UV coatings on panels, enhancing surface hardness and gloss while speeding up production.
- Working thickness: 2-80 mm
- Working widths: 620, 920, 1320 mm (optional)
- Conveyor speed: 0-20 m/min
This variant features three UV lamps and is designed for instant drying after UV paint application. It includes features like high-power exhaust fans for ventilation, prolonging lamp and equipment life.
UV LED dryers use ultraviolet light-emitting diodes instead of traditional mercury lamps. They offer significant energy savings, minimal heat emission, and longer lamp life (up to 40,000 hours). These dryers are suitable for heat-sensitive materials like fabrics and plastics.
- Instant Curing: UV paint dryers cure coatings within seconds, drastically reducing production time.
- Energy Efficiency: LED-based UV dryers consume less power, lowering operational costs and environmental impact.
- No Heat Damage: Minimal heat emission allows curing on heat-sensitive substrates without warping or damage.
- Environmentally Friendly: UV curing eliminates volatile organic compounds (VOCs) and reduces solvent use.
- High-Quality Finish: Rapid curing prevents dust contamination, resulting in smooth, durable, and glossy surfaces.
UV dryers are widely used in printing for instant drying of inks on paper, plastic films, and other substrates, enabling faster turnaround and high-resolution prints.
UV curing technology is applied to coat wood products, providing hard, scratch-resistant finishes that enhance durability and appearance.
UV paint dryers cure protective coatings and inks on electronic components and packaging materials, ensuring product protection and aesthetic appeal.
UV curing speeds up the drying of primers and topcoats in automotive painting lines, improving efficiency and reducing emissions.
1. Product Loading: Workpieces are placed on fixtures and moved along a conveyor.
2. Preheating: Ensures the substrate is dry before coating.
3. Electrostatic Dedusting: Removes dust particles to prevent defects.
4. Primer Application: Enhances adhesion on plastics before UV base coat.
5. UV Coating: Application of UV paint followed by immediate curing under UV lamps.
6. Final Inspection: Ensures coating quality and finish.
Recent developments include eco-friendly UV inks that cure efficiently without post-heating, reducing energy consumption. UV LED dryers further minimize environmental impact by lowering power usage and eliminating ozone generation typical of mercury lamps.
Q1: What materials can be cured using UV paint dryers?
A1: UV paint dryers can cure coatings on paper, plastics, wood, metals, and fabrics, especially those sensitive to heat.
Q2: How fast does UV curing occur?
A2: UV curing typically happens within seconds, significantly faster than conventional drying methods.
Q3: Are UV paint dryers energy efficient?
A3: Yes, especially UV LED dryers, which consume less power and have longer lamp life, reducing energy and maintenance costs.
Q4: Is UV curing environmentally friendly?
A4: Yes, UV curing reduces VOC emissions and solvent use, making it a cleaner alternative to traditional drying.
Q5: Can UV paint dryers damage heat-sensitive materials?
A5: No, UV curing emits minimal heat, making it safe for delicate substrates like plastics and fabrics.
