The automatic 2 roller bench model gluer is a specialized industrial machine designed to apply glue uniformly and efficiently on various materials such as paper, cardboard, panels, and more. This article explores the features, working principles, applications, and advantages of this machine, focusing on models like the OSAMA SBR-250 and similar equipment widely used in packaging, woodworking, and manufacturing industries.

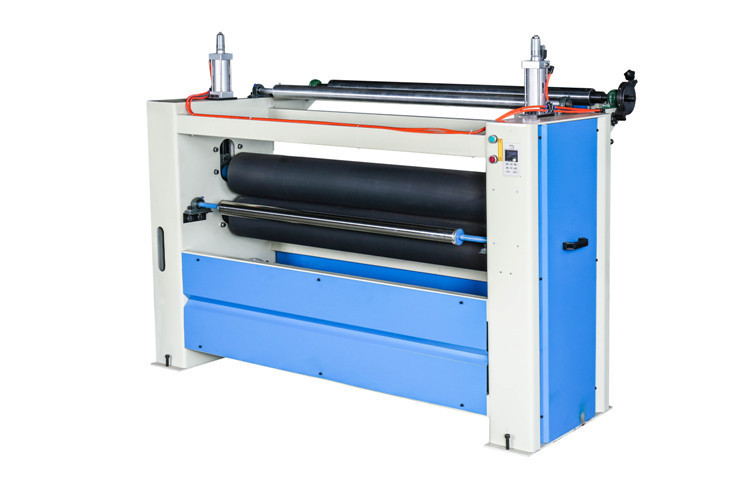

An automatic 2 roller bench model gluer is a compact yet powerful machine that uses two rollers to spread glue evenly on one or both sides of a material strip or panel. Unlike manual glue application methods, this machine automates the process, ensuring consistent glue thickness and coverage, improving productivity and product quality.
- Two Gluing Rollers: Each roller is coated with rubber and precision machined with grooves to control the glue film thickness according to requirements.
- Glue Trays: Separate glue trays feed each roller, allowing independent glue application on top, bottom, or both surfaces.
- Feed Mechanism: The material is fed through the rollers at a fixed or adjustable speed, typically around 18 meters per minute.
- Control System: Some models include PLC and touch screen interfaces for easy operation and adjustment of glue application parameters.
- Protection and Cleaning: Features like internal protection covers and water recovery tanks help maintain cleanliness and reduce glue waste.
The dual-roller system ensures an even layer of glue is applied, eliminating manual inconsistencies that can lead to weak bonding or excess glue waste.
Operators can choose to apply glue on one side or both sides of the material, adapting to different production needs such as laminating or panel bonding.
Automating the glue application process speeds up production lines, with fixed feed speeds around 18 m/min and the ability to handle varying widths from 400 mm to 1600 mm.
The design includes features that simplify cleaning at the end of shifts, such as detachable glue trays and water recovery tanks.
By reducing glue waste and labor costs associated with manual application, this machine offers a cost-effective solution for small to medium-sized operations.
Used extensively for gluing cardboard and paperboard in box making, ensuring strong and neat joints in packaging products.
Ideal for applying adhesive on wood panels, veneers, and laminates, improving the quality and durability of furniture and construction materials.
Can be adapted to glue fabrics, leather, and other flexible materials where uniform adhesive application is critical.
- Dual Roller System: Two rollers with independent glue trays.
- Working Width: Available from 400 mm up to 1600 mm.
- Feed Speed: Fixed at 18 m/min for consistent application.
- Roller Diameter: 185 mm rubber-coated rollers, resurfaced multiple times before replacement.
- Construction: Galvanized steel body with internal protection and water recovery.
- Optional Stand: Legs can be added to convert the bench-top model into a standalone unit.
- Suitable for paper, cardboard, cloth, and leather.
- Adjustable glue film thickness via scale wheel.
- Manual sheet removal after gluing.
- Optional extras based on customer requirements.
- Fill glue trays with the appropriate adhesive.
- Adjust roller grooves or settings to control glue thickness.
- Set feed speed and ensure material dimensions fit the machine specifications.
- Feed material strips or panels into the machine.
- The rollers apply glue uniformly on the designated surfaces.
- Collect glued pieces for subsequent processing like pressing or laminating.
- Clean glue trays and rollers after each shift.
- Check roller surfaces for wear and resurface or replace as needed.
- Inspect mechanical and electrical components regularly.
Q1: Can the automatic 2 roller bench gluer apply glue on both sides simultaneously?
A1: Yes, it can apply glue on one or both sides depending on the model and settings.
Q2: What types of glue are compatible with these machines?
A2: Typically, water-based, hot melt, and other industrial adhesives suited for paper, wood, and fabric can be used.
Q3: How do you adjust the glue thickness?
A3: Glue thickness is controlled by the roller grooves and pressure settings, often adjustable via a scale wheel or control panel.
Q4: What maintenance is required for the rollers?
A4: Rollers should be cleaned regularly and resurfaced or replaced after several uses to maintain glue application quality.
Q5: Can this machine be integrated into a larger production line?
A5: Yes, many models are designed to be stand-alone or integrated into laminating, pressing, or folding lines.
The automatic 2 roller bench model gluer is an indispensable tool for industries requiring precise and efficient glue application. Its dual roller system, ease of operation, and flexibility make it suitable for a broad range of materials and applications. By automating glue spreading, it enhances product quality, reduces waste, and increases production efficiency, making it a valuable investment for manufacturers.
