Painting cabinet doors is a transformative way to refresh kitchens, bathrooms, and other cabinetry without a full renovation. Achieving a professional, durable finish requires not only the right paint but also an effective cabinet door painting system. This comprehensive guide explores the best practices, equipment, and techniques for cabinet door painting systems, helping both DIY enthusiasts and professionals achieve flawless results.
A cabinet door painting system refers to the combination of tools, equipment, and processes designed to paint cabinet doors efficiently and with high quality. This system often includes specialized racks, spray booths, drying setups, and sometimes automated machinery to handle multiple doors simultaneously while ensuring even coverage on all sides.
- Efficiency: Allows painting multiple doors at once, reducing labor time.
- Quality: Ensures consistent, smooth finishes with fewer imperfections.
- Space-saving: Vertical drying racks and compact spray booths optimize workspace.
- Damage Prevention: Specialized hangers and racks prevent paint marring during drying.
- Versatility: Suitable for different door styles, including flat panels and J-Pull profiles.
Cabinet door painting racks are designed to hold doors securely during painting and drying. Vertical hanging racks like the PSDR Series use metal hangers to suspend doors, allowing painters to spray all sides without flipping the doors manually. These racks maximize drying capacity by spacing doors closely without contact, preventing smudges or damage.
- PSDR Cabinet Spray & Drying System: Uses heavy-duty metal hangers and a spinner assembly for easy rotation and control. It can hold up to 50 doors vertically, speeding up the painting and drying process while minimizing space requirements[4].
- Spray and Dry Racks Combo: Some systems combine rotating spray racks with dry racks to paint and store up to 48 cabinet doors painted on both sides simultaneously[8].

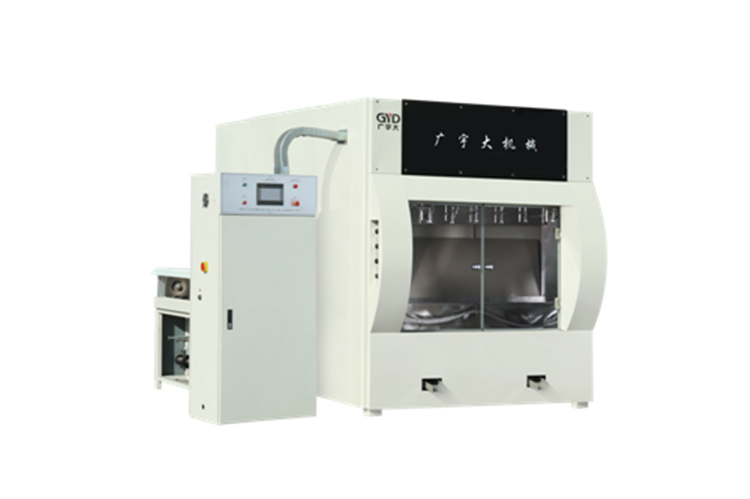

For commercial or high-volume operations, automated spray painting systems provide precision and speed. Cartesian spraying robots can coat flat surfaces and edges with polyurethane-based pigments, followed by UV curing ovens for durable finishes. These machines ensure consistent application and reduce human error[3].
Choosing the right paint and primer is crucial. Water-based and oil-based paints are common, with polyurethane coatings offering durability and resistance. Some systems use a multi-layer approach:
1. White UV coating with semi-curing under UV lamps.
2. Pigment application with polyurethane-based paint.
3. Final curing in ovens with Gallium and Mercury lamps.
4. Automatic sanding between coats for smooth finishes[3].
1. Remove Doors and Hardware: Disassemble cabinet doors and remove handles and hinges.
2. Clean Surfaces: Remove grease, dirt, and old finishes.
3. Sand Doors: Smooth surfaces to improve paint adhesion.
4. Apply Primer: Use a high-quality primer to seal the wood and enhance paint durability. For example, Dulux Renovation Range Primer is applied with an angled sash brush and roller for even coverage[5].
1. Cut In Edges: Use a sash brush to carefully paint edges and corners.
2. Roller Application: Apply paint with a microfiber roller for smooth, consistent coverage.
3. Lay Off: Lightly roll over painted sections with an unloaded roller to reduce texture.
4. Drying: Allow sufficient drying time (e.g., 4 hours between coats).
5. Second Coat: Apply at least two coats for full coverage and durability.
6. Clear Coat Finish: Apply two coats of clear protective finish for added resistance to wear[5].
- Hang doors on specialized hangers or hooks to spray both sides simultaneously.
- Use spray racks that allow rotation or flipping without removing doors.
- Dry doors vertically on racks to prevent contact marks.
- For DIY, simple hacks like using finish nails with wire nut standoffs can help paint both sides without damage[6].
- Use high-quality brushes and rollers to avoid brush marks.
- Maintain proper ventilation in the painting area.
- Control temperature and humidity to ensure paint cures correctly.
- Use UV curing ovens or drying racks to speed up drying without compromising quality.
- Avoid touching wet paint by using hangers and racks designed for cabinet doors.
Q1: Can I paint cabinet doors without a specialized painting system?
A1: Yes, but using a painting system improves efficiency, finish quality, and reduces damage risk. DIY methods exist but may require more time and care.
Q2: What type of paint is best for cabinet doors?
A2: Polyurethane-based paints and water-based acrylics are popular for durability and smooth finishes. Oil-based paints offer excellent adhesion but require longer drying times.
Q3: How long should I wait between coats?
A3: Typically, wait at least 4-8 hours between coats, depending on paint type and environmental conditions.
Q4: Can I use automated spray systems at home?
A4: Automated systems are usually for commercial use due to cost and space. Home users benefit more from manual spray guns and drying racks.
Q5: How do I avoid paint marks when drying cabinet doors?
A5: Use vertical drying racks with hangers that prevent doors from touching each other or surfaces, and ensure doors are fully dry before handling.
