Deburring machines play a crucial role in manufacturing by removing unwanted burrs—rough edges or protrusions—from metal, plastic, and composite parts. Burrs can occur during machining, casting, welding, or molding processes and must be removed to ensure product quality, safety, and functionality. This article explores the various types of deburr machines, their working principles, applications, and the latest technological advancements, providing a thorough understanding for engineers, manufacturers, and quality control professionals.
A deburr machine is a mechanical device designed to remove burrs from workpieces efficiently and consistently. The process improves surface finish, dimensional accuracy, and safety by eliminating sharp edges and rough surfaces that can cause injury or interfere with assembly.
Deburr machines typically use abrasive wheels, belts, brushes, tumblers, or robotic arms to smooth the edges of parts. For example, a rotary deburring machine rotates an abrasive tool around the workpiece to grind off burrs, while vibratory tumblers use abrasive media and vibration to polish multiple small parts simultaneously.
A notable example is the automated deburring machine developed for aluminum wheel hubs, which uses servo-driven actuators to move parts against a rotating deburring tool, ensuring consistent pressure and finish while minimizing operator exposure to hazards and dust[6].
Manual deburring tools include handheld grinders and abrasive wheels ideal for small-scale or precision work. Portable deburring machines mounted on casters can be moved around shops, offering flexibility for CNC milling or lathe operations[2].
These machines handle mass finishing by placing parts in a vibrating or tumbling container with abrasive media. They provide uniform finishing for small to medium-sized parts and are widely used for metal and plastic components[3][9].
Numerical Control (NC) deburring machines use computer programs to precisely control the deburring process, achieving high accuracy and repeatability. They are suited for complex shapes and fine burr removal on metals, plastics, and composites, commonly used in aerospace, automotive, and electronics industries[5].
Equipped with robotic arms capable of multi-axis movement, these machines automate precision deburring for complex 3D shapes and difficult angles. They enhance productivity and consistency in industries requiring high-quality finishes, such as automotive engine parts and aerospace components[5].

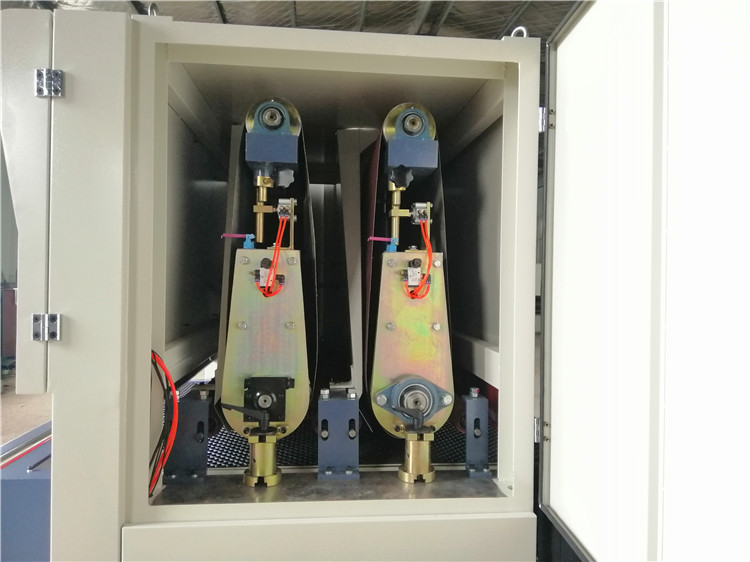

These machines use continuous abrasive belts to deburr flat or contoured surfaces efficiently. Wide-belt sanders are designed for high-volume production, delivering uniform finishes on larger workpieces[9].
Wet blasting and laser deburring machines are effective for removing welding burrs, while tumblers and vibratory machines handle heat treatment burrs[5].
Deburring machines are indispensable across various industries:
- Automotive: Deburring engine parts, body components, screws, and bolts to ensure safety and assembly precision.
- Aerospace: Finishing complex structural and engine parts requiring tight tolerances.
- Electronics: Removing burrs from small, delicate components to prevent electrical shorts and ensure fit.
- Jewelry: Polishing small ornaments and accessories for aesthetic quality.
- General Manufacturing: Mass finishing of metal and plastic parts to improve surface quality and reduce manual labor[5][9].
- Improved Safety: Automated machines reduce operator contact with sharp burrs and abrasive tools.
- Consistent Quality: Computer-controlled and robotic systems ensure uniform burr removal.
- Increased Efficiency: Machines can operate continuously, handling large volumes faster than manual methods.
- Versatility: Suitable for various materials including metals, plastics, and composites.
- Reduced Waste: Precise burr removal minimizes material loss and rework[6][5].
Robotic deburring systems with multi-axis arms enhance flexibility and precision, capable of handling irregular shapes and difficult angles without manual intervention[5].
This advanced method uses electrolysis to remove burrs from hard-to-reach areas without mechanical contact, preserving delicate surfaces[4].
Modern machines incorporate vacuum systems to capture dust and debris, improving workplace safety and cleanliness. Enclosed designs prevent operator injuries from abrasive wheels[6].
Q1: What materials can deburr machines handle?
A1: Deburr machines can process metals (steel, aluminum), plastics, and composite materials, depending on the machine type and tooling used.
Q2: How does robotic deburring improve manufacturing?
A2: Robotic deburring offers high precision, repeatability, and the ability to handle complex shapes automatically, increasing throughput and reducing labor costs.
Q3: What safety features are common in modern deburr machines?
A3: Enclosed working areas, dust extraction systems, and automated tool operation minimize operator exposure to hazards and airborne particles.
Q4: Can deburring machines be used for both small and large parts?
A4: Yes, machines like tumblers are ideal for small parts in bulk, while CNC and robotic machines can handle medium to large parts with complex geometries.
Q5: How does electrochemical deburring differ from mechanical methods?
A5: Electrochemical deburring uses a chemical process to remove burrs without physical contact, ideal for delicate or intricate parts where mechanical abrasion could cause damage.
