Light curing machines have become indispensable tools in various industries, from dentistry to electronics manufacturing. They utilize high-intensity light to rapidly cure or harden materials such as adhesives, coatings, and resins. This article explores the different types of light curing machines, their applications, technological advancements, and practical considerations for users.
A light curing machine is a device that emits specific wavelengths of light-commonly ultraviolet (UV) or visible light-to initiate a photochemical reaction that hardens or cures light-sensitive materials. This process is widely used in industries requiring fast, precise bonding or coating, such as dental restorations, electronics assembly, and industrial manufacturing.
Spot curing machines focus light on a small, precise area, making them ideal for applications requiring targeted curing. Modern spot curing systems offer high power outputs ranging from 4,000 to 20,000 mW/cm² at wavelengths between 320-390 nm. They come with various accessories like multi-pole light guides and rod lenses to expand the curing area when needed. Examples include Dymax's BlueWave® series, which provides reliable and efficient curing for small-scale applications.
Flood curing machines emit light over a larger area, suitable for curing coatings or adhesives on bigger surfaces. These systems use focused beam lamps with typical curing areas around 1" x 6". The intensity is lower than spot curing but covers more surface area, making them ideal for batch processing and conveyor systems.

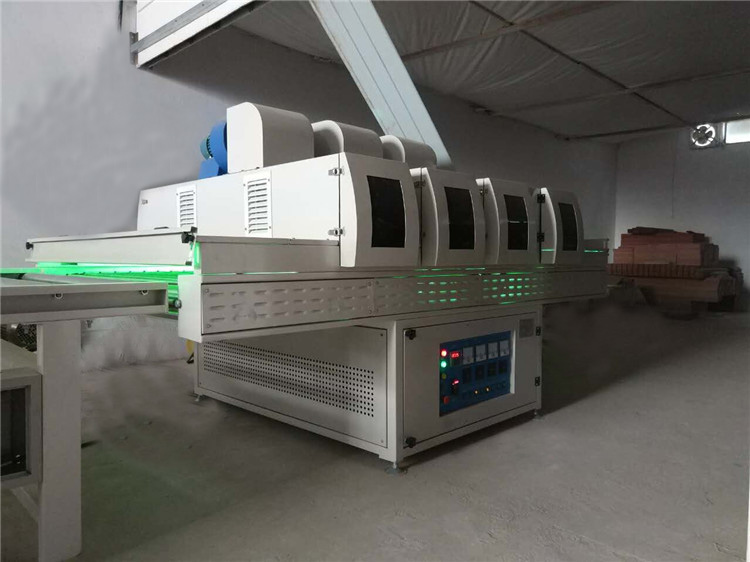

Conveyor curing systems integrate light curing into automated production lines. Products pass through a curing chamber where focused beam lamps or LED arrays cure materials continuously. These systems are highly customizable with adjustable belt speeds and lamp configurations. For example, the Dymax UVC-8 UV Curing Conveyor System offers up to 800 mW/cm² UVA intensity and adjustable belt speeds from 0.5 to 12 m/min.
Light curing machines employ various light sources, including:
- Quartz Tungsten Halogen Lamps: Traditional UV light source, less energy-efficient.
- Plasma Arc Lamps: Provide high intensity but generate significant heat.
- Laser Lights: Precise but costly.
- LED Lights: Energy-efficient, long-lasting, and stable output, increasingly popular in modern machines.
LED curing systems, such as the OmniCure LX500, offer multiple wavelengths (365 nm to 405 nm) with high irradiance and precise intensity control. They consume about 75% less energy than traditional UV arc lamps and require no additional cooling, enhancing operational efficiency.
Dental curing lights polymerize resin-based composites for fillings and restorations. LED curing units are preferred for their efficiency and minimal heat generation. They enable quick curing times and improved patient comfort.
UV curing is used for bonding components, coating printed circuit boards, and curing inks or varnishes. Conveyor curing systems optimize throughput in mass production.
Light curing machines cure adhesives in automotive and aerospace industries, harden coatings on medical devices, and even inactivate microorganisms through UV light exposure.
- Curing Area Size: Spot curing for small, precise areas; flood or conveyor for larger surfaces.
- Light Source Type: LED for energy efficiency and longevity; halogen or plasma for specific applications.
- Intensity and Wavelength: Match with the photoinitiator in the curing material.
- Automation Needs: Conveyor systems for high-volume production.
- Regularly check light intensity to ensure consistent curing.
- Use protective eyewear to avoid UV exposure.
- Maintain equipment according to manufacturer guidelines to prolong lifespan.
Q1: What materials can be cured with light curing machines?
A1: Common materials include adhesives, coatings, dental composites, inks, varnishes, and certain plastics.
Q2: How does LED curing compare to traditional UV lamps?
A2: LEDs are more energy-efficient, have longer lifespans, produce less heat, and offer stable light output.
Q3: Can light curing machines be used for sterilization?
A3: Yes, UV light can inactivate microorganisms, but machines must be designed specifically for sterilization purposes.
Q4: What factors affect curing quality?
A4: Light intensity, exposure time, distance from the material, and the type of photoinitiator in the material.
Q5: Are there portable light curing machines?
A5: Yes, handheld spot curing devices are common, especially in dental and small-scale applications.
