UV dryer machines have revolutionized the drying and curing processes across various industries by utilizing ultraviolet light to rapidly cure inks, coatings, adhesives, and other materials. This article explores the working principles, types, applications, benefits, and operational considerations of UV dryer machines, supported by illustrative images and videos to enhance understanding.
A UV dryer machine is a device that uses high-intensity ultraviolet (UV) light to instantly cure or dry coatings, inks, adhesives, and other photosensitive materials. Unlike traditional drying methods that rely on heat and evaporation, UV drying achieves rapid polymerization of the material's surface, transforming it from liquid to solid within seconds.
The core principle behind UV drying is photopolymerization. The UV light emitted from specialized lamps activates photoinitiators in the ink or coating, triggering a chemical reaction that causes the resin molecules to cross-link and solidify quickly.
- The base material (such as paper, plastic, or metal) coated with UV-sensitive ink or coating is conveyed into the UV curing zone.
- Upon exposure to UV light, the photoinitiators and resins undergo polymerization.
- The liquid coating rapidly changes to a solid state, completing the curing process almost instantaneously.
- The cured material exits the machine ready for further processing or use.
This process is highly efficient and environmentally friendly, producing no heat or ozone emissions in many modern machines[2][3][5].
- UV Lamps: High-intensity mercury or LED UV lamps that emit UV light at specific wavelengths.
- Conveyor System: Transports the material through the curing zone at adjustable speeds.
- Control Panel: Allows operators to set parameters such as lamp intensity, conveyor speed, and lamp height.
- Cooling System: Prevents overheating of lamps and materials.
- Safety Features: Includes visors and temperature controls to protect operators from UV exposure[1][6].

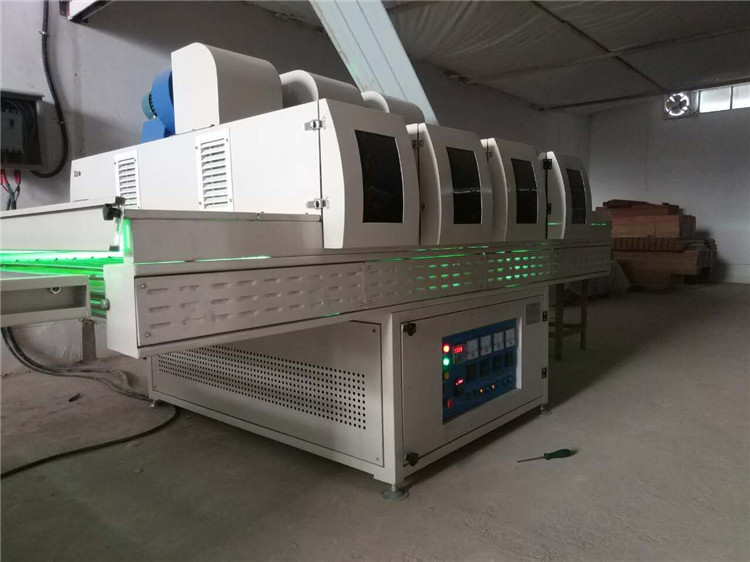

These machines feature multiple UV lamps to increase curing power and speed. The lamp height and conveying speed can be adjusted to optimize drying for different materials and thicknesses[1].
Ideal for high-speed production lines, these dryers use a conveyor belt to move materials under UV lamps continuously. They often include cooling segments to maintain material temperature and ensure quality[9].
Designed for integration into existing production lines, compact UV dryers have a small footprint and can be installed without moving large machinery[6][8].
- Printing Industry: Instant curing of UV inks on paper, plastic, and metal substrates.
- Packaging: Rapid drying of coatings and adhesives on packaging materials.
- Electronics: Curing of protective coatings and adhesives in circuit board manufacturing.
- Automotive: Drying of coatings and paints.
- Textiles: Fixing inks and coatings on fabrics.
- Fast Curing Speed: Cures materials in seconds, increasing production efficiency.
- Energy Efficiency: Consumes less energy compared to traditional heat drying methods.
- Environmental Benefits: No heat radiation or ozone generation; many use cold light sources.
- High Quality: Produces smooth, durable finishes without solvent evaporation.
- Space Saving: Compact designs allow easy integration into production lines[3][6][8].
- Conveyor Speed: Adjusted based on the drying requirements; faster speeds for thinner coatings.
- Lamp Height: Set according to material thickness and desired curing intensity.
- Lamp Power: Can be modulated to optimize curing without overheating[1][9].
- Ensure proper ventilation and correct rotation of extraction motors.
- Use visors to prevent UV exposure to operators.
- Regularly check temperature controls to avoid overheating[1].
- Regularly clean UV lamps and reflectors to maintain intensity.
- Replace lamps as per manufacturer recommendations.
- Inspect conveyor belts and mechanical parts for wear.
- Monitor cooling systems to prevent overheating.
Q1: What types of materials can be cured with UV dryer machines?
A1: UV dryers can cure inks, coatings, adhesives, and other photosensitive materials on substrates like paper, plastic, metal, and textiles.
Q2: How fast does UV curing occur?
A2: UV curing typically occurs within seconds, enabling high-speed production.
Q3: Are UV dryer machines energy efficient?
A3: Yes, they consume less energy than traditional heat dryers and often use cold light sources that produce minimal heat.
Q4: What safety measures are necessary when using UV dryers?
A4: Operators should use protective visors, ensure proper ventilation, and monitor temperature controls to avoid UV exposure and overheating.
Q5: Can UV dryers be integrated into existing production lines?
A5: Yes, many UV dryers have compact designs suitable for integration without major modifications.
