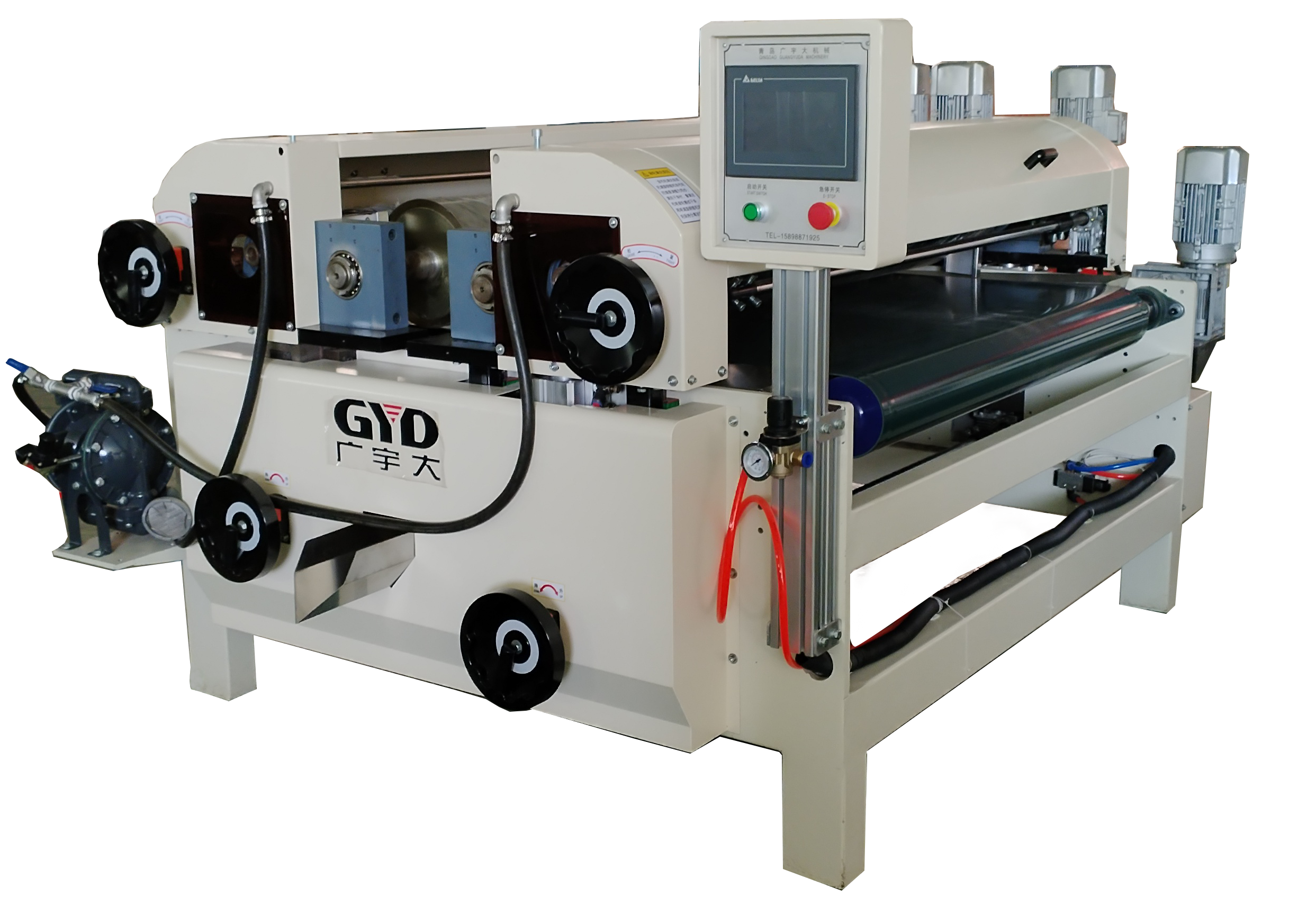

A UV roller coater, also referred to as a high-precision roll coating machine, is a dedicated finishing equipment widely used in furniture manufacturing, bamboo and wood crafts, flooring, wall panel industries. It takes its name from the strict speed synchronization required between its core components: the conveyor, the application roller, and the precision metering (doctor) roller. This synchronized control delivers highly consistent coating coverage, superior production throughput, and a marked reduction in paint consumption. For flat substrates including boards, cabinet doors, metal sheets and wooden venetian blinds, this equipment is gradually replacing conventional spray coating processes.Fast and efficient roll coaters are suitable for flat workpiece such as doors, flooring, and flat furniture panels. Accurate and uniform coating applied to ensure finishing with a great fullness with no color differences. Residual paint can be recovered and recycled to future use. Ideal for staining, primer, and top coating.

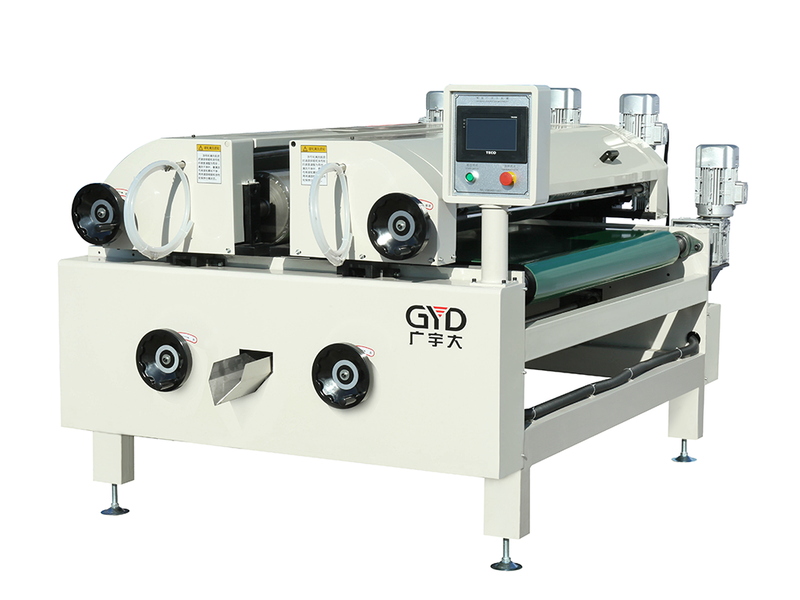

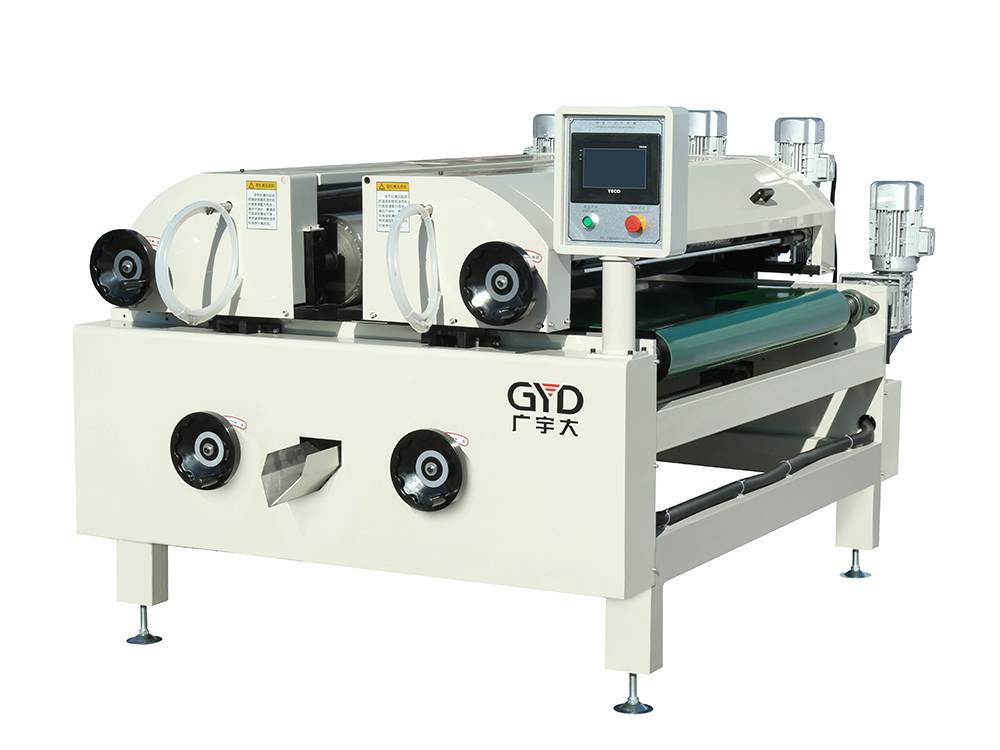

1300mm roller coater
Ensure smooth surface with plump color and zero chromatic difference.
Suitable to apply primer, top coating or staining on MDF, HDF, solid wood, and wood-plastic composite etc.

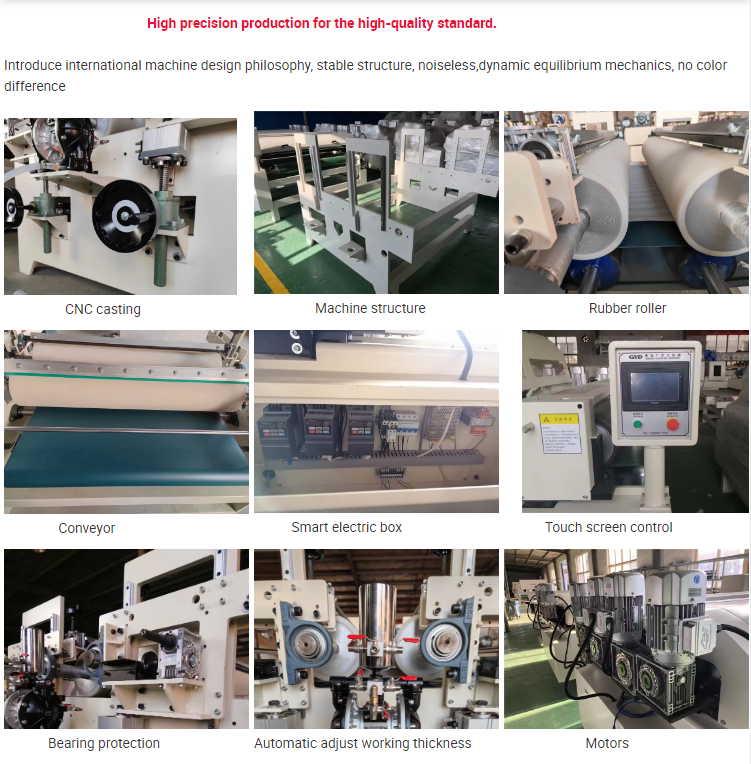

Excellent precision and flexibility achieved by independently adjustable speeds of the coating roller, doctor roller and conveyor each controlled by its own motor reducer, and frequency converter.
Dosing roller rotation direction can be clockwise or counter clockwise.
The robust casting design makes it easy to change the roller if needed.
Performance characteristics

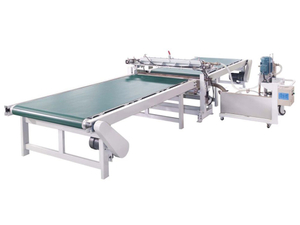

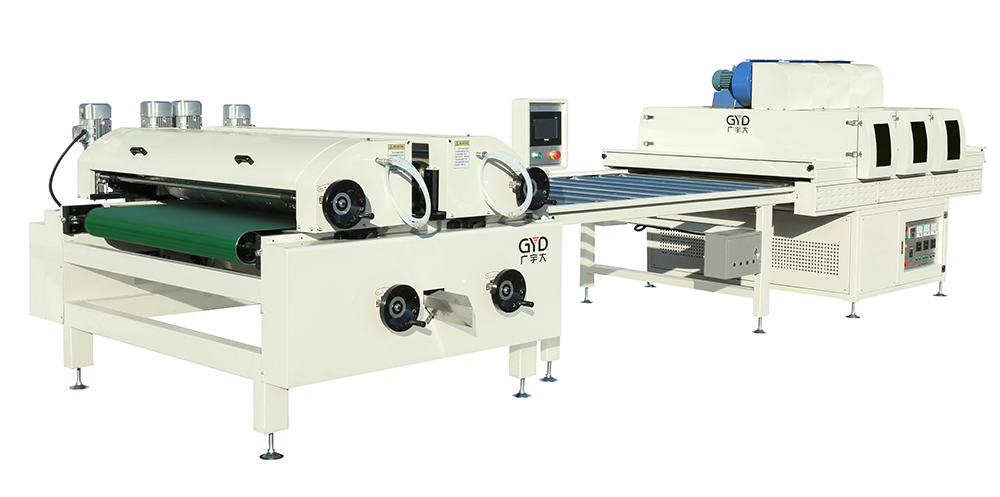

Roller coaters are coating equipment used on flat workpieces. The coating lacquer is rolled onto the surface in a uniform manner with few coating lacquer wasted. With high feeding speed, roller coating machine can achieve high productivity, and can be paired with a brushing machine, coating dryer and a conveyor for automation.
Technical parameters
Model | GYGT1300/1000 / 600 |
Processing speed | 4-20m/min |
Processing width | 300-1250mm |
Processing length | 300-2500mm |
Processing thickness | 3-80mm |
Total power | 6.8kw |
