Oriented Strand Board (OSB) and Structural Insulated Panels (SIPs) have become essential materials in modern construction due to their strength, durability, and insulation properties. The production of OSB and SIP boards relies heavily on advanced machinery designed to optimize efficiency, quality, and cost-effectiveness. This article explores the OSB SIP Board Producing Machine, detailing its production process, machinery components, technological innovations, and practical applications. We will also provide multimedia resources such as images and videos to illustrate the production line and machinery in action.
OSB is a type of engineered wood panel made by compressing layers of wood strands (flakes) with adhesives in specific orientations. It is widely used in flooring, walls, and roofing due to its strength and affordability.
SIPs are composite panels consisting of an insulating foam core sandwiched between two structural facings, typically OSB boards. SIPs provide superior insulation and structural integrity, making them popular for energy-efficient building construction.
The OSB production process involves several critical stages:
- Log Peeling and Flaking: Logs are peeled and chipped into strands or flakes, which are then screened for size consistency.
- Drying: The wood flakes are dried to optimal moisture content.
- Screening: Flakes are sorted to remove fines and oversized pieces.
- Gluing: Adhesives are applied to the flakes to ensure bonding.
- Spreading: The glued flakes are spread into mats with oriented layers.
- Hot Press Molding: The mats are compressed under heat to form rigid panels.
- Post-Treatment: Panels are trimmed, sanded, and inspected.
- Warehousing: Finished OSB boards are stored for shipment.
Different wood species affect OSB properties. Woods with lower density and fine fibers, such as certain hardwoods, yield better physical properties. Needle-shaped flakes improve sizing and board performance.
SIP production integrates OSB boards with foam cores using specialized machinery:
- Layering: An OSB board is coated with polyurethane glue.
- Core Placement: An insulating foam core (EPS or GPS) is positioned on the glued OSB.
- Top Layer Application: A second OSB board is glued on top, forming a sandwich.
- Cold Pressing: The layered structure is pressed to cure the glue and bond the layers.
- Cutting and Finishing: Panels are cut to size and grooved for assembly.
Polyurethane glue, either single or two-component, is used for strong adhesion. Precise glue spreading and curing are crucial for panel strength and durability.
Modern OSB SIP producing machines incorporate:
- Glue Spreaders: Apply uniform adhesive layers (120-400 g/㎡).
- High Precision Pumps: For accurate glue flow control.
- Cold Press Machines: For curing and bonding sandwich panels.

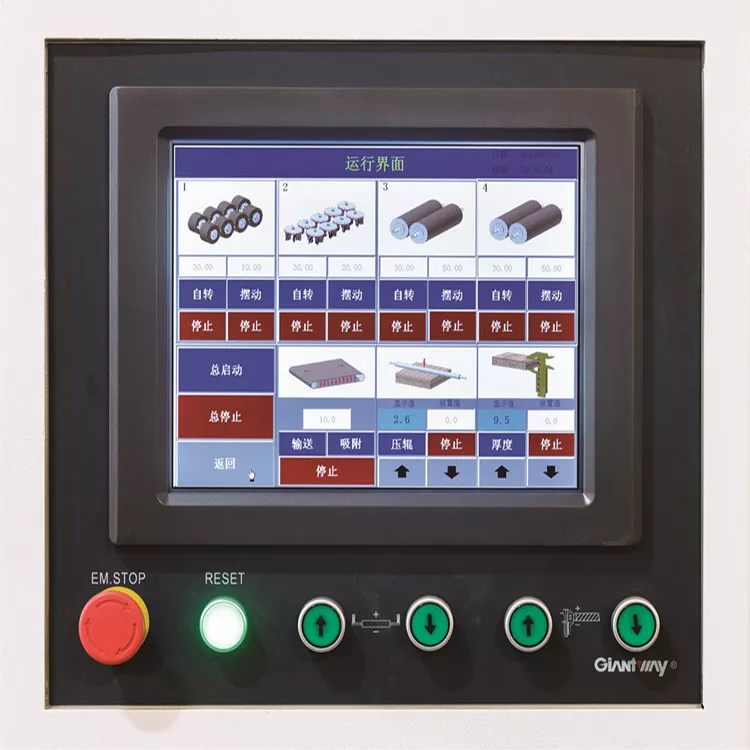

- PLC Control Systems: Siemens or equivalent with touch screen interfaces for easy operation.
- Automated Conveyors and Gantry Loaders: For efficient material handling.
- Cutting and Grooving Machines: Such as the FPS-900 SIP panel saw with automatic measurement and positioning.
Automated lines reduce labor needs to 2-4 workers and increase throughput up to 12 meters per minute, optimizing production capacity and minimizing waste.
- Residential and commercial building walls, roofs, and floors.
- Energy-efficient insulated panels for sustainable architecture.
- Modular building components and prefabricated structures.
- Regular maintenance schedules for pumps, presses, and conveyors.
- Technical training for operators to maximize machine uptime.
- Quick-response troubleshooting services to minimize downtime.
Q1: What types of wood are best for OSB production?
A1: Woods with low density, fine fibers, and good toughness such as certain hardwoods are preferred for better board properties.
Q2: How does the glue type affect SIP board quality?
A2: Single or two-component polyurethane glues provide strong adhesion; the choice depends on production speed and environmental conditions.
Q3: Can the OSB SIP producing machine be customized?
A3: Yes, machines can be tailored to production scale, panel size, and automation level.
Q4: What is the typical production speed of an OSB SIP line?
A4: Up to 12 meters per minute, depending on machine configuration and panel thickness.
Q5: How many workers are needed to operate the SIP board production line?
A5: Typically 2-4 workers, with further labor savings possible through automation.
The OSB SIP Board Producing Machine represents a significant advancement in engineered wood panel manufacturing. By combining efficient production processes, advanced glue technologies, and automation, manufacturers can produce high-quality OSB and SIP panels that meet modern construction demands. Visual and video resources further enhance understanding of the machinery and production flow, making this technology accessible and practical for businesses aiming to expand in the wood panel industry.
