For manufacturers of wood mouldings, trims, profiles, and similar linear products, a moulding sprayer can replace slow, inconsistent manual painting with a faster and more controlled automatic spray painting process. GYD Finishing develops automated surface-finishing equipment for wood, building materials, glass, metal, and other substrates, drawing on more than 20 years of industry experience.
In one recent customer application, the manufacturer used manual spraying for mouldings. The process required several passes to achieve an even finish, consumed excessive paint, created uncontrolled overspray, and exposed workers to a demanding coating environment. GYD Finishing recommended an automatic moulding spray machine using air spraying technology. The result was a reported production speed of 8–15 metres per minute, approximately 30% lower paint consumption, and productivity equivalent to replacing two manual spray stations with one machine.
Manual spray painting may appear flexible at low production volumes, but it becomes difficult to control as demand increases.
A moulding can have several faces, edges, grooves, and profile transitions. Operators must constantly adjust gun angle, distance, speed, and overlap. Even experienced painters may produce variation between batches or operators.
Repeated passes increase:
- Paint consumption
- Cycle time
- Drying requirements
- Rework and inspection costs
- Operator fatigue
During manual spraying, paint particles that miss the workpiece can disperse into the surrounding area. This creates both material waste and additional cleaning work. The U.S. Environmental Protection Agency notes that conventional air spraying can have relatively low transfer efficiency and generate significant overspray, while proper equipment selection and operator training can improve paint utilization.
Manual coating requires skilled operators throughout the production shift. A company may also need additional workers for:
- Part handling
- Masking
- Inspection
- Touch-up
- Booth cleaning
- Paint preparation
This makes production capacity closely dependent on labour availability and operator consistency.
Spray application can create exposure to paint mist, solvents, and other coating-related substances. Workplace controls, ventilation, personal protective equipment, training, and local regulations remain essential. Automation does not remove the need for a compliant spray booth or safe operating procedures; it helps create a more controlled and repeatable process.

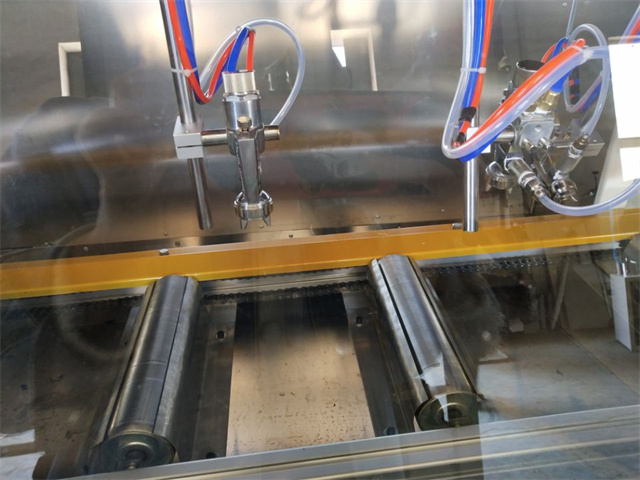

GYD Finishing's solution is designed for continuous coating of linear workpieces such as mouldings, profiles, trims, and similar components.
The system uses air spray atomization to create a fine coating pattern. Depending on the configuration, spray units can be arranged to coat multiple faces during one pass. For suitable profiles, the top and side surfaces can be sprayed simultaneously, reducing the need to rotate or respray the part manually.
1. Loading: Mouldings are placed onto the feeding or conveying system.
2. Positioning: The workpiece is guided through the spray zone at a controlled speed.
3. Multi-direction spraying: Spray guns apply coating to the required surfaces and profile areas.
4. Overspray collection: The spray chamber and filtration system collect overspray in a concentrated area.
5. Drying or curing: The coated product moves to the appropriate drying or UV curing section, depending on the coating system.
6. Inspection and unloading: Operators check the finish and transfer the finished products for the next process.
This arrangement allows the coating process to move from operator-dependent spraying toward parameter-controlled production.
The customer application achieved a reported operating speed of 8–15 metres per minute. For high-volume moulding production, continuous conveying can substantially reduce idle time between parts.
Actual speed should be selected after testing:
- Profile dimensions
- Coating viscosity
- Required wet-film thickness
- Number of spray passes
- Drying time
- Surface quality requirements
A faster line is not automatically better if it compromises coverage or curing. The correct target is the highest speed that consistently meets the customer's finish specification.
An automatic system helps standardize the variables that most strongly influence spray quality:
- Gun-to-part distance
- Spray angle
- Conveyor speed
- Spray pressure
- Paint flow
- Spray pattern
- Overlap between passes
The EPA also emphasizes that gun position, movement, triggering, and overlap affect both coating quality and emissions.
GYD Finishing's customer reported approximately 30% paint savings after moving from manual spraying to automatic moulding spraying.
Paint savings may result from:
- More stable gun movement
- Controlled paint flow
- Reduced duplicate spraying
- Better profile alignment
- Less touch-up
- More concentrated overspray collection
The exact reduction should be validated through a before-and-after production audit. A useful calculation is:
Paint saving percentage = (Manual consumption − Automatic consumption) ÷ Manual consumption × 100
For reliable comparison, measure both processes under similar conditions, including the same coating, profile, finish standard, and production volume.
According to the customer, one machine delivered productivity comparable to two manual spray operators or stations. This does not mean a fully unmanned operation. Operators may still be required for loading, quality control, paint preparation, maintenance, and safety checks.
However, automation can shift labour from repetitive spraying to higher-value activities such as:
- Process monitoring
- Quality inspection
- Preventive maintenance
- Production planning
- Material management
Uncontrolled overspray can contaminate nearby surfaces and increase cleaning time. A properly designed spray chamber, airflow arrangement, and filtration system can concentrate overspray and simplify routine maintenance.
The EPA states that effective booth filtration and airflow contribute to finish quality, overspray removal, and safer spray operations.
| Evaluation factor | Manual spray painting | Automatic moulding sprayer |
|---|---|---|
| Production speed | Depends on operator | Controlled by conveyor and settings |
| Coating consistency | Can vary between operators | More repeatable |
| Multi-face coverage | Often requires repositioning | Can spray multiple directions in one pass |
| Paint consumption | Higher risk of overspray and rework | Potentially lower through controlled application |
| Labour requirement | High | Lower for repetitive spraying |
| Overspray management | Often dispersed | Collected in a dedicated spray area |
| Product changeover | Flexible but operator-dependent | Requires parameter adjustment and cleaning |
| Process data | Limited | More suitable for standardization and monitoring |
Expert perspective: Manual spraying is still practical for prototypes, irregular products, and very small batches. For repeatable mouldings and continuous production, automation usually provides better control over throughput, quality, and operating cost.
Selecting a machine should begin with the product and coating—not with a headline speed.
Prepare representative samples covering:
- Minimum and maximum width
- Minimum and maximum height
- Profile complexity
- Length variation
- Material type
- Surface porosity
- Existing primer or sealer
A machine configured for flat trims may not produce the same result on deep decorative profiles.
Discuss the following with the equipment supplier:
- Water-based or solvent-based coating
- Viscosity range
- One-component or two-component coating
- Required film thickness
- Flash-off time
- Drying or curing method
- Cleaning solvent or cleaning procedure
A practical factory acceptance test should evaluate:
1. Surface coverage
2. Edge and groove performance
3. Finish uniformity
4. Paint consumption per metre
5. Maximum stable line speed
6. Changeover time
7. Filter loading and cleaning
8. Finished-part curing
A documented trial is more valuable than a general claim because it connects machine performance to the customer's actual product.
The purchase price is only one part of the investment. Also consider:
- Paint and solvent savings
- Labour reduction
- Compressed-air consumption
- Electricity
- Filters and consumables
- Downtime
- Maintenance
- Training
- Integration with drying or UV curing
A basic payback model is:
Annual benefit = paint savings + labour savings + recovered production value − additional operating costs
Estimated payback period = machine investment ÷ annual benefit
Even a high-quality machine requires disciplined operation.
- Inspect spray nozzles and air caps
- Check coating viscosity
- Confirm paint pressure and air pressure
- Verify conveyor alignment
- Inspect filters and airflow
- Clean the spray chamber
- Check emergency stops and interlocks
- Record defects and paint consumption
Use a small set of documented parameters for each product family. Store settings for conveyor speed, spray pattern, paint flow, and air pressure. When a defect appears, change one variable at a time and record the result.
This approach reduces trial-and-error adjustments and makes the process easier to transfer between shifts.
GYD Finishing is not limited to one spray machine. The company develops and manufactures equipment for complete surface-treatment applications, including:
- Automatic spray painting machines
- Roll coating machines
- UV drying equipment
- Sanding machines
- Automated coating production lines
This broader capability is important when a customer needs more than an isolated machine. A complete line may require feeding, sanding, priming, spraying, drying, inspection, stacking, and data control.
With more than 20 years of industry experience, GYD Finishing can work with customers to adapt equipment to the substrate, coating, production volume, and available factory space.
It is primarily suitable for linear products such as wood mouldings, trims, profiles, frames, and decorative components. The final configuration depends on the product's dimensions, geometry, coating, and required finish.
Yes, the machine can be configured for multi-direction spraying, allowing suitable mouldings to receive top and side coverage in one continuous pass. Deep grooves or highly irregular profiles may require additional testing.
The customer application reported 8–15 metres per minute. The practical speed for a specific project depends on coating properties, profile shape, film thickness, finish standard, and drying capacity.
The customer reported approximately 30% lower paint consumption. This is not a universal guaranteed figure; savings must be confirmed through a controlled comparison using the same coating and product conditions.
No. Operators may still manage loading, coating preparation, inspections, cleaning, maintenance, and safety procedures. Automation mainly reduces repetitive manual spraying and improves process consistency.
Not necessarily. Air spraying is versatile, but coating viscosity, solids content, drying behaviour, and regulatory requirements must be assessed before final equipment selection. A production trial is recommended.
Yes. GYD Finishing can integrate spraying with sanding, roll coating, UV drying, and other automated surface-finishing equipment according to the required process.
If your factory is experiencing high paint consumption, uneven coverage, low spraying speed, excessive overspray, or rising labour costs, an automatic moulding sprayer may provide a practical improvement.
Send GYD Finishing the following information:
- Product drawings or sample photos
- Dimensions and profile geometry
- Substrate material
- Coating type
- Required finish
- Target production volume
- Available factory space
GYD Finishing can then recommend a suitable spraying configuration, conduct sample testing, and develop a customized surface-finishing solution.
Contact GYD Finishing to discuss your moulding spray application and request a production evaluation.
