Comprehensive Guide to Roller Coating Machines: Technology, Applications, and Maintenance

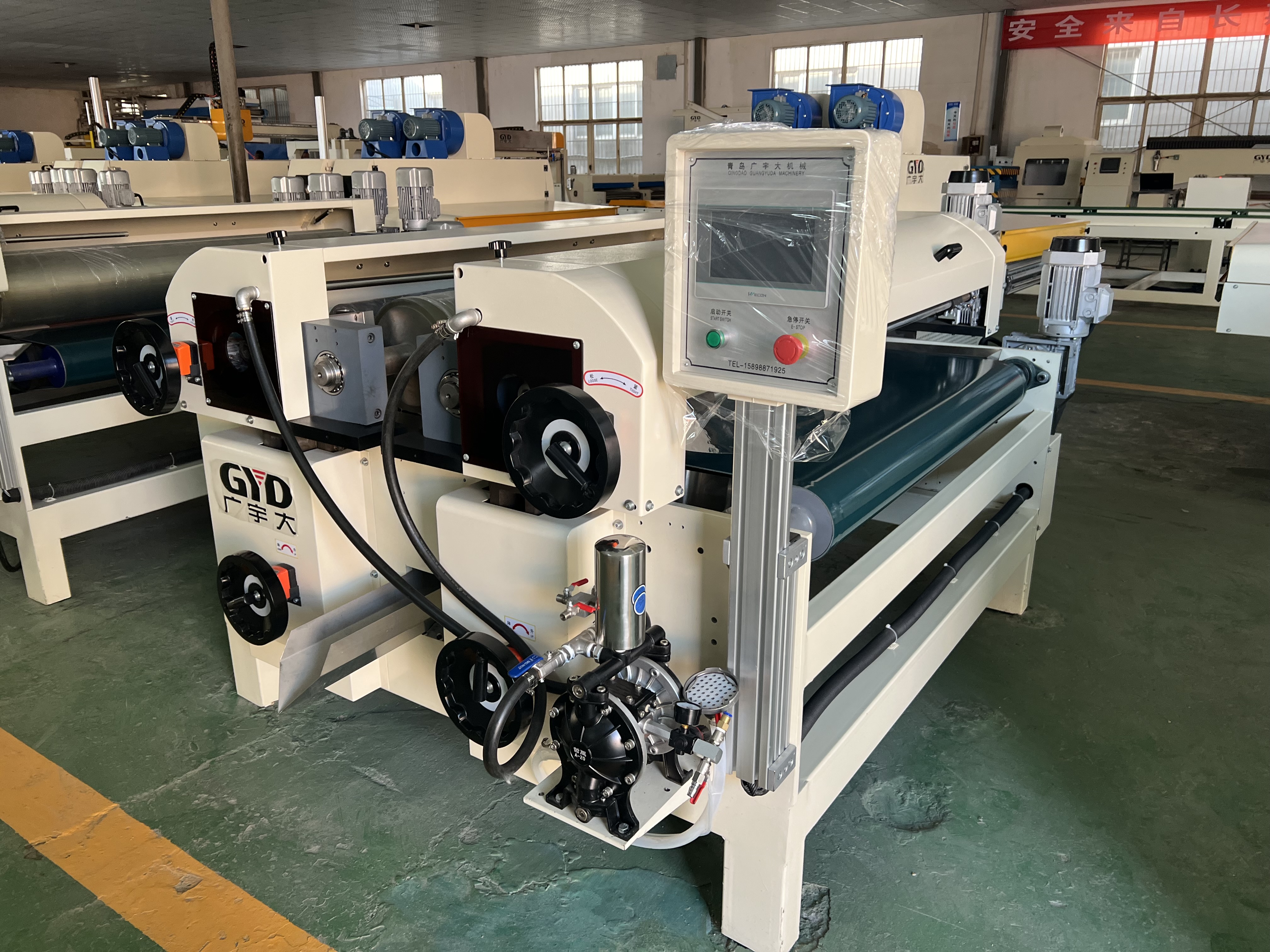

Roller coating machines are precision industrial systems designed to apply uniform liquid coatings across flat or cylindrical substrates like metal sheets, plastics, or wood. These machines combine efficiency, consistency, and adaptability, making them indispensable in industries ranging from automotive manufacturing to packaging. Below, we explore their working principles, types, key components, and best practices for operation.
Roller coaters transfer coatings via rotating rollers that split the liquid film between the substrate and the roller surface. Key mechanisms include:
- Film Splitting: Coating material divides between the roller and substrate, ensuring controlled thickness.
- Adjustable Roller Gaps: Pressure and spacing between rollers (e.g., coating, metering, and backup rollers) regulate coating deposition.
- Reverse vs. Synchronized Modes: Reverse systems rotate rollers opposite to substrate movement for thicker coatings, while synchronized modes align directions for precision.
Suggested Visual: *Diagram illustrating film splitting and roller alignment in reverse/synchronized modes.*
Video Example: *Watch a video demonstrating the difference between reverse and synchronized roller coating systems.*
| Type | Key Features | Applications |
|---|---|---|
| Doctor Blade | Scraper-controlled thickness; ideal for high-viscosity materials. | Paper, film, and adhesive coatings. |
| Gravure | Engraved rollers for precise patterns; adjustable speed. | Packaging, electronics. |
| Reverse Roller | Thicker coatings via counter-rotating rollers. | Metal sheets, automotive panels. |
| Open Roller | Exposed paint reservoir; simple maintenance. | Wood, textiles. |
Suggested Visual: *Comparison table with images of each roller type.*
Interactive Tool: *Use an online calculator to determine the best roller type based on material viscosity and desired coating thickness.*
1. Rollers:
- Coating rollers transfer material, while pressure rollers ensure adhesion.
- Metering rollers control thickness via gap adjustments.
2. Scraper Blades: Remove excess coating for uniformity.
3. Fluid Pumps & Reservoirs: Maintain consistent material supply.
4. Conveyors: Stabilize substrate movement during coating.
Suggested Video: *Animation of a roller coater in operation, highlighting component interactions.*
3D Model: *Explore a 3D model of a roller coating machine to visualize component placement.*
- Metal Fabrication: Coating coils and sheets with primers or anti-corrosive layers.
- Packaging: Applying adhesive or barrier coatings to films.
- Woodworking: Uniform varnish or stain application.
- Textiles: Coating fabrics for waterproofing or UV resistance.

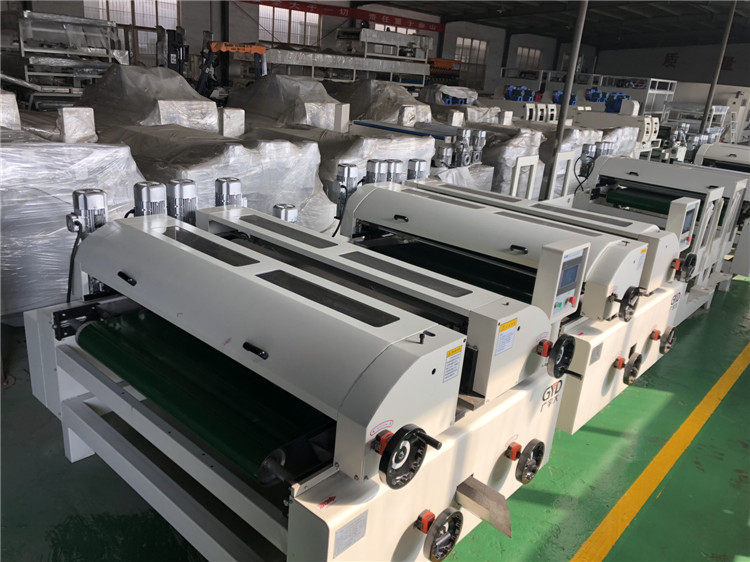

Suggested Visual: *Photo gallery of roller coaters in factory settings.*
Case Study: *Read a case study on how a textile manufacturer improved production efficiency with roller coating.*
Calibration Steps:
1. Align rollers to prevent uneven coatings.
2. Adjust roller speed and pressure based on material viscosity.
3. Test-run with sample substrates to verify settings.
Common Issues & Solutions:
| Problem | Cause | Solution |
|---|---|---|
| Uneven Coating | Misaligned rollers | Recalibrate roller gaps. |
| Adhesion Failure | Incorrect viscosity | Adjust coating viscosity to 40–150s. |
| Material Buildup | Poor scraper maintenance | Clean rollers regularly. |
Suggested Visual: *Step-by-step maintenance tutorial video.*
Maintenance Checklist: *Download a printable checklist for routine maintenance tasks.*
- Automated Systems: Integration with AI for real-time monitoring and adjustments.
- Sustainable Coatings: Development of eco-friendly materials for reduced environmental impact.
- Nanotechnology: Enhancing coating properties with nanomaterials for improved durability.
Suggested Video: *Watch a presentation on the future of roller coating technology.*
Research Paper: *Access a research paper discussing the potential of nanotechnology in coatings.*
- Chemical Handling: Ensure proper ventilation and protective gear when handling coating materials.
- Machine Guarding: Install safety guards to prevent accidents during operation.
- Training Programs: Provide comprehensive training for operators on machine operation and safety protocols.
Suggested Visual: *Infographic highlighting key safety measures.*
Safety Manual: *Download a safety manual for roller coating machines.*
1. What factors affect coating thickness?
Coating thickness depends on roller speed, gap settings, and material viscosity.
2. Can roller coaters handle high-viscosity materials?
Yes, doctor blade systems excel with viscous coatings like adhesives.
3. How do reverse roller coaters differ from synchronized systems?
Reverse coaters apply thicker layers by rotating rollers against substrate movement, while synchronized systems align directions for precision.
4. What industries benefit most from gravure roller coating?
Gravure systems are ideal for packaging and electronics due to their precision patterning.
5. How often should rollers be replaced?
Replace rollers when wear causes uneven coatings or defects.
6. What are the advantages of using automated roller coating systems?
Automated systems offer improved consistency, reduced labor costs, and enhanced safety through real-time monitoring.
