Introduction to UV Drying Equipment
Ultraviolet (UV) drying equipment has revolutionized the way industries cure and dry coatings, inks, adhesives, and other materials. Utilizing UV light to initiate rapid chemical reactions, these systems enable instant curing or drying, significantly enhancing production efficiency and product quality. This article explores the principles, types, applications, and benefits of UV drying equipment, supported by detailed explanations and visual aids.

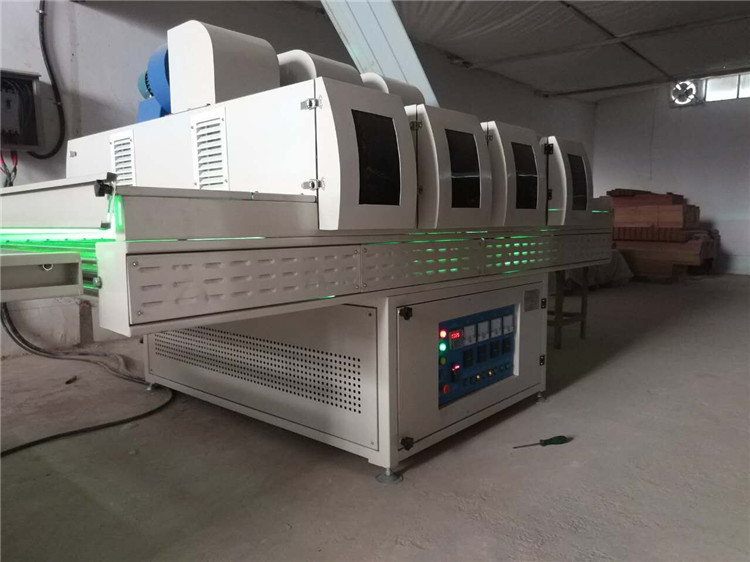

UV drying equipment operates by exposing a coated or printed substrate to ultraviolet radiation. The key process involves photoinitiators in the ink or coating reacting to UV light, triggering polymerization and cross-linking that transform liquid coatings into solid films almost instantly. This rapid curing process occurs as the substrate moves through the UV curing area on a conveyor system.
- The base material (e.g., paper, plastic, wood) is transported into the UV curing zone.
- The uncured coating layer is irradiated by UV light.
- Photochemical reactions solidify the coating within seconds.
- The cured product exits the system ready for further processing or packaging.
This process eliminates long drying times associated with conventional heat drying methods, increasing throughput and reducing energy consumption.
Traditional UV curing systems use high-intensity mercury vapor lamps that emit broad-spectrum UV light. These lamps require warm-up time and generate some heat during operation but provide strong curing power suitable for various industrial applications.
Recent advancements have introduced UV LED curing technology, which offers several advantages:
- Instant on/off capability without warm-up time.
- Lower energy consumption and heat generation.
- Compact design allowing integration into smaller production lines.
- Longer lamp life and environmentally friendly operation without mercury.
UV LED systems are increasingly favored for applications requiring precise control and energy efficiency.
Some drying equipment combines UV and infrared (IR) technologies to optimize curing and drying processes. Infrared emitters provide contactless heat tailored to the substrate, complementing UV curing by enhancing coating hardness and surface finish.
UV drying is widely used for curing coatings on metals, plastics, glass, wood, and ceramics. The technology ensures scratch-resistant, high-gloss, and durable finishes in industries such as automotive, electronics, and musical instruments.
UV curing enables rapid drying of inks and varnishes on various substrates, including paper, plastic films, and tinplate. This accelerates printing processes and improves print quality without smudging or solvent emissions.
Instant curing of adhesives with UV light improves assembly line speeds in electronics, packaging, and automotive manufacturing, providing strong bonds without heat damage to sensitive components.
UV drying equipment is used to cure coatings and adhesives in medical devices, ensuring biocompatibility and sterilization without chemical residues.
- Speed: Curing times are reduced from minutes or hours to seconds.
- Energy Efficiency: UV LED systems consume up to 50% less energy than traditional lamps.
- Environmental Benefits: UV curing is solvent-free, producing no volatile organic compounds (VOCs) or ozone.
- Quality: Produces hard, durable, and scratch-resistant surfaces with consistent curing.
- Compact Design: Equipment can be integrated into existing production lines without major modifications.
Adjusting conveyor speed controls exposure time to UV light, affecting curing depth and quality. Lamp height must be optimized based on substrate thickness and coating requirements to achieve uniform curing.
Proper ventilation removes heat and ozone generated during curing, while cooling modules protect sensitive components and maintain lamp performance.
Q1: What materials can be cured using UV drying equipment?
A1: UV drying can cure coatings, inks, adhesives on substrates such as wood, glass, metal, plastic, ceramics, and paper.
Q2: How does UV LED curing differ from traditional UV curing?
A2: UV LED curing uses solid-state LEDs that provide instant on/off, lower energy use, less heat, and longer lamp life compared to mercury vapor lamps.
Q3: Is UV drying environmentally friendly?
A3: Yes, UV curing is solvent-free, produces no VOCs or ozone, and reduces energy consumption, making it an eco-friendly option.
Q4: Can UV drying equipment be used for 3D objects?
A4: Yes, UV curing systems can be designed to cure coatings on complex 3D shapes using multiple lamps or diffuse UV LED light.
Q5: What industries benefit most from UV drying technology?
A5: Automotive, electronics, printing, packaging, medical device manufacturing, wood coatings, and musical instruments industries benefit significantly.
UV drying equipment represents a cutting-edge solution for rapid, efficient, and environmentally friendly curing and drying processes across diverse industries. With ongoing innovations such as UV LED technology and hybrid curing systems, manufacturers can achieve superior product quality, reduced cycle times, and lower operational costs.
