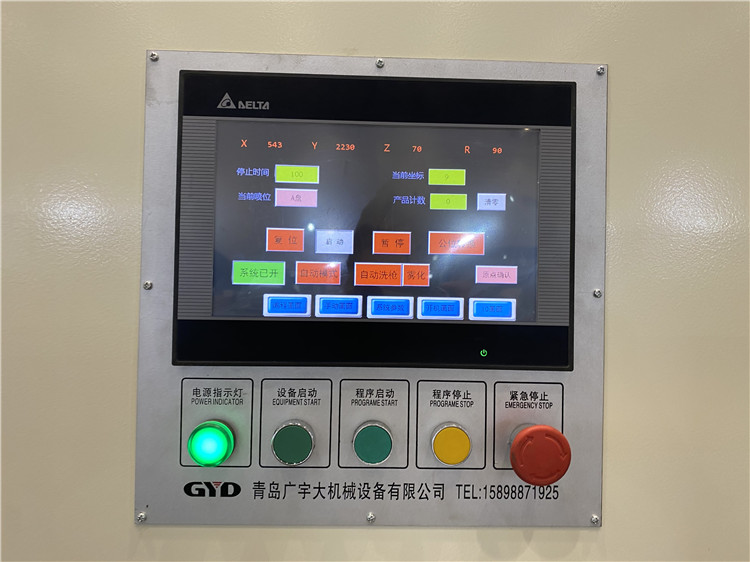

sip Board And Sip Panel Maker

Introduction

Structural Insulated Panels (SIPs) represent a cutting-edge building technology that combines superior insulation with structural strength. SIP boards and panels are increasingly favored in modern construction for their energy efficiency, rapid assembly, and sustainability. This article explores the detailed manufacturing processes of SIP boards and panels, the machinery involved, materials used, and the advantages of this innovative construction system.

What Are SIP Boards and SIP Panels?

SIP boards and panels are prefabricated building components consisting of an insulating foam core sandwiched between two structural facings, typically oriented strand board (OSB). These panels serve as walls, roofs, and floors in residential and commercial buildings, offering excellent thermal insulation and structural integrity.

Manufacturing Process of SIP Boards and Panels

Designing and Planning

The manufacturing process begins with comprehensive design and engineering. Using advanced CAD (Computer-Aided Design) and BIM (Building Information Modeling) technologies, manufacturers create precise technical and assembly documentation. These designs specify dimensions, cutting plans, and structural requirements, ensuring optimized material use and minimal waste.

Material Preparation

- Outer Facings: Usually 15mm thick OSB TOP 4 boards, although alternatives like plywood or gypsum fiber boards can be used.

- Core Insulation: Commonly expanded polystyrene (EPS), extruded polystyrene (XPS), or polyurethane (PUR) foam.

Adhesive Application and Panel Assembly

Adhesives play a crucial role in bonding the core to the outer boards. Most manufacturers use structural-grade polyurethane (PUR) adhesives, either mono-component (1-C PUR) or bi-component (2-C PUR), which cure under cold conditions and are humidity reactive.

The process involves:

1. Applying adhesive to the bottom OSB layer using roll coaters or bead applicators.

2. Placing the foam core onto the adhesive.

3. Applying adhesive on top of the foam core.

4. Adding the top OSB layer to complete the sandwich.

Pressing and Curing

The assembled sandwich is placed in hydraulic or C-type presses that apply uniform pressure, ensuring a strong bond and flat panel surface. Pressing times vary but typically last from 4 to 40 minutes depending on the adhesive and panel thickness.

Cutting and Grooving

After curing, panels are cut to size using CNC machines that follow the optimized cutting plans. Grooving machines create precise connection grooves in the foam core for structural joinery. Additionally, channels for electrical wiring are cut into the foam core during this stage.

Marking and Packaging

Panels are marked according to the project documentation to facilitate quick and accurate on-site assembly. They are then carefully packed and loaded for transportation to the construction site.

Machinery and Technology in SIP Manufacturing

- Laminating and Pressing Machines: For adhesive application and panel compression.

- CNC Cutting Machines: For precise panel shaping and cutting openings for doors, windows, and utilities.

- Grooving Machines: To create connection grooves in the foam core.

- Auxiliary Equipment: Includes lifters, core cutters, crushers, marking tools, and packing machinery.

Modern production lines are semi-automated, allowing high throughput-up to 209 panels per shift in some factories-while maintaining quality and precision.

Advantages of SIP Boards and Panels

- Energy Efficiency: SIPs provide superior insulation, reducing heating and cooling costs.

- Structural Strength: Panels meet rigorous structural standards and support building loads effectively.

- Speed of Construction: Prefabricated panels enable rapid on-site assembly, minimizing labor and time.

- Waste Reduction: Factory-controlled production reduces material waste and environmental impact.

- Versatility: Suitable for walls, floors, and roofs in various building types, customizable in thickness and size.

Frequently Asked Questions (FAQs)

1. What materials are used in SIP panels?

SIP panels typically use OSB or similar boards for the outer layers and foam cores made of EPS, XPS, or PUR for insulation.

2. How long does the SIP manufacturing process take?

From design to finished product, the process usually takes 4 to 8 weeks, depending on project complexity and production capacity.

3. Are SIP panels environmentally friendly?

Yes, SIP production generates less waste than traditional methods and uses materials that do not emit harmful gases or chemicals.

4. Can SIP panels be customized?

Absolutely. Panels can be tailored in thickness, size, density, and shape to meet specific project requirements.

5. What are the main advantages of using SIP panels in construction?

They offer excellent insulation, structural strength, faster build times, reduced waste, and versatility for various building applications.

Citations:

[1] https://www.sipeurope.eu/en/se-sip-construction-system/designing-and-manufacturing-process/

[2] https://fischersips.com/how-are-sips-manufactured/

[3] https://www.architectmagazine.com/technology/products/how-its-made-structural-insulated-panels_o

[4] https://gluestream.eu/technology/sips-manufacturing-technology/

[5] https://mypdh.engineer/lessons/process-of-manufacturing-2/

[6] https://gluestream.com/sips-manufacturing-technology

[7] https://www.youtube.com/watch?v=NV4VcEcWONA

[8] https://www.youtube.com/watch?v=7m4mNKwplg4
