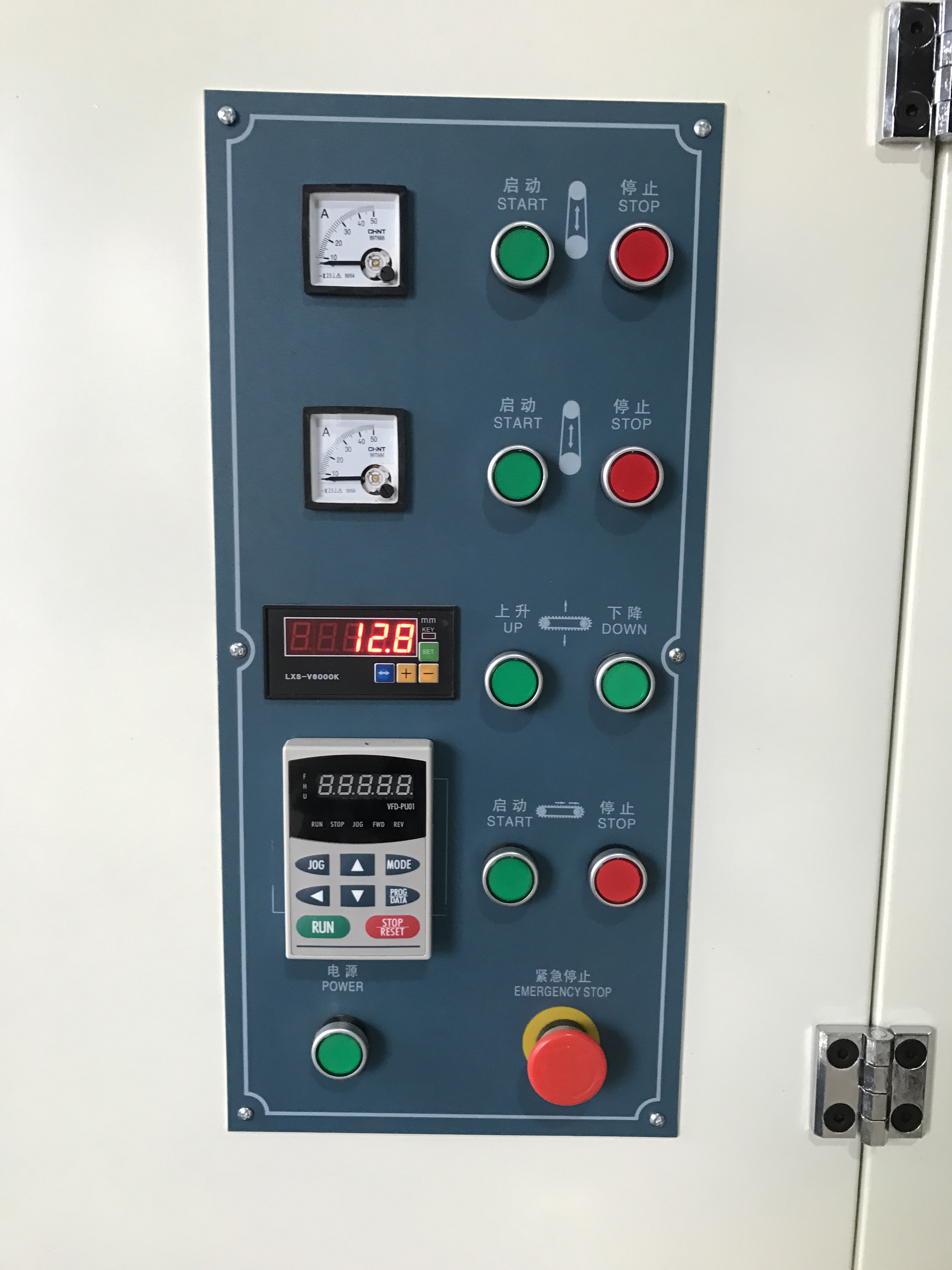

sip Panel Maker

Introduction to SIP Panel Makers

Structural Insulated Panels (SIPs) are high-performance building components widely used in residential and commercial construction for their superior insulation and structural strength. SIP panel makers are specialized manufacturing systems and machinery designed to produce these panels with precision and efficiency. This article explores the technology, manufacturing processes, equipment, and benefits of SIP panel makers, providing an in-depth understanding of how these systems revolutionize the construction industry.

What is a SIP Panel Maker?

A SIP panel maker is a set of machinery and technology used to manufacture Structural Insulated Panels. These panels consist of an insulating foam core sandwiched between two structural facers, typically oriented strand board (OSB). The panel maker automates the bonding, cutting, shaping, and finishing processes to produce ready-to-install panels that meet strict quality standards.

The SIP Manufacturing Process

Designing and Planning

The manufacturing process begins with detailed design and planning. Architects and engineers create CAD drawings of the building, which are converted into precise shop drawings for the SIP production line. These drawings specify panel dimensions, cutouts for windows and doors, and structural connection elements.

- Design software compatible with BIM (Building Information Modeling) is often used to streamline this phase.

- Optimization of cutting plans reduces waste and accelerates production.

Material Preparation and Quality Control

Before production, raw materials such as OSB boards and foam cores (commonly expanded polystyrene EPS) are selected and inspected for quality. The materials are pre-cut to size, ensuring consistency throughout the manufacturing process.

Panel Assembly and Bonding

The core step in SIP manufacturing is bonding the foam core between two OSB facers using structural adhesives.

- Polyurethane (PUR) adhesives are the most commonly used glues, with mono-component (1-C PUR) and bi-component (2-C PUR) options available.

- Adhesive application can be performed by stationary or movable portals equipped with glue-applying machines.

- Panels are assembled in stacks and pressed using hydraulic or portal-type presses to ensure a strong, uniform bond.

Cutting and Shaping

After curing, panels are cut and grooved according to the shop drawings using CNC machines or specialized cutting equipment.

- Openings for windows, doors, and wiring chases are precisely cut.

- Connection grooves are made in the panel core to facilitate on-site assembly.

Marking and Packaging

Finished panels are marked with identification numbers and quality control stamps. They are then packaged and loaded for delivery to the construction site.

Types of SIP Panel Production Lines

Semi-Automatic Production Lines

- Equipped with glue-applying machines and several presses.

- Production capacity ranges from about 100 to 200 panels per shift.

- Requires a small team of operators and forklift drivers.

Fully Automatic Production Lines

- Include multiple presses, automatic assembling portals, and conveyors.

- Can produce up to 250 panels per shift or more.

- Designed for high-volume production with minimal manual intervention.

Jumbo SIP Manufacturing Lines

- Produce large-format panels or entire wall sections.

- Enable factory assembly of walls, roofs, and floors to reduce on-site construction time.

- Useful in regions with limited material availability.

Benefits of Using SIP Panel Makers

- Precision and Consistency: Factory-controlled conditions and automated machinery ensure uniform panel quality.

- Speed: Automated processes significantly reduce manufacturing and construction times.

- Waste Reduction: Optimized cutting plans and prefabrication minimize construction waste.

- Energy Efficiency: SIPs provide excellent thermal insulation, contributing to energy-saving buildings.

- Customization: Panels can be tailored to specific building designs, including pre-cut openings and embedded structural elements.

Frequently Asked Questions

Q1: What types of adhesives are used in SIP panel manufacturing?

A1: The primary adhesives are mono-component (1-C PUR) and bi-component (2-C PUR) polyurethane glues, chosen for their strong bonding and curing properties.

Q2: How long does the SIP manufacturing process take?

A2: The entire process from design to finished panels typically takes 4 to 8 weeks, depending on project complexity and production capacity.

Q3: Can SIP panels be customized for different building designs?

A3: Yes, SIP panel makers can produce custom-sized panels with pre-cut openings for windows, doors, wiring chases, and embedded lumber.

Q4: What is the production capacity of a typical SIP panel maker?

A4: Production capacity varies; semi-automatic lines produce about 100-200 panels per shift, while fully automatic lines can produce up to 250 or more.

Q5: How do SIP panel makers contribute to sustainable construction?

A5: They reduce construction waste, improve energy efficiency of buildings, and allow for faster, less resource-intensive construction.

Conclusion

SIP panel makers represent a significant advancement in building technology, combining precision engineering with efficient manufacturing processes. By automating key steps such as adhesive application, pressing, cutting, and marking, these systems deliver high-quality, energy-efficient panels that streamline construction and reduce waste. As demand for sustainable and rapid construction grows, SIP panel makers will continue to play a crucial role in the industry.
