Automatic 5-axis spray paint machines represent a significant advancement in industrial automation, combining precision, efficiency, and versatility for complex surface coating tasks. These systems utilize programmable robotic arms with five degrees of freedom (X, Y, Z, W, T) to spray paint on objects of varying shapes and sizes, ensuring uniform finishes while reducing material waste.
Ideal for industries like automotive, furniture, metal fabrication, and aerospace, these machines operate 24/7 with minimal downtime, offering a return on investment through labor savings, reduced overspray, and consistent quality. Below, we explore their design, applications, and advantages in detail.
The 5-axis system enables multi-directional spraying:
| Axis | Function |
|---|---|
| X-axis | Left-right linear motion |
| Y-axis | Back-front linear motion |
| Z-axis | Up-down vertical motion |
| W-axis | Gun rotation (step motor-driven) |
| T-axis | Turntable rotation for workpiece positioning |

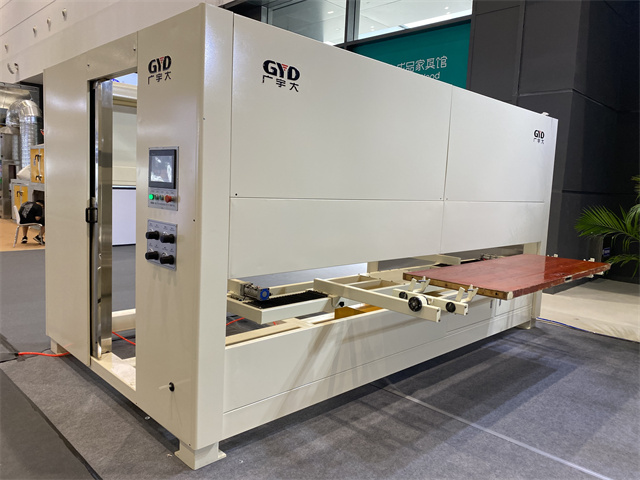

This setup allows the spray gun to reach angled surfaces and intricate geometries without manual repositioning. For instance, the GYD2500D model features a robust axis configuration that supports complex motion paths, ensuring precise coverage even on curved surfaces.
5-axis spray painting machine diagram *Typical axis configuration (Source: Robotic Paint Group)*
1. Control System:
- PLC: Omron or Mitsubishi programmable logic controllers manage motion and spray parameters.
- Servo Motors: Yaskawa/Panasonic motors ensure precise positioning (accuracy: ±0.1mm).
- Touchscreen Interface: 7-inch color panels for programming and monitoring.
2. Spray Guns:
- Compatible with rotary or fixed guns; supports up to 4 guns simultaneously.
- Automatic cleaning systems prevent clogging and reduce downtime.
- Nozzle sizes can be adjusted for different paint viscosities and surface textures.
3. Turntable and Upender:
- Dual-station rotary tables enable continuous loading/unloading.
- Upenders flip workpieces for dual-side painting in a single cycle, optimizing production time.
Programmable paths eliminate human error, ensuring identical finishes across batches. For example, GODN's SPD2500D model achieves ±0.2mm repeatability, critical for automotive panels where uniformity is paramount. This precision also extends to complex geometries, such as those found in aerospace components.
Automated spray control reduces overspray by 20–30% compared to manual methods. Robotic Paint Group's systems optimize paint flow based on surface contours, minimizing waste and reducing environmental impact. This efficiency is particularly beneficial in industries where material costs are high, such as in the production of aircraft parts.
- Multi-Product Compatibility: Handles flat panels, curved doors, and 3D components.
- Rapid Reprogramming: Stores 200+ product profiles for quick line changeovers, making it ideal for manufacturers with diverse product lines.
- Customizable Paint Recipes: Supports various paint types, including solvent-based, waterborne, and UV-cured coatings, allowing for flexibility in meeting different finish requirements.
- Throughput: Up to 25 doors/hour (GYMP2500D).
- 24/7 Operation: Servo-driven systems require minimal maintenance, ensuring continuous production cycles.
- Reduced Labor Costs: Automated processes minimize the need for skilled labor, allowing resources to be allocated more efficiently.
Video Demonstration: [Five-Axis Machine in Action](https://www.youtube.com/watch?v=PGdvHXaS1eY) (Source: Robotic Paint Group)
- Body Panels: Uniform coating for doors, hoods, and fenders.
- Wheels and Engine Parts: 5-axis reach for complex geometries, ensuring complete coverage.
- Interior Components: Painted trim and dashboard elements benefit from precise color matching and finish quality.
- Doors/Windows: High-speed spraying for raised or flat panels, ideal for mass production.
- Metal Sheets: Consistent finishes for exterior cladding and noise barriers, enhancing durability.
- Cabinets and Shelves: Smooth, even coatings for wood and metal components.
- Composite Parts: Precision coating for turbine blades and fuselage sections, where uniformity is critical for performance and safety.
- Aluminum Components: Corrosion-resistant coatings applied with precision to protect against environmental degradation.
| Feature | Offline | Online |
|---|---|---|
| Integration | Standalone | Conveyor-linked |
| Complexity | Lower | Higher |
| Use Case | Low-volume | High-volume |
Offline units suit small-batch production, while online systems sync with assembly lines for continuous workflow integration. For example, in high-volume automotive manufacturing, online systems are preferred for their ability to keep pace with production demands.
The integration of 5-axis spray paint machines into smart factories is a growing trend. By leveraging IoT sensors and AI algorithms, these systems can optimize production workflows, predict maintenance needs, and enhance quality control. Real-time monitoring allows for immediate adjustments to spray patterns or paint viscosity, ensuring optimal results even in dynamic production environments.
- Sensor Integration: Real-time monitoring of temperature, humidity, and air quality ensures optimal painting conditions.
- Predictive Analytics: AI-driven tools analyze machine performance data to predict potential failures, enabling proactive maintenance and minimizing downtime.
- Machine Learning Algorithms: Continuously refine spray paths based on workpiece geometry and paint type, maximizing efficiency and reducing waste.
- Adaptive Coating Thickness: AI adjusts paint flow to achieve uniform thickness across complex surfaces, enhancing durability and appearance.
While automation increases efficiency, it also plays a crucial role in reducing environmental impact. By minimizing paint waste and optimizing energy consumption, these machines contribute to more sustainable manufacturing practices. Additionally, the use of waterborne and UV-cured coatings reduces VOC emissions, aligning with stricter environmental regulations.
- Waterborne Coatings: Lower VOC content compared to solvent-based paints.
- UV-Cured Coatings: Fast curing process reduces VOC emissions significantly.
- Servo Motor Technology: High efficiency motors reduce energy consumption by up to 30% compared to traditional systems.
- Smart Factory Integration: Real-time monitoring optimizes energy usage based on production demands.
Most systems accommodate 2–4 guns, depending on the workpiece size and coating requirements. This flexibility allows for simultaneous application of different colors or finishes.
Yes, especially for online systems. Robotic Paint Group offers on-site programming and training to ensure seamless integration with existing production lines.
These machines work with solvent-based, waterborne, and UV-cured coatings. Gun nozzles can be swapped for different viscosities, allowing for a wide range of finish options.
Compact designs like the SPD2500D fit into existing paint booths (min. 4m x 3m area), making them suitable for facilities with limited space.
Yes, bulk orders qualify for discounts due to reduced material procurement costs. Additionally, automated systems ensure consistent quality across large batches, reducing the risk of defects.
Automatic 5-axis spray paint machines are reshaping manufacturing with unmatched precision and adaptability. Advances in AI-driven path optimization and IoT-enabled predictive maintenance will further enhance their role in smart factories. As industries continue to evolve towards more sustainable practices, these machines will play a pivotal role in reducing waste and environmental impact while maintaining high productivity levels.
