Curtain coating is a sophisticated and efficient liquid coating technique that has transformed industries ranging from electronics to furniture manufacturing. This article explores the fundamentals of curtain coating, its scientific principles, industrial applications, challenges, and future trends, providing a comprehensive guide for professionals and enthusiasts alike.

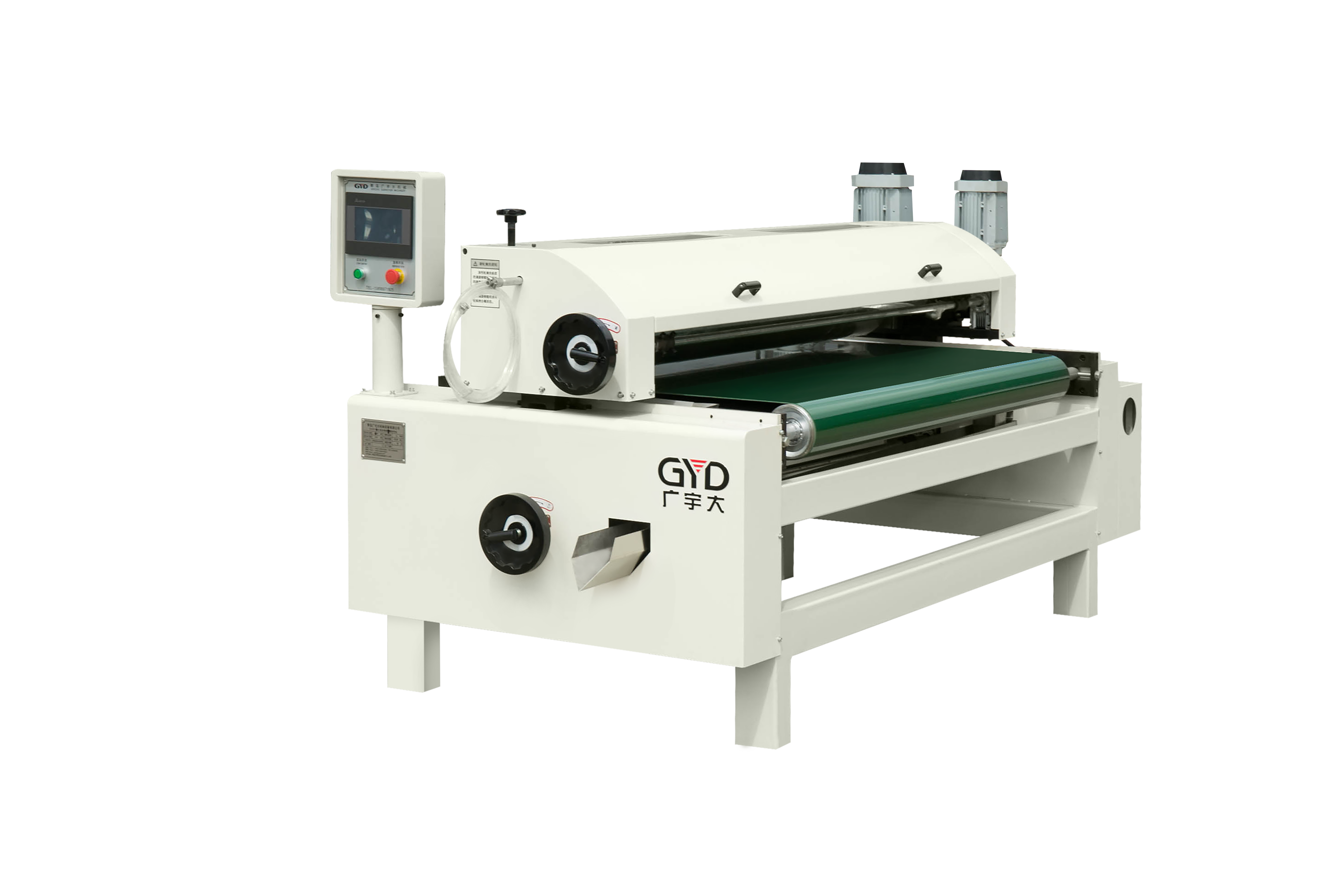

Curtain coating is a pre-metered application method where a continuous, thin sheet-or "curtain"-of liquid coating material falls under gravity onto a moving substrate. Unlike other coating methods that rely on direct contact or spraying, curtain coating allows a uniform, smooth, and even layer to be applied without physical interference at the point of application.
A coating liquid is pumped through a specially designed die to form a stable curtain of liquid that falls freely onto the substrate moving below. The curtain thickness and flow rate are precisely controlled to achieve the desired coating thickness, often 60 microns or more, with minimal waste.
Originally developed for the photographic film industry in the mid-20th century, curtain coating has evolved and expanded into various sectors. Its adoption in electronics manufacturing, particularly for applying liquid photoimageable (LPI) solder masks on printed circuit boards (PCBs), began in the late 1990s and has since become a preferred method due to its precision and efficiency.
The success of curtain coating depends on fluid dynamics principles, including:
- Viscosity: The coating material's resistance to flow affects curtain stability and thickness.
- Flow Rate: Controls the volume of liquid forming the curtain.
- Curtain Height: The distance the liquid falls before hitting the substrate influences the curtain's velocity and impact.
- Substrate Speed: The speed of the moving substrate must be synchronized with the flow to maintain uniform coverage.
- Surface Tension and Edge Guides: Edge guides prevent the curtain from narrowing due to surface tension, ensuring consistent width.
Curtain coating is widely used in industries requiring high-quality, uniform coatings on flat or slightly uneven surfaces.
In furniture manufacturing, curtain coating applies smooth, even finishes on doors, panels, and parquet flooring, enhancing durability and aesthetics.
Image:
*Furniture panels being coated with a glossy finish using curtain coating.*
For PCB manufacturing, curtain coating applies uniform LPI solder masks that protect circuits and improve device reliability.
Curtain coating is used to apply protective and decorative coatings on automotive parts, improving corrosion resistance and appearance.
Curtain coating enables multilayer coatings on paper and board with minimal defects, improving printability and surface properties.
- Uniform Thickness: Produces consistent coatings without streaks or sharp lines.
- Material Efficiency: Minimal overspray and waste due to pre-metered application and recirculation.
- High Speed: Capable of coating at speeds up to 70 meters per minute or more.
- Gentle on Substrates: Lower fluid pressure reduces damage to delicate materials like paper.
- Multilayer Capability: Slide dies enable simultaneous application of multiple layers in one pass.
Maintaining a stable curtain is critical. Edge guides and precise viscosity control help prevent curtain breakage or necking.
Dynamic adjustments in flow rate and conveyor speed ensure consistent thickness, even on substrates with varying topography.
Temperature and humidity can affect coating properties. Climate-controlled environments and real-time process monitoring mitigate these issues.
Choosing coating materials with stable viscosity and curing characteristics tailored for curtain coating improves outcomes.
Regular cleaning, calibration, and inspection prevent defects and downtime.
Understanding fluid dynamics and troubleshooting ensures process reliability.
- Reduced Waste: Efficient use of materials lowers disposal costs.
- Energy Savings: Uniform coatings require less curing energy.
- Lower VOC Emissions: Enclosed systems and low-VOC materials support environmental compliance.
- Advanced Materials: Development of bio-based and functional coatings.
- Automation: Integration with AI and Industry 4.0 for predictive maintenance and process optimization.
- Miniaturization: Adaptation for ultra-fine electronics and flexible substrates.
Q1: How does curtain coating compare to screen printing for PCB solder masks?
Curtain coating offers higher speed, better uniformity, less material waste, and fewer defects than screen printing, making it ideal for large-scale production.
Q2: What factors affect coating thickness in curtain coating?
Flow rate, substrate speed, curtain height, viscosity, and surface tension all influence coating thickness and must be balanced.
Q3: Can curtain coating apply multiple layers simultaneously?
Yes, slide dies can coat more than ten layers at once, enhancing productivity.
Q4: What are common finishing problems in curtain coating?
Issues include blue corners, gloss variations, and sagging edges, typically caused by equipment misalignment or improper material properties.
Q5: How is excess coating material managed?
Curtain coaters often include recirculation systems to collect and reuse excess material, reducing waste.
