Wide belt sanders are indispensable machines in woodworking, metalworking, and manufacturing industries, designed to deliver smooth, flat, and high-quality finishes on large surfaces. This comprehensive article explores the technology, applications, types, and benefits of wide belt sanders, providing detailed insights for professionals and enthusiasts alike.

What Are Wide Belt Sanders?

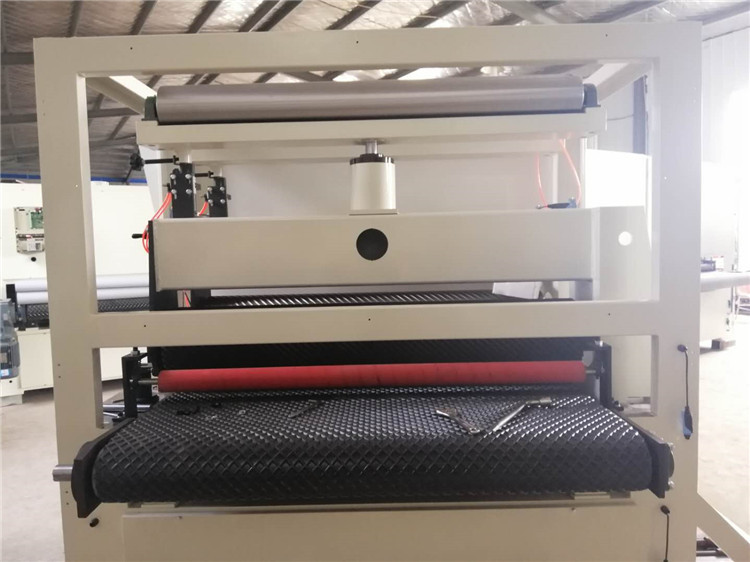

Wide belt sanders are industrial sanding machines equipped with a wide abrasive belt that moves continuously over rollers. They are used to sand large panels, boards, or metal sheets efficiently and uniformly. The wide sanding belt allows for broad coverage, reducing sanding time while producing a consistent finish.

Key Features of Wide Belt Sanders

- Wide sanding belts: Typically ranging from 24 inches to over 53 inches in width, accommodating various workpiece sizes.

- Variable feed speeds: Adjustable feed rates allow control over sanding aggressiveness and finish quality.

- Multiple sanding heads: Machines may have one or more sanding units for coarse to fine sanding in a single pass.

- Robust construction: Designed for heavy-duty industrial use with reliable components and long service life.

- Automated controls: Modern machines include digital displays, motorized table height adjustments, and sensors for belt tracking and workpiece thickness measurement.

Wide belt sanders vary by their configuration, sanding width, and intended material. Here are some common types:

Single-Head Wide Belt Sanders

These machines have one sanding unit and are typically used for initial stock removal and leveling. They are simpler and more affordable, suitable for smaller workshops.

Multi-Head Wide Belt Sanders

Equipped with two or three sanding heads, these machines allow sequential sanding with different grits, from coarse to fine, producing a smooth finish in fewer passes.

Wide Belt Sanders for Wood vs. Metal

- Wood wide belt sanders focus on removing surface imperfections and preparing panels for finishing.

- Metal wide belt sanders are designed for deburring, surface preparation, and finishing metal sheets or parts, often with more robust motors and abrasive belts.

The workpiece is fed through the machine on a conveyor belt under the sanding belt(s). The sanding belt rotates at high speed, abrading the surface to remove material and smooth it out.

Important Components

- Sanding belt: The abrasive belt that does the sanding.

- Contact rollers: Press the sanding belt against the workpiece.

- Feed belt: Moves the workpiece through the machine.

- Table: Supports the workpiece and can be adjusted for thickness.

- Dust extraction: Collects sanding dust to maintain a clean environment.

Advantages of Using Wide Belt Sanders

- Efficiency: Large sanding belts cover more surface area quickly.

- Consistency: Uniform pressure and feed speed ensure even sanding.

- Versatility: Suitable for wood, metal, and composite materials.

- Finish quality: Multi-head machines provide fine finishes ready for painting or varnishing.

- Automation: Modern controls reduce operator fatigue and improve precision.

Choosing the Right Wide Belt Sander

When selecting a wide belt sander, consider the following:

- Sanding width: Match the belt width to your largest workpieces.

- Workpiece thickness range: Ensure the machine can handle your material thickness.

- Number of sanding heads: More heads mean fewer passes and better finish.

- Motor power: Higher power is needed for harder materials or heavy stock removal.

- Additional features: Look for automated thickness measurement, belt tracking, and dust collection.

- Regularly check and replace sanding belts to maintain performance.

- Keep rollers and conveyor belts clean and lubricated.

- Use dust extraction systems to reduce airborne particles.

- Follow manufacturer guidelines for motor and electrical maintenance.

- Always wear protective equipment when operating the machine.

Frequently Asked Questions (FAQs)

Q1: What materials can wide belt sanders process?

A1: They can sand wood, metal, composites, and plastics depending on the abrasive belt used and machine configuration.

Q2: How wide can the sanding belt be?

A2: Common widths range from 24 inches (600 mm) up to 53 inches (1350 mm) or more, depending on the machine model.

Q3: What is the typical feed speed range?

A3: Feed speeds vary from about 2 m/min to over 10 m/min, adjustable to balance sanding aggressiveness and finish quality.

Q4: Can wide belt sanders be used for finishing as well as stock removal?

A4: Yes, especially multi-head sanders that use progressively finer grits for a smooth finish.

Q5: How often should sanding belts be replaced?

A5: Replacement depends on usage and material but generally when sanding quality deteriorates or belts show wear.
