Introduction to Wide Belt Sanders

Wide belt sanders are essential industrial woodworking machines designed to sand large, flat surfaces such as wood panels, doors, and furniture components with high precision and efficiency. Unlike handheld sanders, these machines utilize wide abrasive belts that can exceed 50 inches in width, allowing for faster processing of wider materials in a single pass while delivering uniform, smooth finishes.

What is a Wide Belt Sander?

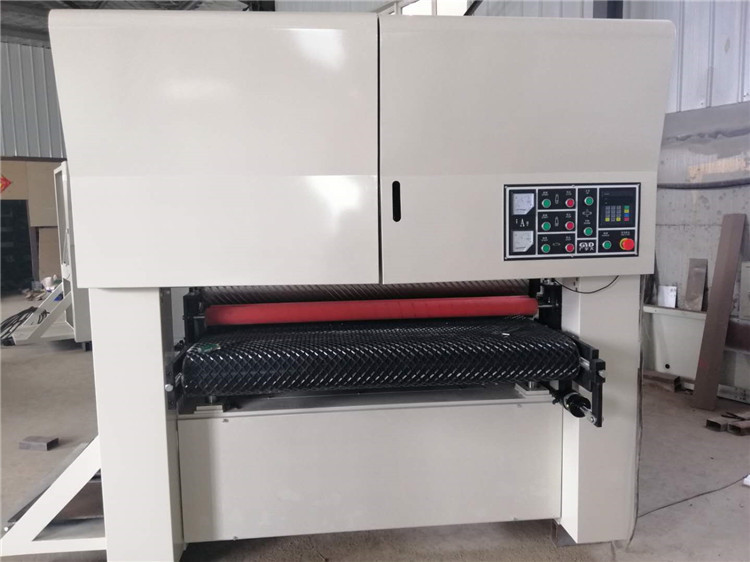

A wide belt sander consists of a conveyor system that feeds the workpiece through sanding drums covered with abrasive belts. The rear drum is motor-driven, while the front drum is free to move, enabling controlled sanding pressure. These machines are widely used in woodworking shops for thickness sanding, surface finishing, and preparation of materials like MDF, plywood, and hardwood.

Key Components and Features

- Variable Speed Control: Modern wide belt sanders allow adjustment of conveyor and sanding belt speeds to accommodate different materials and sanding stages, from rough stock removal to fine finishing.

- Multiple Sanding Heads: Advanced models have two or more sanding heads with different grit belts for multi-stage sanding in one pass.

- Digital Thickness Control: Enables precise sanding to exact thicknesses with repeatable results.

- Automatic Belt Tracking: Keeps the sanding belt aligned, reducing wear and enhancing safety.

- Dust Extraction Ports: Integrated dust collection systems maintain a clean and safe work environment.

How Does a Wide Belt Sander Work?

The workpiece is placed on a feed table and moved under the sanding belt. The height of the feed table can be adjusted to control the thickness of material removed. The sanding belt rotates towards the feed direction, sanding the surface as the material passes through. A graphite or leather pad behind the belt helps distribute pressure evenly, improving finish quality by reducing point loading and vibration.

Applications of Wide Belt Sanders

Wide belt sanders are versatile machines used for:

- Thickness sanding to achieve uniform material thickness.

- Surface finishing to prepare wood for staining or painting.

- Removing old finishes or paint.

- Smoothing rough stock before further processing.

- Sanding large panels or wide boards that cannot fit through smaller sanders or planers.

They are particularly favored for hardwood and engineered wood products due to their ability to produce smooth, consistent surfaces quickly.

Advantages of Using Wide Belt Sanders

- High Productivity: Wide sanding belts and conveyor systems allow processing of large surfaces rapidly.

- Superior Surface Quality: Even pressure distribution and multi-head sanding options deliver fine finishes.

- Versatility: Adjustable speeds and multiple grit options support various sanding needs.

- Precision: Digital controls ensure consistent thickness and repeatable results.

- Dust Management: Integrated extraction ports reduce airborne dust, improving shop safety.

Common Challenges and Solutions

Improper Belt Tracking

Misalignment of the sanding belt can cause it to slide off rollers or wear prematurely. Automatic belt tracking systems help prevent this, but regular inspection and adjustment are necessary.

Belt Wear and Tear

Over-tensioning or under-tensioning belts can lead to tearing or joint failure. Proper tension settings depend on belt material (paper, cloth, polyester) and should be maintained within recommended PSI ranges.

Overloading and Belt Burning

Feeding material too quickly or using inappropriate grit can cause overheating and burn marks. Adjust feed rates and grit sequences carefully to avoid damage.

Maintenance Tips

- Regularly clean and inspect belts and drums.

- Maintain proper belt tension and tracking.

- Use the correct abrasive type and grit for the material.

- Ensure dust extraction systems are functioning properly.

Frequently Asked Questions (FAQs)

Q1: What materials can be sanded with a wide belt sander?

A1: Wide belt sanders are suitable for wood panels, hardwood, plywood, MDF, and some composite materials.

Q2: How wide are the sanding belts on these machines?

A2: Belts can be over 50 inches wide, allowing for sanding of large panels in one pass.

Q3: Can a wide belt sander remove thick layers of material?

A3: They typically remove thin layers (around 0.005 inches per pass) for fine finishing, but coarse belts and multiple heads can remove more material if needed.

Q4: How often should sanding belts be replaced?

A4: Belt life depends on material, tension, feed rate, and grit sequence. Proper maintenance can extend belt life significantly.

Q5: What safety precautions are necessary when using a wide belt sander?

A5: Operators should use dust extraction, wear protective gear, ensure proper belt tracking, and avoid loose clothing near moving parts.

Conclusion

Wide belt sanders are indispensable tools in modern woodworking, offering unmatched efficiency, precision, and surface quality for large flat materials. Understanding their features, operation, and maintenance ensures optimal performance and longevity. Whether for industrial production or specialized woodworking shops, investing in a quality wide belt sander can significantly enhance productivity and finish quality.
