In the modern manufacturing and finishing industries, the demand for high-quality, efficient, and environmentally friendly coating solutions is ever-increasing. OEM automatic coating UV paint primer machines have emerged as a cutting-edge technology that meets these demands by combining automation with ultraviolet (UV) curing processes. This article explores the technology, applications, benefits, and operational details of OEM automatic coating UV paint primer machines, providing a comprehensive guide for manufacturers, engineers, and industry professionals.

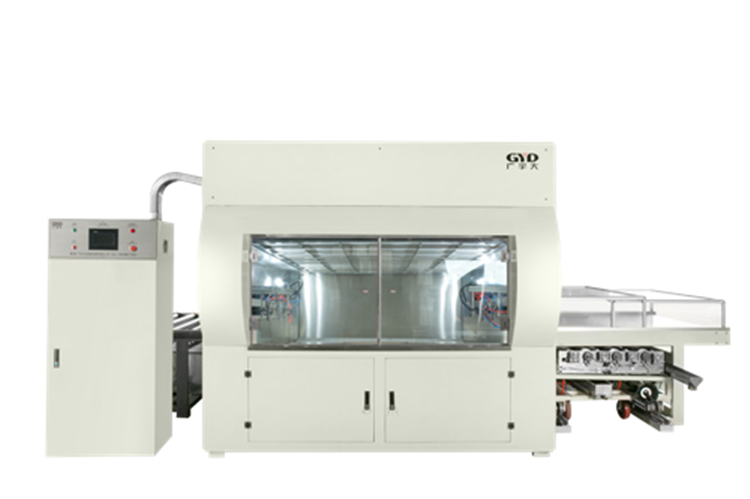

An OEM automatic coating UV paint primer machine is a specialized industrial equipment designed to apply primer coatings automatically onto surfaces, followed by rapid curing using UV light technology. These machines are typically used in industries such as automotive, furniture, electronics, and door manufacturing to enhance surface durability and finish quality.
- Automatic Coating: The machine uses precision-controlled spray guns to apply a uniform layer of UV-sensitive primer paint onto the substrate. The process is fully automated, including feeding, spraying, flipping, and discharging of parts.
- UV Curing: After application, the primer is exposed to UV light (usually UV-A spectrum), which rapidly cures and hardens the coating within minutes, significantly reducing drying times compared to conventional methods.
- Industrial computers precisely control spray gun movement, spray timing, flow rate, and atomization pressure to ensure consistent coating quality.
- Automatic feeding and flipping mechanisms enable continuous operation, improving throughput and reducing labor costs.
- UV lamps emit specific wavelengths (commonly UV-A) to initiate polymerization of the primer paint.
- Curing times range from 1 to 5 minutes depending on the coating thickness and lamp power.
- The curing process generates minimal heat, protecting sensitive substrates.
- Some machines are equipped with air heating and circulation systems to stabilize temperature and accelerate solvent evaporation before UV curing.
- Specialized spray guns with adjustable fluid tips and spray pressures optimize atomization and minimize paint waste.
- Typical spray pressures are around 200-240 kPa with fluid tips sized between 1-2 mm.
- Used for priming metal and plastic parts with UV-curable primers that allow fast curing and immediate sanding or topcoating.
- Reduces cycle times by up to 50% compared to traditional solvent-based primers.
- Enhances scratch resistance and surface durability.
- Ideal for spraying color stains, primers, and finish coats on wood doors, MDF, and WPC doors.
- Capable of spraying 100-120 doors daily with just two operators.
- Improves coating uniformity and reduces paint consumption by 10-15% compared to manual spraying.
- Suitable for coating plastic add-on parts and repaired plastic surfaces.
- Ensures adhesion on modified plastics that are paintable.
- Enables fast repairs with minimal energy consumption.
- Speed: UV curing reduces drying times from hours to minutes.
- Quality: Automated spraying ensures even coating thickness and reduces defects.
- Efficiency: Lower paint waste and reduced labor requirements.
- Environmental Benefits: UV curing emits fewer volatile organic compounds (VOCs) and consumes less energy.
- Versatility: Compatible with various substrates including metals, plastics, and wood.
- Clean and degrease the surface thoroughly.
- Sand or scuff the substrate to ensure proper primer adhesion.
- Load parts onto the conveyor or feeding system.
- The machine sprays the UV primer uniformly using programmed routes.
- Allow a brief flash-off time (typically 15 minutes at 20°C) for solvent evaporation.
- Expose the coated parts to UV light for 1-5 minutes depending on the primer and lamp specifications.
- Sanding or polishing can be performed immediately after curing.
- Apply topcoats or finish layers as required.
- Regular cleaning of spray guns and nozzles to prevent clogging.
- Monitoring UV lamp intensity and replacing lamps as needed.
- Wearing personal protective equipment (PPE) to avoid exposure to UV light and paint fumes.
- Ensuring proper ventilation in the coating area.
Q1: What types of primers can be used with these machines?
A1: Typically, 1K UV-curable primers designed for rapid curing and adhesion on metals, plastics, and wood are used.
Q2: How fast is the curing process?
A2: UV curing usually takes between 1 to 5 minutes, significantly faster than traditional drying methods.
Q3: Can the machine handle different substrate sizes?
A3: Yes, machines are adjustable to accommodate various sizes and shapes, including doors, panels, and automotive parts.
Q4: Is the process environmentally friendly?
A4: Yes, UV curing reduces VOC emissions and energy consumption compared to solvent-based drying.
Q5: What is the typical throughput of an automatic UV paint primer machine?
A5: For example, a door spraying machine can coat 100-120 doors per day with only two operators.
OEM automatic coating UV paint primer machines represent a significant advancement in industrial coating technology. By integrating automation with UV curing, these machines deliver superior coating quality, faster production cycles, and environmental benefits. Industries such as automotive, wood manufacturing, and electronics can greatly enhance their finishing processes by adopting this technology.
