In the modern manufacturing landscape, automation plays a pivotal role in enhancing efficiency, precision, and quality. Among various industrial automation technologies, OEM automatic paint spraying machines stand out as essential equipment for industries requiring consistent, high-quality surface finishing. This article explores the features, technologies, benefits, and applications of OEM automatic paint spraying machines, providing a comprehensive understanding of how these machines transform painting processes in factories worldwide.

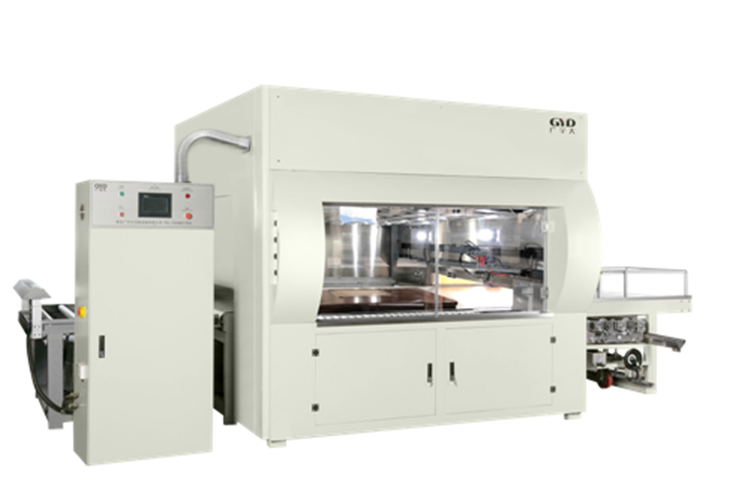

An OEM (Original Equipment Manufacturer) automatic paint spraying machine is a specialized industrial device designed to apply paint or coatings to various surfaces with minimal human intervention. These machines are typically integrated into production lines and can be customized to meet specific manufacturing requirements.
- Automation and Precision: Controlled electronically or pneumatically, these machines ensure uniform paint application with precise control over spray patterns and fluid flow.
- Versatility: Suitable for different substrates such as wood, metal, glass, leather, and plastic.
- Customization: OEM manufacturers offer tailored solutions to fit specific production needs, including spray gun configurations and coating types.
- Spray Guns: Equipped with advanced atomization technology to break paint into fine droplets for smooth application.
- Conveying System: Works with linear or hanging conveyors to move workpieces through the spraying zone.
- Control System: PLC or industrial PC-based controls manage spray parameters, gun movement, and paint supply.
- Rotation and Reciprocation: Some systems use 360-degree rotation and reciprocating arms to ensure all surfaces are evenly coated.
- Two spray guns positioned at different heights and angles (about 35 degrees relative to horizontal) spray simultaneously.
- Workpieces are hung on hooks attached to a chain that moves through a fixed spraying station.
- As the chain moves, gears engage with fixed chains to rotate the workpieces, allowing full 360-degree coverage.
- Spray guns move up and down to cover top, bottom, and sides evenly.
- Automated systems can spray 15-18 doors per minute compared to 3-4 doors manually, nearly a fivefold increase in throughput.
- Consistent spraying reduces rework and material wastage.
- Fine atomization ensures smooth, even coatings with minimal overspray.
- Uniform coverage on complex shapes and hard-to-reach areas reduces defects.
- Reduced paint consumption due to precise application.
- Closed spraying rooms with double air filtering minimize environmental pollution.
- Reuse of paint mist via UV paint separators decreases waste.
- High-performance automatic spray guns offer ergonomic designs to reduce operator fatigue.
- Electrostatic spray guns improve transfer efficiency by charging paint particles to adhere better to surfaces.
- PLC and industrial PCs allow operators to set and monitor spraying parameters easily.
- Sensors (like grating scanners) detect workpiece dimensions for optimized spray stroke and timing.
- Double filtering ensures clean air supply.
- Powerful blowers expedite paint fume extraction.
- UV paint separators recover paint from mist for reuse.
- Furniture Manufacturing: Spraying wood panels, doors, and cabinets with consistent finishes.
- Automotive Industry: Coating car parts with precise and uniform paint layers.
- Electronics and Appliances: Applying protective and decorative coatings on metal and plastic components.
- Textile and Leather Goods: Specialized spraying for buttons, leather, and fabric treatments.
Dongguan New-tech Engineering Co., Ltd offers a fully customized OEM automatic spray painting production line featuring coating equipment designed for diverse industrial applications. Their systems support precise paint application with high throughput and minimal waste, backed by over 15 years of manufacturing experience.
Q1: What industries benefit most from OEM automatic paint spraying machines?
A1: Industries such as furniture, automotive, electronics, appliances, and textiles benefit greatly due to the need for high-quality, consistent coatings.
Q2: How do automatic spray guns differ from manual ones?
A2: Automatic spray guns are mounted and controlled electronically or pneumatically, providing consistent spray patterns and reducing operator fatigue, unlike manual hand-held guns.
Q3: Can these machines handle complex shapes?
A3: Yes, with 360-degree rotation and reciprocating spray arms, they can evenly coat complex and irregularly shaped workpieces.
Q4: What environmental benefits do these machines offer?
A4: They reduce paint waste, minimize overspray, and use filtering and paint recovery systems to lower environmental impact.
Q5: How customizable are OEM automatic paint spraying machines?
A5: Highly customizable to fit specific production needs, including spray gun types, control systems, and conveyor configurations.
OEM automatic paint spraying machines represent a significant advancement in industrial coating technology. By combining automation, precision, and customization, these machines deliver superior coating quality, increased productivity, and environmental benefits. As industries continue to demand higher efficiency and quality, OEM automatic paint spraying machines will remain integral to manufacturing success.
