In modern manufacturing and industrial applications, achieving a consistent, high-quality paint or coating finish is essential. Line spray machines have revolutionized the painting process by automating and streamlining the application of coatings on various materials. This article explores the working principles, types, benefits, and applications of line spray machines, providing an in-depth understanding of these powerful tools that enhance productivity and finish quality.

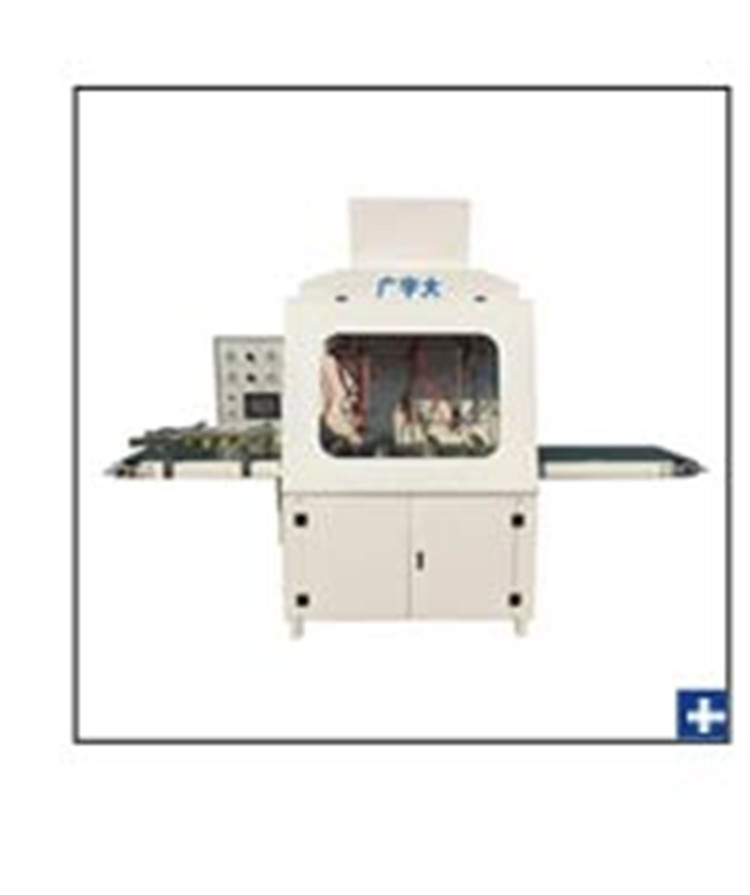

A line spray machine is an automated system designed to apply paint, coatings, or other finishes uniformly on products as they move along a production line. These machines use spray guns or atomizers to deliver coatings efficiently and consistently, often integrated with conveyors that transport parts through various stages of surface preparation and painting.
Before painting, parts undergo cleaning to remove dirt, grease, and contaminants that could affect paint adhesion. Drying follows cleaning to ensure the surface is ready for coating. Depending on the material, priming or chemical treatments may be applied to enhance adhesion.
Parts are loaded onto a conveyor belt or suspended on an overhead system, which continuously moves them through the painting stages. The conveyor speed is adjustable to accommodate different product sizes and shapes, ensuring consistent exposure to the spray guns.
The core of the system involves spray guns or atomizers that apply the paint. Commonly used spray guns include High Volume Low Pressure (HVLP) and electrostatic sprayers. These guns atomize the paint into fine droplets for a smooth, even finish. Airless spray guns, which force paint through a small orifice at high pressure, are also widely used for their efficiency and fine atomization.
These are basic machines operated by hand, suitable for small-scale projects like parking lots or sports fields. They offer simple control but are labor-intensive.
Powered by motors, these machines cover larger areas faster and offer adjustable line widths and paint flow, balancing cost and performance.
Designed for large-scale projects, these machines use GPS and programmable settings for precise, high-speed line marking with minimal operator input.
Using high-pressure paint spraying without compressed air, these machines deliver smooth, even coatings ideal for roads, highways, and industrial applications.
Automated line spray machines significantly reduce production time by enabling continuous operation and faster throughput.
They ensure uniform coating thickness and smooth finishes, eliminating streaks and uneven coverage common in manual painting.
Automation reduces labor costs and paint waste through precise atomization, while modern machines require minimal maintenance.
Suitable for a wide range of materials such as metal, plastic, wood, and glass, and compatible with various paint types including primers, powder coatings, and liquid paints.
Advanced systems reduce overspray and volatile organic compound (VOC) emissions, improving workplace safety by minimizing workers' exposure to harmful chemicals.
Line spray machines can be adapted for small to large production runs and integrated with other manufacturing processes like curing or drying.
The quality of the spray guns, including the tip or nozzle, directly impacts the finish. Airless spray guns feature components made from durable materials like aluminum and tungsten carbide to withstand high pressures.
Conveyors transport parts at controlled speeds, while sensors detect part positions to trigger spray guns precisely, minimizing overspray and paint waste.
Modern machines feature programmable control panels for adjusting spray parameters, conveyor speed, and spray timing, enabling fine-tuning for different products.
Troughs capture excess paint for reuse, and filtration units remove airborne particles, reducing environmental impact.
- Automotive Industry: For painting vehicle parts with consistent, durable finishes.
- Furniture Manufacturing: Precision coating of wood and metal furniture.
- Consumer Electronics: Smooth finishes on gadgets and devices.
- Construction Materials: Coating aluminum panels, glass, and other building materials.
- Industrial Equipment: Protective coatings on machinery and tools.
1. Prepare the Surface: Clean and dry parts; apply primers if necessary.
2. Load Parts: Place parts on the conveyor or suspension system.
3. Set Parameters: Adjust conveyor speed, spray gun settings, and paint flow.
4. Start Operation: Initiate the conveyor and spray guns; monitor for consistent application.
5. Quality Check: Inspect painted parts for uniformity and coverage.
6. Maintenance: Regularly clean spray tips and filters to maintain performance.
Q1: What types of paints can be used with line spray machines?
A1: Line spray machines can handle various paints, including liquid paints, primers, powder coatings, stains, varnishes, and sealers.
Q2: How is paint overspray managed in these machines?
A2: Overspray is captured by troughs beneath the spray guns and filtered through exhaust systems, reducing waste and environmental impact.
Q3: Can line spray machines be customized for different product sizes?
A3: Yes, conveyor speeds, spray gun positions, and spray parameters can be adjusted to accommodate various shapes and sizes.
Q4: What maintenance is required for line spray machines?
A4: Regular cleaning of spray tips, filters, and paint recovery systems is essential to maintain optimal performance and prevent clogging.
Q5: Are line spray machines suitable for small-scale operations?
A5: While they excel in large-scale production, smaller manual or semi-automatic line marking machines are available for small projects.
Line spray machines represent a significant advancement in industrial coating technology, offering unparalleled efficiency, quality, and cost-effectiveness. Their versatility across industries and materials, combined with environmental and safety benefits, make them indispensable in modern manufacturing. By automating the spray painting process, businesses can achieve consistent, professional-grade finishes while optimizing production workflows.
