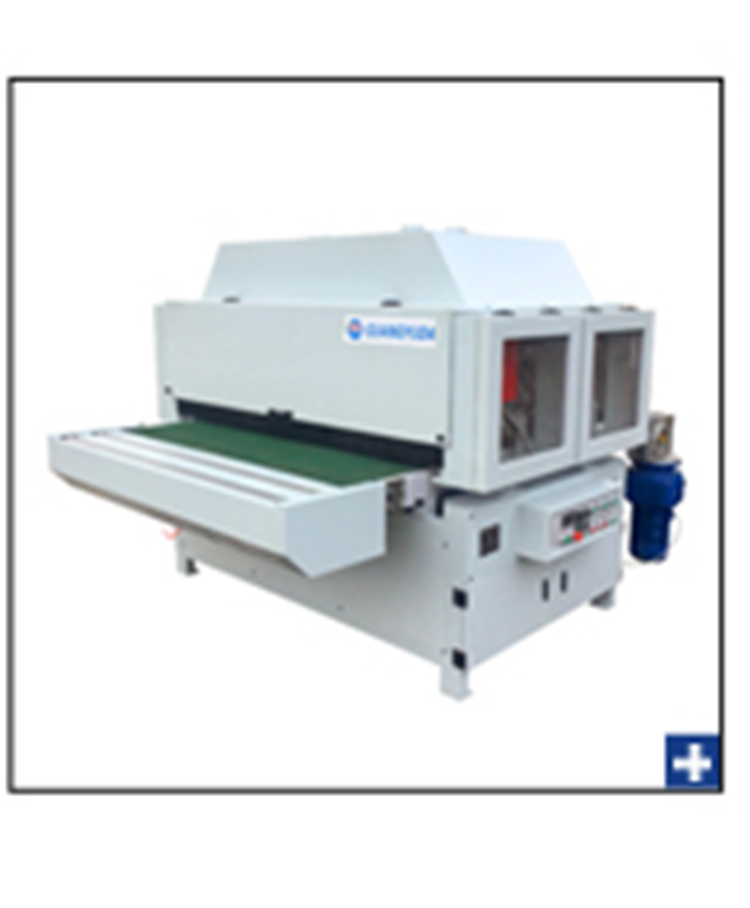

In woodworking and metalworking, achieving a flawless surface finish is paramount for both aesthetics and functionality. have emerged as indispensable tools for achieving consistent and high-quality results. These machines combine the abrasive power of sanding belts with the flexibility of brushes to effectively smooth, contour, and finish a variety of materials. This article explores the mechanics, applications, and benefits of belt brush sanding machines, providing a comprehensive guide for professionals and hobbyists alike.
Belt brush sanding machines utilize a unique combination of sanding belts and brushes to achieve superior surface finishing. The sanding belt provides the primary abrasive action, while the brushes conform to the workpiece, ensuring even sanding across complex shapes and profiles.
Sanding Belt: The sanding belt is a continuous loop of abrasive material that rotates at high speed, removing material from the workpiece. The grit size of the belt determines the aggressiveness of the sanding action, with coarser grits used for initial stock removal and finer grits for final finishing.
Brush System: The brush system consists of multiple brushes arranged in a specific configuration. These brushes are typically made of nylon, abrasive nylon, or other synthetic materials. The brushes conform to the shape of the workpiece, ensuring even sanding across contours and profiles.
Drive System: The drive system powers the sanding belt and brush system, controlling their speed and rotation. Variable speed control allows the operator to adjust the sanding action to suit the material and desired finish.
Workpiece Support: The workpiece support provides a stable platform for the workpiece during sanding. This may include a fixed table, conveyor belt, or other mechanisms for holding the workpiece in place.
Dust Collection: Sanding generates a significant amount of dust, which can be harmful to the operator and the environment. Most belt brush sanding machines are equipped with a dust collection system to remove dust and debris from the work area.
The workpiece is fed into the machine, where the sanding belt and brushes work in tandem to smooth and finish the surface. The sanding belt removes material, while the brushes blend the abrasive marks and conform to the shape of the workpiece. The result is a smooth, consistent finish with no sharp edges or corners.
Belt brush sanding machines come in various configurations to suit different applications and workpiece shapes.

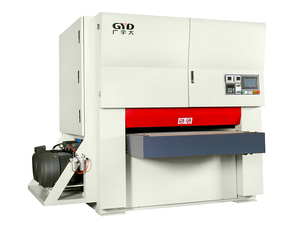

Wide belt sanders are designed for sanding large, flat surfaces. They feature a wide sanding belt and a large table to accommodate wide workpieces. Wide belt sanders are commonly used in woodworking for sanding panels, doors, and tabletops.
Profile sanders are designed for sanding contoured or shaped workpieces. They feature a shaped sanding belt and a conforming brush system to follow the contours of the workpiece. Profile sanders are commonly used in woodworking for sanding moldings, trim, and furniture components.
Edge sanders are designed for sanding the edges of workpieces[5]. They feature a narrow sanding belt and an adjustable fence to guide the workpiece along the sanding belt. Edge sanders are commonly used in woodworking for sanding the edges of doors, drawers, and cabinet parts.
BrushBelt sanders feature a unique contact belt unit equipped with flexible sanding strips. The workpiece is sanded simply by pushing it against the contact belt. The contact belt comes in a width of 200mm and features grooves filled with sanding strips. These grooves can be filled with two different types of sanding strips, e.g. for wood sanding and intermediate sanding, thus making the machine extremely versatile.
Belt brush sanding machines are used in a wide range of industries for various applications.
In woodworking, belt brush sanding machines are used for sanding a variety of wood products, including furniture, cabinets, doors, moldings, and trim. They can smooth rough surfaces, remove blemishes, and prepare surfaces for finishing.
In metalworking, belt brush sanding machines are used for deburring, polishing, and finishing metal parts. They can remove sharp edges, smooth surfaces, and create a desired finish on metal components.
In plastics manufacturing, belt brush sanding machines are used for deflashing, polishing, and finishing plastic parts. They can remove excess material, smooth surfaces, and create a desired finish on plastic components.
In composites manufacturing, belt brush sanding machines are used for sanding and finishing composite parts. They can smooth surfaces, remove imperfections, and prepare surfaces for painting or coating.
Belt brush sanding machines offer several advantages over traditional sanding methods.
Belt brush sanding machines produce a smoother, more consistent surface finish compared to manual sanding or other machine sanding methods[5]. The combination of sanding belts and brushes ensures even sanding across complex shapes and profiles.
Belt brush sanding machines can sand parts much faster than manual sanding, increasing production efficiency. The automated sanding process reduces labor costs and ensures consistent results.
Belt brush sanding machines remove material precisely, reducing the risk of over-sanding or damaging the workpiece. This minimizes material waste and lowers production costs.
Belt brush sanding machines are equipped with safety features such as dust collection systems and emergency stop buttons to protect the operator. The enclosed sanding process reduces the risk of injury from flying debris or moving parts.
Choosing the right belt brush sanding machine depends on the specific application, workpiece material, and desired finish.
Different materials require different sanding parameters. Wood requires a softer touch than metal or plastics. Choose a machine with variable speed control and adjustable pressure to accommodate different materials.
The size and shape of the workpiece will determine the type of machine needed. Wide belt sanders are suitable for large, flat surfaces, while profile sanders are better for contoured or shaped workpieces.
The desired finish will determine the grit size of the sanding belt and the type of brushes needed. Coarser grits are used for initial stock removal, while finer grits are used for final finishing.
Dust collection is essential for maintaining a clean and safe work environment. Choose a machine with an effective dust collection system to minimize airborne particles.
Choose a machine that is easy to operate and maintain. Look for features such as quick-change sanding belts, adjustable brushes, and accessible components.
Proper maintenance is essential for keeping belt brush sanding machines in good working condition and prolonging their lifespan.
Remove dust and debris from the machine after each use. Use a vacuum cleaner or compressed air to clean the sanding belt, brushes, and other components.
Check the sanding belt for wear and tear regularly. Replace the belt when it becomes worn or damaged.
Lubricate the moving parts of the machine regularly to ensure smooth operation. Use a high-quality lubricant recommended by the manufacturer.
Check the brushes for wear and tear regularly. Replace the brushes when they become worn or damaged.
Follow the manufacturer's instructions for maintenance and repair. This will help ensure the machine operates safely and efficiently.
1. What is the difference between a belt sander and a brush sander?
A belt sander uses a continuous loop of sandpaper to remove material from a surface, while a brush sander uses rotating brushes to smooth and finish the surface. Belt sanders are typically used for aggressive material removal, while brush sanders are used for finer finishing and contouring.
2. What are the benefits of using a belt brush sander?
Belt brush sanders offer several benefits, including improved surface quality, increased efficiency, reduced material waste, and enhanced safety. They produce a smoother, more consistent finish compared to manual sanding or other machine sanding methods.
3. What types of materials can be sanded with a belt brush sander?
Belt brush sanders can be used to sand a variety of materials, including wood, metal, plastics, and composites. The specific sanding parameters will vary depending on the material.
4. How do I choose the right belt brush sander for my needs?
Choosing the right belt brush sander depends on the specific application, workpiece material, and desired finish. Consider the size and shape of the workpiece, the desired finish, and the material being sanded.
5. What are some maintenance tips for belt brush sanders?
Proper maintenance is essential for keeping belt brush sanders in good working condition. Regularly clean the machine, inspect the sanding belt, lubricate moving parts, and follow the manufacturer's instructions.
Belt brush sanding machines are versatile and efficient tools for achieving high-quality surface finishes on a variety of materials. Whether you're a professional woodworker, metalworker, or hobbyist, a belt brush sander can help you achieve superior results in less time. By understanding the mechanics, applications, and benefits of these machines, you can make an informed decision when choosing the right sander for your needs.
