Automatic paint machines have transformed the painting and coating industry by delivering precision, efficiency, and consistency in surface finishing. This article explores the technology, components, applications, advantages, and future trends of automatic paint machines, supported by visual aids and videos to provide a thorough understanding of this advanced automation technology.

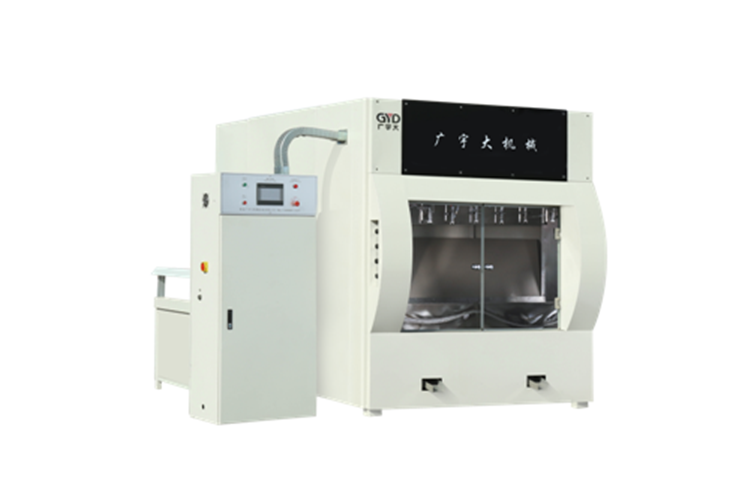

An automatic paint machine is a mechanized system designed to apply paint or coatings uniformly on various surfaces without manual intervention. These machines integrate automated control technology with mechanical systems to ensure precise paint application, reducing human error and enhancing production efficiency.
- Automated spray guns or robotic arms for paint application
- Programmable control systems for customized coating parameters
- Integrated paint supply and recycling systems
- Surface pretreatment and curing modules
- Quality inspection sensors for coating consistency
1. Spray Gun: The core device that atomizes and sprays paint evenly over the target surface.
2. Control System: Programmable logic controllers (PLC) or touch-screen interfaces allow operators to set parameters such as paint flow, pressure, speed, and spray patterns.
3. Paint Reservoir: Holds the paint and supplies it consistently to the spray gun.
4. Movement Mechanism: Robotic arms, conveyors, or gantries that move the spray gun or the product to ensure full surface coverage.
5. Pretreatment System: Cleans and prepares the surface by degreasing, rust removal, or sanding to improve paint adhesion.
6. Curing System: Uses heat, UV light, or natural drying to solidify the paint for durability.
7. Quality Inspection System: Cameras and sensors check paint thickness, uniformity, and color accuracy.
- Setup: Operators input the painting program, including paint type, thickness, and coverage area.
- Priming: The system primes the paint flow to avoid inconsistencies.
- Spraying: The machine applies paint automatically, following the programmed path.
- Curing: The painted item passes through drying or curing stations.
- Inspection: Automated systems verify coating quality to ensure standards.
Robotic arms equipped with spray guns provide high precision and flexibility, ideal for complex shapes and large-scale production lines such as automobiles and electronics.
These systems use conveyors to transport products through fixed spray booths, suitable for mass production of uniform items like doors or panels.
Utilize rollers to apply paint, typically for flat surfaces such as wooden doors or furniture panels, often combined with spray systems for finishing.
- Automobile Manufacturing: Ensures consistent paint quality and reduces waste.
- Wood Furniture: Automated systems coat panels and doors with primers and finishing layers.
- Gas Cylinders: Specialized machines spray paint efficiently on cylindrical surfaces with options for multi-color coatings.
- Glass Painting: Machines like the Goldglass M.R.C. 2350-CI offer dust-free, environmentally friendly paint application on glass surfaces.
- Home Appliances and Electronics: Automated lines provide uniform coatings for durability and aesthetics.
- Consistency and Quality: Uniform paint thickness and color reduce defects.
- Increased Productivity: Continuous operation with minimal downtime.
- Reduced Labor Costs: Automation decreases manual labor and associated errors.
- Paint Efficiency: Precise control minimizes paint waste.
- Environmental Benefits: Integrated extraction systems reduce fumes and overspray.
- Faster Curing: Technologies like UV curing speed up production cycles.
- Ensure proper calibration of spray guns for uniform coverage.
- Regularly clean paint reservoirs and spray nozzles to prevent clogging.
- Maintain conveyor and robotic movement systems for smooth operation.
- Monitor curing systems to avoid under- or over-curing.
- Implement routine inspections for sensors and control systems.
- AI and Machine Learning: Enhanced defect detection and adaptive spraying.
- Eco-Friendly Coatings: Integration with water-based and low-VOC paints.
- Advanced Robotics: Increased dexterity for complex shapes and multi-color applications.
- IoT Connectivity: Real-time monitoring and predictive maintenance.
- Energy-Efficient Curing: Improved UV and infrared curing technologies.
Q1: What surfaces can automatic paint machines handle?
A1: They can coat metals, wood, glass, plastics, and composites with appropriate pretreatment.
Q2: How do automatic paint machines improve paint efficiency?
A2: By precise control of spray parameters, reducing overspray and paint waste.
Q3: Are these machines suitable for small-scale production?
A3: While ideal for mass production, smaller models exist for limited runs with programmable flexibility.
Q4: What maintenance is required for automatic paint machines?
A4: Regular cleaning, calibration, and inspection of mechanical and electronic components.
Q5: Can automatic paint machines apply multiple colors?
A5: Yes, some machines have dual-color or multi-color capabilities for complex designs.
