In modern industrial manufacturing, the demand for high-quality surface finishing with efficiency and consistency has led to the widespread adoption of automatic paint spraying machines. These sophisticated systems automate the application of paint or coatings on various products, ranging from automotive parts to furniture panels. This article explores the technology, components, working principles, advantages, and future trends of automatic paint spraying machines, supported by multimedia to enhance understanding.

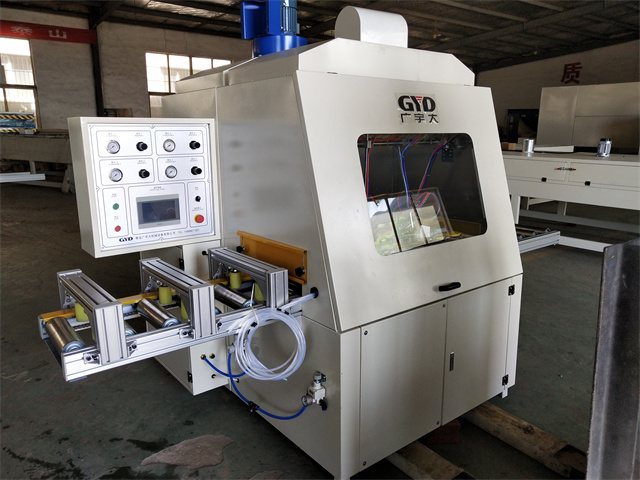

An automatic paint spraying machine is an engineered system that automates the process of applying paint or coatings to surfaces. It integrates mechanical automation, robotic arms or spray guns, conveyor systems, and control units to ensure precise, uniform, and efficient coating application without manual intervention.
- Robotic Arms or Spray Guns: These deliver paint with high precision and repeatability, often programmable for complex spray patterns.
- Conveyor Systems: Move workpieces through the painting process continuously.
- Control Units: Software-driven modules that customize spray parameters such as speed, pattern, and paint volume.
- Spray Nozzles: Designed to evenly distribute coating materials, including liquid, powder, or electrostatic paints.
Before spraying, workpieces undergo surface treatment such as degreasing, rust removal, and grinding to enhance paint adhesion.
Based on programmed parameters, the machine automatically sprays paint evenly over the surface. This can be done via:
- Liquid spray guns
- Powder coating systems
- Electrostatic spray systems that charge paint particles for better adhesion
Post-spraying, the coated items are dried or cured using methods like hot air drying, ultraviolet curing, or natural drying to ensure coating durability.
These systems feature fixed rails with multiple spray guns moving in a reciprocating motion, suitable for flat or moderately shaped objects. Workpieces move on belts or chains beneath the spray guns.
Workpieces are suspended and rotated to allow 360-degree coverage. Spray guns move vertically and horizontally to cover all surfaces, including complex shapes.
Highly flexible robotic arms equipped with spray guns can be programmed to paint complex geometries with precision.
- High Precision and Uniformity: Automated control ensures consistent coating thickness and quality.
- Increased Efficiency: Automated spraying can paint multiple pieces simultaneously, significantly boosting throughput.
- Reduced Paint Waste: Controlled spray volume minimizes overspray and material consumption.
- Improved Working Environment: Enclosed booths and air purification systems reduce operator exposure to paint fumes and dust.
- Cost Savings: Lower labor costs and reduced rework due to consistent quality.
- Automotive Manufacturing: Painting car bodies and parts with high precision.
- Furniture Production: Coating wood panels and kitchen doors.
- Home Appliances: Spraying consistent finishes on appliances.
- Electronics: Applying protective coatings on components.
- Electrostatic Spray Technology: Enhances paint adhesion and reduces waste.
- AI and Machine Learning Integration: For real-time quality monitoring and process optimization.
- Eco-Friendly Coatings: Use of water-based and powder coatings to reduce environmental impact.
- Advanced Robotics: Increasing flexibility for complex shapes and smaller batch sizes.
Q1: What types of coatings can automatic paint spraying machines handle?
A1: They can apply water-based, solvent-based, powder coatings, and electrostatic paints depending on the system configuration.
Q2: How do automatic spray machines improve paint quality?
A2: By ensuring uniform paint thickness, reducing human error, and enabling precise control over spray parameters.
Q3: Are automatic paint spraying machines suitable for small manufacturers?
A3: Yes, especially robotic arm systems with customizable programming can be scaled to different production volumes.
Q4: What maintenance is required for these machines?
A4: Regular cleaning of spray nozzles, calibration of sensors, and software updates to maintain optimal performance.
Q5: How do these machines impact environmental safety?
A5: They reduce paint overspray and fumes, often incorporate air filtration systems, and support eco-friendly coatings to minimize environmental impact.
Automatic paint spraying machines represent a significant advancement in industrial coating technology, delivering superior quality, efficiency, and environmental benefits. Their integration into manufacturing lines across various industries continues to grow, driven by innovations in robotics, control systems, and eco-friendly materials.
