Introduction to Automatic Paint Machines
Automatic paint machines have transformed the painting and coating industry by offering precision, efficiency, and consistency that manual painting cannot match. These machines are widely used across automotive, furniture, electronics, and manufacturing sectors to ensure high-quality finishes with minimal labor input. This article explores the technology behind automatic paint machines, their components, operation, benefits, and applications, supported by illustrative images and videos to enhance understanding.

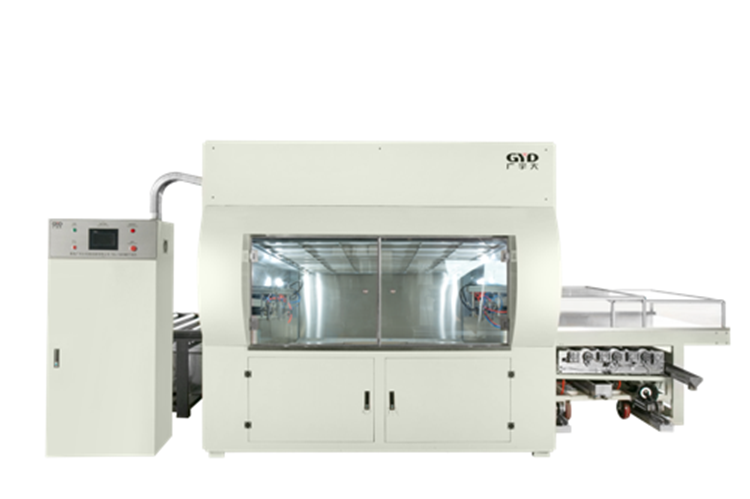

An automatic paint machine is a mechanized system designed to apply paint or coatings uniformly on various surfaces without manual intervention. It integrates automated control technology with mechanical systems to spray, coat, and cure paint efficiently, ensuring consistent quality and reducing waste.
The spray gun is the core component responsible for atomizing the paint into fine droplets and evenly distributing it over the target surface. Advanced spray guns use electrostatic or air-assisted technologies to improve transfer efficiency and reduce overspray.
The control system allows operators to program parameters such as paint flow rate, spray pressure, movement speed, and coating thickness. Modern systems feature touchscreen interfaces and PLC (Programmable Logic Controller) units for precise adjustments.
This component stores the paint and supplies it consistently to the spray gun. It often includes filters and agitators to maintain paint quality and prevent clogging.
Robotic arms or conveyor systems move the spray gun or the workpiece to ensure complete and uniform coverage. These mechanisms follow pre-set paths programmed into the control system.
Before painting, surfaces undergo pretreatment processes like degreasing and rust removal to enhance adhesion. After painting, curing systems such as hot air ovens or UV lamps solidify the coating, ensuring durability and finish quality.
Operators input the desired painting parameters into the control system, including paint type, coating thickness, and spray pattern.
Workpieces are cleaned and pretreated to remove contaminants that could affect paint adhesion.
The machine uses its spray gun to apply paint evenly, moving systematically over the surface according to programmed paths.
Painted items pass through curing systems-either UV curing or thermal ovens-to harden the coating quickly.
Sensors and visual inspection systems monitor paint thickness, color uniformity, and surface finish to ensure compliance with quality standards.
- Consistency and Quality: Automated systems ensure uniform paint application, reducing defects and rework.
- Increased Efficiency: Continuous operation and faster cycle times boost production capacity.
- Reduced Labor Costs: Automation minimizes the need for manual labor, lowering operational costs.
- Environmental Benefits: Precise paint delivery reduces overspray and waste, and integrated extraction systems minimize harmful emissions.
- Flexibility: Machines can be programmed for different paint types, colors, and product sizes.
- Automotive Industry: Painting car bodies and parts with high precision and repeatability.
- Furniture Manufacturing: Coating wood panels and doors with consistent finishes.
- Electronics: Applying coatings on electronic components for protection and aesthetics.
- Gas Cylinder Painting: Efficient multi-color painting on cylinders with fast cycle times.
- Glass Painting: Specialized machines for back-painting glass surfaces with environmental controls.
Q1: What types of paint can automatic paint machines handle?
A1: They can handle liquid paints, powder coatings, UV-curable paints, and specialized coatings like ceramic or organic paints.
Q2: How do automatic paint machines improve environmental safety?
A2: They reduce paint overspray and waste, use integrated fume extraction systems, and support fast curing methods like UV to minimize volatile organic compound emissions.
Q3: Can automatic paint machines be customized for different product sizes?
A3: Yes, machines are programmable and can be adjusted for various shapes and sizes, often using robotic arms or adjustable conveyors.
Q4: What maintenance is required for automatic paint machines?
A4: Regular cleaning of spray guns, checking and replacing filters, calibration of sensors, and software updates for control systems are typical maintenance tasks.
Q5: How do automatic paint machines ensure paint adhesion and durability?
A5: Through pretreatment processes like degreasing and rust removal before painting, and curing methods such as thermal or UV curing after application.
Automatic paint machines represent a significant advancement in industrial coating technology, combining automation, precision, and environmental responsibility. Their ability to deliver high-quality finishes consistently while reducing labor and waste makes them indispensable in modern manufacturing. As technology progresses, these systems will continue to evolve, offering even greater efficiency and versatility.
