Automatic painting machines have transformed the industrial coating landscape by delivering precision, efficiency, and consistency in painting processes. This article explores the technology behind automatic painting machines, their working principles, key features, future trends, and their impact across industries. Richly illustrated with images and videos, this comprehensive guide also answers common questions related to these advanced systems.

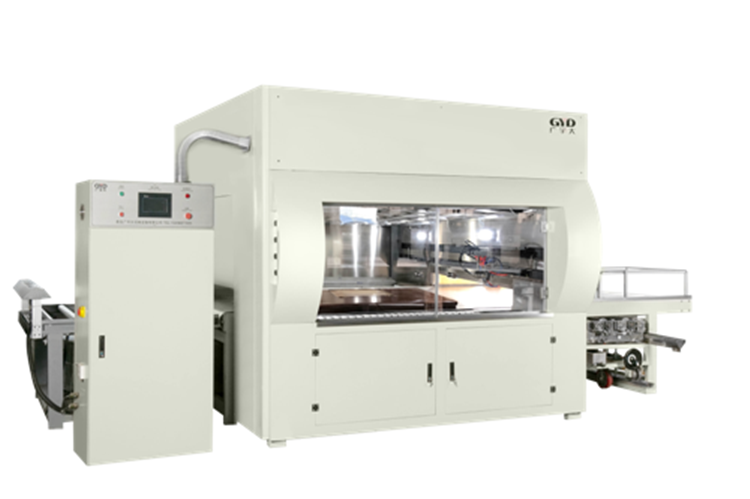

An automatic painting machine is a sophisticated system designed to apply paint or coatings on various surfaces with minimal human intervention. These systems typically integrate robotic arms or automated spray machines, conveyor belts for moving items, and control units for programming the painting process. They can handle different types of coatings, including water-based, solvent-based, and powder coatings, depending on industrial needs.
- Robotic Arms or Spray Machines: Provide precise and repeatable spray patterns.
- Conveyor Systems: Transport items steadily through the painting process.
- Control Units: Allow customization of spray parameters such as speed, pattern, and coating thickness.
- Spray Nozzles: Ensure even distribution of paint on surfaces.
Automatic painting machines operate through a series of programmed steps to ensure uniform coating:
1. 3D Scanning: The object to be painted is scanned using 3D technology to map its surface accurately.
2. Path Planning: Software optimizes the spray path, adjusting for complex shapes and conveyor movement.
3. Simulation: The painting path is simulated in a virtual environment to detect and correct errors.
4. Execution: The robot follows the programmed path, adjusting spray parameters in real-time for consistent coverage.
The end-effector, usually a spray gun or fluid dispenser, applies the paint. Sensors monitor paint flow rate, spray pressure, and environmental conditions to maintain quality.
- High Precision: Robots deliver uniform paint thickness, reducing waste.
- Increased Efficiency: Automated lines paint faster than manual labor.
- Cost Savings: Reduced labor and material waste lower operational costs.
- Improved Safety: Zero-contact systems minimize worker exposure to hazardous chemicals.
- Customization: Programmable spray patterns accommodate complex designs.
Automatic painting machines are widely used in:
- Automotive manufacturing for painting car bodies and parts.
- Woodworking industries for doors and furniture.
- Electronics for precise coating of components.
- Aerospace for uniform application on aircraft parts.
- General manufacturing for mass production of coated goods.
- Smart Manufacturing: IoT-enabled machines allow remote monitoring and real-time parameter adjustments.
- Predictive Maintenance: Sensors predict failures, reducing downtime.
- AI Optimization: Machine learning algorithms improve spray quality by detecting defects and adjusting parameters automatically.
- Advanced Robotics: Multi-axis robots handle complex geometries with ease.
- Customizable Spray Patterns: Operators can program intricate designs and mass customization.
- Digital Twins: Virtual replicas simulate and optimize painting processes before execution.
- Eco-Friendly Coatings: Machines adapt to water-based and UV-curable paints that reduce VOC emissions.
- Advanced Ventilation: Improved filtration systems protect workers from fumes.
1. Scan: Use 3D scanning to map the surface.
2. Plan: Develop an optimized spray path with software.
3. Simulate: Test the path virtually to avoid collisions and errors.
4. Deploy: Upload the program to the robot controller.
5. Autonomous Adaptation: The robot adjusts in real-time to ensure flawless painting.
Q1: What types of paint can automatic painting machines handle?
A1: They can apply water-based, solvent-based, powder coatings, and UV-curable paints depending on the machine configuration.
Q2: How much do automatic painting machines cost?
A2: Basic models start around $50,000, while advanced systems with AI and multi-axis robots can exceed $200,000.
Q3: Can these machines paint complex shapes?
A3: Yes, multi-axis robots and 3D scanning enable precise painting of complex geometries.
Q4: How do automatic painting machines improve worker safety?
A4: By automating spray processes and using enclosed booths with advanced ventilation, they minimize human exposure to harmful chemicals.
Q5: What industries benefit most from automatic painting machines?
A5: Automotive, woodworking, aerospace, electronics, and general manufacturing industries see significant improvements in quality and efficiency.
