In modern manufacturing, automation has become a cornerstone for enhancing productivity, quality, and cost-efficiency. Among various automated processes, the automated paint line stands out as a transformative technology that streamlines painting operations, reduces labor dependency, and ensures consistent high-quality finishes. This article delves into the key components, benefits, challenges, and future trends of automated paint lines, supported by visual aids and real-world examples.

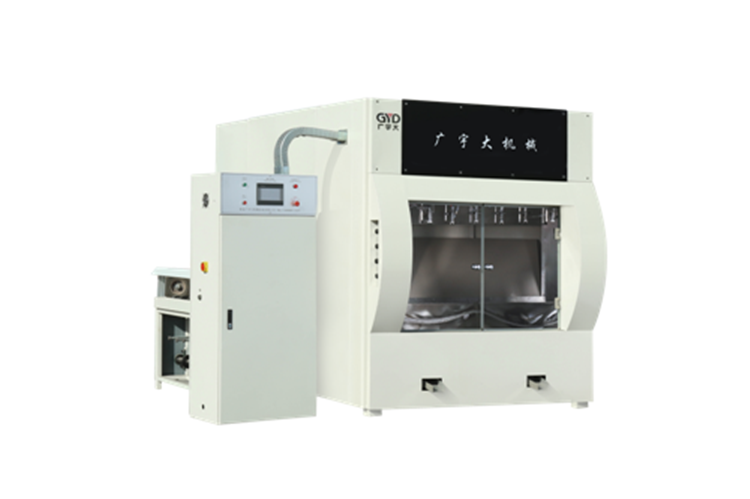

An automated paint line is a fully or semi-automated system designed to apply paint or coatings to products with minimal human intervention. It integrates robotic applicators, conveyor systems, paint preparation units, and curing ovens to create a seamless painting process from start to finish.
- Robotic Applicators: Robots equipped with spray guns or rotary atomizers that apply paint with precision and repeatability.
- Conveyor Systems: Transport products through various stages such as pre-treatment, painting, and curing.
- Paint Preparation Area: Automated paint kitchens that mix and supply paint to the applicators.
- Curing Ovens: Heat tunnels or ovens that cure the paint to ensure durability.
- Control Systems: Software and sensors that monitor and adjust parameters like spray pressure, paint flow, and conveyor speed for optimal performance.
Automating paint lines significantly reduces direct and indirect labor costs. Robots replace manual painters, reducing headcount and minimizing costly errors. Indirect savings come from less material handling, reduced training needs, and lower rework rates.
Robotic systems deliver precise, repeatable paint application, which eliminates human errors and subjective variability. This leads to uniform coatings, better surface finishes, and reduced contamination risks.
Automation allows faster changeovers and the ability to handle higher volumes. Robots can work multiple shifts without fatigue, and advanced control systems enable quick switching between different colors and product types.
Automated paint lines reduce overspray and paint waste, lowering volatile organic compound (VOC) emissions. They also improve worker safety by limiting human exposure to hazardous paint fumes.
Products are loaded onto the conveyor system, which may include lifts or drop sections to adjust product height. Pre-treatment processes such as cleaning or surface grinding can be integrated to prepare the substrate for painting.
Robotic arms equipped with spray guns or rotary atomizers apply paint as products move through the booth. Sensors detect product position to activate sprayers only when needed, minimizing paint waste.
Rotary atomizers deliver paint with high transfer efficiency and minimal overspray. Positioned close to the product (around 5 inches), they allow fine control over paint thickness and color consistency.
After painting, products pass through curing ovens or heat tunnels that dry and harden the paint. Automated systems control temperature and conveyor speed to ensure optimal curing.
Finished products are unloaded automatically and may undergo robotic or manual inspection to verify coating quality and completeness.
A company installed a fully automated paint line capable of finishing over 3,000 aluminum parts per shift in 10 to 20 colors. The system used rotary atomizers for precise paint application, reducing outsourcing and lead times while maintaining high quality.
Lindner integrated FANUC robots with dual application systems for wood stain and patina. The automation improved monthly output from 6,000 to 7,000 units and reduced shifts from three to two, cutting costs significantly.
Automated paint lines require significant upfront capital for robots, conveyors, and control systems. However, the return on investment (ROI) is often realized through labor savings, increased throughput, and reduced waste.
Each paint line must be tailored to product size, shape, and production volume. Integration with existing manufacturing systems and software is critical for smooth operation.
While automation reduces manual labor, it increases the need for skilled technicians to maintain and program robotic systems.
- Artificial Intelligence (AI) and Machine Learning: Enhancing robot programming for adaptive painting based on real-time feedback.
- Advanced Sensors: Improving defect detection and process control.
- Sustainability Focus: Further reducing paint waste and VOC emissions with smarter systems.
- Collaborative Robots (Cobots): Working alongside humans for flexible production.
Q1: What types of products are best suited for automated paint lines?
A1: Products with consistent shapes and sizes, such as automotive parts, aluminum windows, and industrial components, benefit most from automation due to repeatability and volume.
Q2: How does automation improve paint quality?
A2: Robots apply paint with precise, repeatable movements, eliminating human errors and ensuring uniform coverage and thickness.
Q3: Can automated paint lines handle multiple colors?
A3: Yes, modern systems can switch between 10 to 20 colors per shift with minimal downtime, using advanced control and paint supply systems.
Q4: What is the typical ROI timeframe for installing an automated paint line?
A4: ROI varies but typically ranges from 1 to 3 years depending on labor cost savings, throughput increases, and waste reduction.
Q5: Are there environmental benefits to automated paint lines?
A5: Yes, automation reduces overspray, paint waste, and VOC emissions, contributing to greener manufacturing processes.
