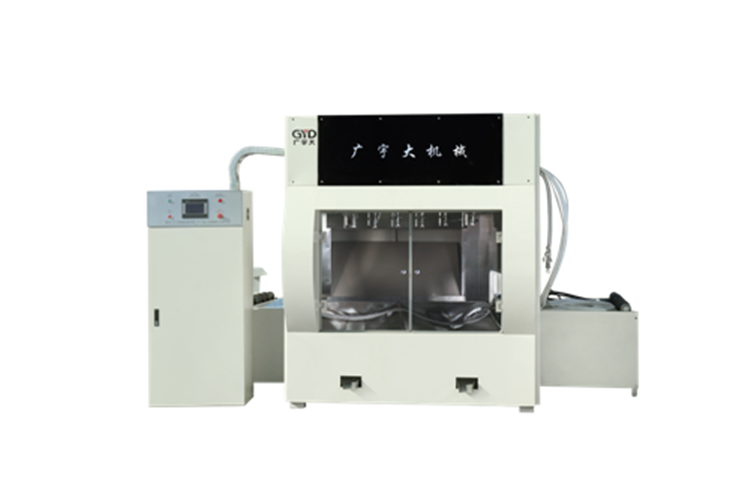

The automatic paint roller fire thermal bonding machine represents a significant advancement in the manufacturing of paint rollers, combining automation, precision, and efficiency. This technology enhances production speed and ensures consistent quality, making it an indispensable asset for modern manufacturing plants. This article explores the various aspects of this machine, including its components, functionalities, and benefits, with illustrative images and videos.
The automatic paint roller fire thermal bonding machine integrates several key components to streamline the manufacturing process. These include the loading mechanism, thermobonding unit, winding system, and control panel[1].
The automatic loading system ensures a continuous supply of pipes, maintaining consistent production[1]. This reduces manual labor and minimizes downtime, enhancing overall efficiency.
Equipped with thermobonding technology, this unit utilizes controlled heat to bond fabric to the roller core[1]. The thermofusion is suitable for PP pipes, with flame supervision and temperature adjustment for optimal bonding[1].
The winding system wraps the fabric around the core with precision, ensuring uniform coverage and a secure bond. The machine can wind up to 8 meters of wound tubes per minute, producing over 16,000 pieces of 9-inch rollers in an 8-hour shift[1].
The control panel allows operators to monitor and adjust machine settings, ensuring optimal performance. It provides real-time feedback and allows for quick adjustments to maintain quality and efficiency.
The adoption of automatic paint roller machines offers numerous advantages, making them a preferred choice in modern manufacturing environments.
* Increased Production Speed: These machines significantly increase production speed, with some models capable of producing over 2,000 pieces per hour[1].
* Reduced Labor Costs: Automation reduces the need for manual labor, lowering operational costs and minimizing human error[1].
* Consistent Quality: Automated processes ensure consistent quality in every product, reducing variations and improving overall product reliability[9].
* Material Efficiency: The machines are designed to optimize material usage, minimizing waste and further reducing costs[6].
Ideal for smaller rollers, this machine offers thermofusion capabilities similar to larger models but in a more compact form factor[1].
This machine specializes in winding fabric onto the roller core using thermofusion technology, ensuring a strong and durable bond[1].
This machine uses hot melt glue to adhere fabric to the roller core, providing an alternative bonding method that is both efficient and reliable[1].
This machine automatically slits fabric to the desired width for roller covers, ensuring precise and consistent cuts[9].
The manufacturing process using an automatic paint roller fire thermal bonding machine involves several key steps, each contributing to the final product's quality and performance.
The process begins with the extrusion of a plastic core, typically made of polypropylene, through a rotating extruder head[6]. This creates a cylindrical core that forms the base of the paint roller.
The extruded core then passes through a vacuum sizing and cooling chamber, where its dimensions are precisely set and stabilized[6]. This step ensures that the core meets the required specifications for size and shape.
Prior to bonding, the core undergoes plasma treatment to enhance adhesion[6]. This prepares the surface for the application of adhesive and ensures a strong bond between the core and the fabric.
An epoxy adhesive layer is then applied to the external surface of the core[6]. This adhesive provides a bonding agent for the fabric that will form the roller cover.
The core is heated and wrapped with fabric, which is then bonded to the core using the thermofusion process[1]. This step ensures that the fabric is securely attached and provides a uniform surface for paint application.
Finally, the fabric-wrapped core is cut into discrete paint rollers and finished to meet the required specifications[1]. This includes trimming excess fabric and ensuring that the roller is ready for use.
Quality control is a critical aspect of the manufacturing process, ensuring that each paint roller meets the required standards for performance and durability.
Raw materials, including plastic resins and fabrics, are inspected to ensure they meet quality standards. This prevents defective materials from entering the production process.
The dimensions of the core and finished roller are carefully measured to ensure they meet specified tolerances[6]. This ensures that the roller will fit properly and perform as expected.
The strength of the bond between the fabric and core is tested to ensure it can withstand the stresses of painting. This prevents the fabric from separating during use.
Finished paint rollers are tested for paint absorption, distribution, and overall performance. This ensures that the rollers provide a smooth and even paint application.
Regular maintenance is essential to ensure the continued performance and longevity of automatic paint roller machines.
* Cleaning: Regularly clean the machine to remove debris and adhesive buildup.
* Lubrication: Lubricate moving parts to reduce friction and prevent wear.
* Inspection: Inspect the machine regularly for signs of wear or damage.
* Replacement: Replace worn parts promptly to prevent further damage.
The future of automatic paint roller manufacturing is likely to be shaped by several key trends.
* Advanced Materials: The use of advanced materials, such as recycled plastics and sustainable fabrics, is expected to increase.
* Smart Automation: Integration of smart automation technologies, such as AI and machine learning, will further optimize production processes.
* Customization: Machines will become more adaptable, allowing for the production of customized paint rollers tailored to specific applications.
* Energy Efficiency: Focus on developing more energy-efficient machines to reduce environmental impact.
Q1: What is the production capacity of an automatic paint roller thermofusion machine?
A: An automatic paint roller thermofusion machine can produce approximately 2,000 pieces per hour[1]. Some machines can wind up to 8 meters of wound tubes per minute, producing over 16,000 pieces of 9-inch rollers in an 8-hour shift[1].
Q2: What types of materials can be used for the core of a paint roller?
A: The core of a paint roller is typically made of plastic, preferably polypropylene[6].
Q3: What are the main advantages of using an automatic paint roller machine?
A: The main advantages include increased production speed, reduced labor costs, consistent quality, and material efficiency[9][1].
Q4: What is the purpose of the thermobonding unit in the machine?
A: The thermobonding unit uses controlled heat to bond the fabric to the roller core, ensuring a secure and durable attachment[1].
Q5: How often should an automatic paint roller machine be maintained?
A: Regular maintenance should be performed to ensure optimal performance, including daily cleaning, weekly lubrication, and monthly inspections.
The automatic paint roller fire thermal bonding machine represents a significant advancement in paint roller manufacturing, offering increased efficiency, consistent quality, and reduced costs. As technology continues to evolve, these machines will play an increasingly important role in meeting the demands of the market.
