Auto painting machines have transformed the automotive industry and various manufacturing sectors by delivering consistent, high-quality finishes with enhanced efficiency. These automated systems replace manual spray painting, reducing waste, improving precision, and accelerating production. This article explores the technology, types, benefits, and future trends of auto painting machines, supported by visuals and videos to provide a thorough understanding.

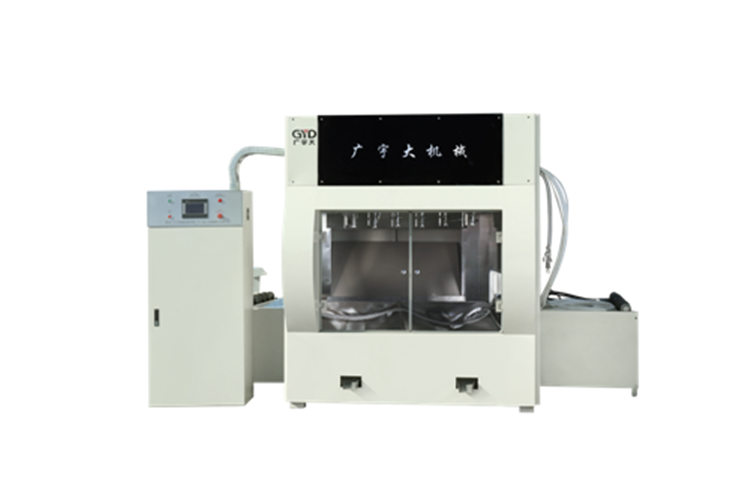

An auto painting machine is an automated system designed to apply paint coatings to vehicle bodies or other products. It typically includes a painting booth, robotic arms or spray guns, and control systems that ensure precise application of primers, base coats, and clear coats. These machines can handle complex shapes and surfaces with consistent quality, significantly reducing human error and paint wastage.
These machines use programmed spray guns to apply paint evenly on surfaces. They can be integrated into conveyor systems for continuous production lines. For example, automatic spray painting machines installed on coating line conveyors operate with preset programming for stable, continuous running without manual intervention.
Toyota developed a revolutionary airless paint atomizer that uses static electricity instead of air to atomize paint. This technology achieves over 95% coating efficiency, significantly higher than conventional methods that have about 60-70% efficiency. The electrostatic charge attracts paint particles directly to the vehicle body, reducing overspray and paint waste.
These machines specialize in painting both sides of wheels automatically, using either conventional spray guns or aerosols. They feature 360° rotation, dual-sided painting, and built-in curing systems like infrared and ultraviolet lamps for fast drying. They also offer a "Wheel Library" to save and recall paint settings for consistent finishes.
The painting booth is a controlled environment that contains the paint spray, minimizing contamination and ensuring worker safety. It usually has side walls, ceiling, and floor partitions defining the working space.
Spray guns atomize the paint into fine droplets for even application. Advanced systems use electrostatic atomization for better efficiency and reduced overspray.
Robotic arms equipped with sensors and programmable controls handle precise movements for consistent coating thickness and coverage.
Infrared (IR) and ultraviolet (UV) curing lamps accelerate drying times, improving production speed and finish durability.
- Consistent Quality: Automated systems ensure uniform paint thickness and finish across all products.
- Reduced Paint Waste: Technologies like electrostatic atomization achieve up to 95% coating efficiency, minimizing overspray.
- Increased Production Speed: Continuous operation and fast curing systems shorten cycle times.
- Environmental Benefits: Reduced paint consumption lowers VOC emissions and CO2 footprint.
- Cost Savings: Less paint waste and labor costs improve overall profitability.
- Safety: Enclosed booths and automated processes reduce worker exposure to harmful fumes.
Before painting, surfaces are cleaned and primed to ensure adhesion and durability.
The machine applies primer, base coat, and clear coat in programmed sequences. For example, the automatic wheel painting machine can switch seamlessly between primer, base color, and clear coat applications.
After each coat, IR or UV lamps cure the paint layer quickly to prevent defects.
Sensors and cameras may inspect the painted surface for defects, ensuring only flawless products proceed.
Toyota's airless paint atomizer uses a rotating cylindrical head with grooves that atomize paint via static electricity, maintaining a consistent 10 cm distance from the surface for high-quality finishes.
Some machines can paint different colors on various parts of a product simultaneously, such as gas cylinders with separate shoulder and body colors.
Machines like the wheel painting robot save paint settings for different models, enabling quick setup and consistent reproduction of finishes.
Auto painting machines are used in various industries including:
- Gas cylinder painting with dual-color options.
- Wood, metal, glass, plastic, and fiber cement products.
- Wheel refurbishing and customization.
- Industrial equipment and machinery coatings.
Q1: What is the main benefit of electrostatic paint atomization?
A1: It increases coating efficiency by over 95%, reducing paint waste and overspray.
Q2: Can auto painting machines handle multiple colors in one cycle?
A2: Yes, some machines can apply dual or multiple colors simultaneously, such as on gas cylinders or wheels.
Q3: How do automatic painting machines improve environmental impact?
A3: By reducing paint consumption and VOC emissions, they lower CO2 emissions and pollution.
Q4: Are these machines suitable for small workshops?
A4: Yes, many machines have compact designs and easy interfaces, suitable for both large factories and mobile workshops.
Q5: What types of curing systems are used in auto painting machines?
A5: Infrared (IR) and ultraviolet (UV) lamps are commonly used to cure paint layers quickly and efficiently.
Auto painting machines represent a significant advancement in surface coating technology, delivering superior quality, efficiency, and environmental benefits. From electrostatic atomizers to fully automated wheel painting robots, these systems are essential for modern manufacturing processes. Their integration reduces waste, enhances productivity, and supports sustainability goals, making them indispensable in the automotive and related industries.
