Automatic spray paint systems have transformed the painting and coating industry by introducing precision, efficiency, and consistency that manual painting cannot match. These systems are widely used in automotive, aerospace, electronics, construction, and packaging industries to deliver high-quality finishes with reduced waste and labor costs. This article explores the technology behind automatic spray paint systems, their components, working principles, applications, benefits, and future trends.

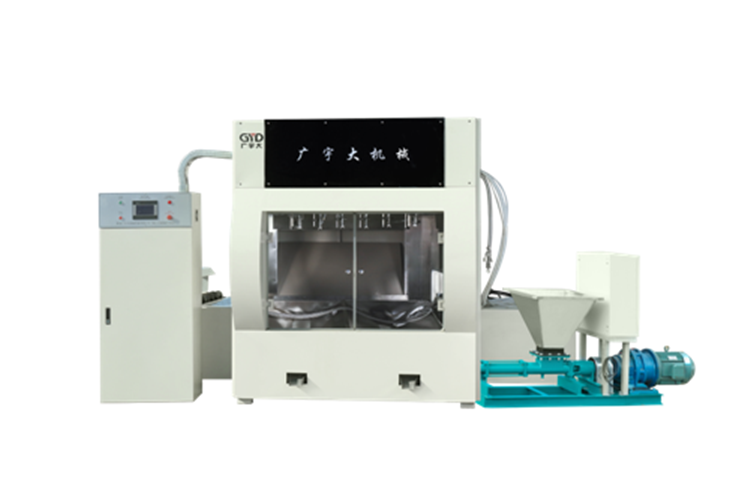

An automatic spray paint system is an integrated technological solution that uses robotics, sensors, and computer controls to apply paint or coatings to surfaces with minimal human intervention. These systems ensure uniform application, reduce paint waste, and increase production speed, making them ideal for industries requiring consistent and high-quality finishes.
Robotic arms equipped with spray guns are the core of automatic spray paint systems. These arms move along multiple axes to cover surfaces evenly, including hard-to-reach areas. Spray guns atomize paint into fine droplets, applying it uniformly. Types of spray guns include air-assisted, airless, and electrostatic spray guns, each suited for different coating needs.
Conveyor systems transport products through various stages of the painting process, including pre-treatment, painting, and drying. This continuous movement ensures smooth workflow and synchronization with robotic spray operations.
These units store and deliver paint to spray guns through pumps, hoses, and pressure regulators, maintaining consistent flow and pressure for optimal application.
Advanced sensors and cameras detect object size, shape, and position, enabling precise adjustment of spray patterns for even coverage, especially on complex geometries.
Programmable Logic Controllers (PLCs) coordinate all system components, controlling robotic movements, paint flow, and conveyor speed to ensure synchronized operation.
Before painting, surfaces undergo cleaning and priming via automated pre-treatment stations. After painting, curing or drying stations use heat or UV light to solidify the coating quickly.
Paint booths provide a controlled environment with ventilation and filtration systems to manage overspray, maintain air quality, and ensure worker safety.
Automatic spray paint systems integrate robotics, sensors, and software to perform precise and consistent painting. The workflow typically involves:
1. Pre-treatment: Cleaning and surface preparation to remove contaminants.
2. Positioning: Products are placed on conveyors and detected by sensors.
3. Painting: Robotic arms apply paint using programmed spray patterns, adjusting for object shape and size.
4. Curing: Painted items pass through drying tunnels or ovens.
5. Quality Control: Vision systems inspect the finish for defects.
This integration reduces human error, paint waste, and production time while improving finish quality.
Automatic spray paint systems are extensively used for painting car bodies, bumpers, and parts. Robotic arms provide consistent coverage, reduce labor costs, and improve finish quality.
These systems coat aircraft fuselage parts, wings, and interiors with lightweight, high-performance coatings to meet strict industry standards.
Automatic spraying applies protective coatings on electronic casings and circuit boards, shielding them from moisture, dust, and corrosion.
Walls, ceilings, and moldings are painted using automated systems that deliver smooth, uniform coatings with various paint types.
Coatings on glass, plastic, and metal packaging containers enhance decoration, protection, and functionality.
- Consistency: Eliminates human variability, ensuring uniform coatings.
- Speed: Faster application increases throughput.
- Precision: Advanced sensors and robotics deliver accurate paint placement.
- Material Efficiency: Reduces paint waste through controlled application and electrostatic attraction.
- Labor Savings: Minimizes manual labor and associated costs.
- Safety: Enclosed booths and ventilation reduce exposure to harmful fumes.
Recent advancements include intelligent nozzle technologies that regulate droplet size and spray patterns with high precision, minimizing material waste and improving finish quality. Integration of AI and vision systems allows real-time adjustments based on surface conditions, further enhancing efficiency and adaptability.
Q1: What industries benefit most from automatic spray paint systems?
A1: Automotive, aerospace, electronics, construction, and packaging industries benefit greatly due to their need for precision, consistency, and efficiency.
Q2: How do electrostatic spray systems reduce paint waste?
A2: They charge paint particles electrically, attracting them to grounded objects, which minimizes overspray and paint loss.
Q3: Can automatic spray paint systems handle complex shapes?
A3: Yes, sensors and robotic arms adjust spray patterns to cover complex geometries evenly.
Q4: What maintenance is required for automatic spray paint systems?
A4: Regular cleaning of spray guns, calibration of sensors, and software updates are essential to maintain performance.
Q5: Are automatic spray paint systems environmentally friendly?
A5: They reduce paint waste and overspray, improving material efficiency and lowering environmental impact compared to manual spraying.
Automatic spray paint systems have revolutionized the coating industry by combining robotics, sensors, and intelligent control to deliver superior finishes with enhanced efficiency and reduced waste. Their applications span multiple industries, and ongoing innovations continue to push the boundaries of precision and automation in surface coating.
