Automatic spray paint machines have transformed the painting and coating industry by offering precision, efficiency, and consistency in applying paint or coatings on various surfaces. These machines are widely used across industries such as automotive, furniture, metal fabrication, and gas cylinder manufacturing. This article explores the technology behind automatic spray paint machines, their components, applications, benefits, and future trends, supported by illustrative images and videos to provide a clear understanding of their operation and advantages.

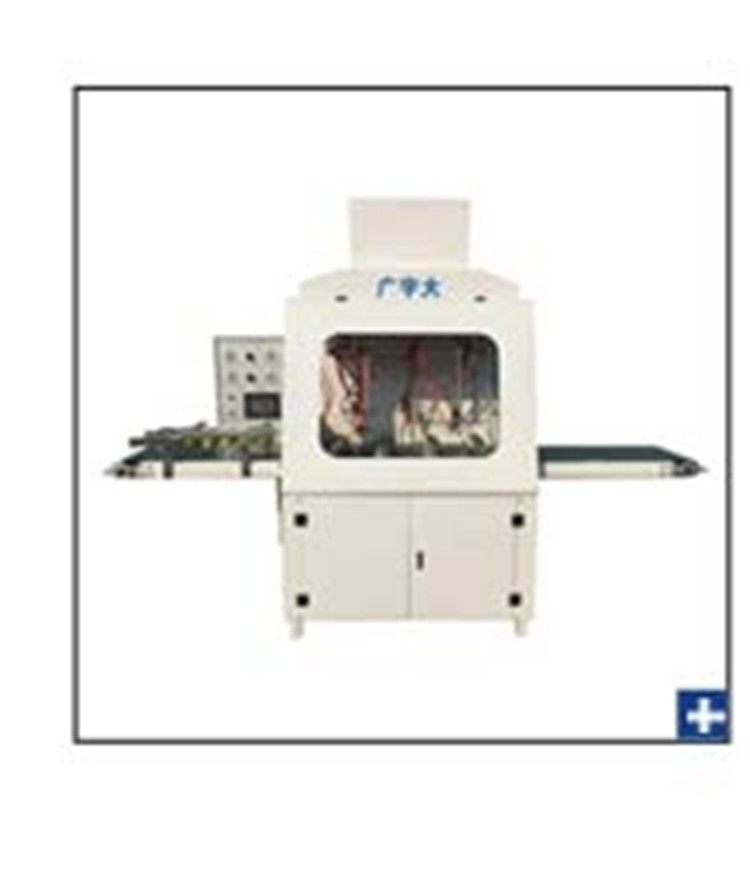

An automatic spray paint machine is a highly engineered system designed to automate the application of paint or coatings on products. It typically integrates robotic arms or spray guns with conveyor systems to ensure precise, repeatable, and uniform paint application without manual intervention.
- Robotic Arms or Spray Guns: These provide controlled and consistent spraying, with some models featuring multiple spray guns positioned at different angles to cover all surfaces uniformly.
- Conveyor Systems: Move the items through the painting process, ensuring smooth and continuous operation.
- Control Systems: Programmable logic controllers (PLCs) and touchscreens allow easy setup and adjustment of spraying parameters such as paint thickness, spray position, and timing.
- Drying Systems: Integrated drying units ensure fast curing of painted surfaces, enhancing production speed.
The process begins with loading the workpieces onto a conveyor or rotary system. The machine then moves the items into the spray booth, where multiple spray guns apply paint from various angles. The spray guns are often servo-controlled for precision, and the system can repeat spraying cycles as needed to achieve the desired coating thickness.
Ideal for flat or slightly contoured surfaces such as wood panels or metal sheets. These systems move products horizontally through spray booths.
Designed for vertically oriented products like doors or cabinets, allowing efficient coating on all sides.
These use high-speed rotating nozzles to atomize paint, providing superior finishing quality and efficiency.
Some machines are equipped to apply multiple colors simultaneously or sequentially, useful for products requiring complex paint schemes, such as gas cylinders with dual-color painting.
- Automotive Industry: Painting car bodies and parts with high precision and repeatability.
- Woodworking: Coating wooden doors, furniture, and panels with consistent finishes.
- Metal Fabrication: Applying protective and decorative coatings on metal parts.
- Gas Cylinders: Fast and efficient painting of cylinders with options for multi-color applications.
- Improved Consistency and Quality: Automated systems ensure uniform paint thickness and coverage, reducing defects.
- Increased Efficiency: Faster production times and reduced manual labor requirements.
- Cost Savings: Lower labor costs and reduced paint wastage due to precise application.
- Enhanced Safety: Minimizes worker exposure to hazardous fumes and chemicals.
- Customization: Machines can be tailored to specific production needs, including product size, paint type, and color changes.
Modern spray guns, such as the Nordson A7A Modular Automatic Airless Spray Gun, offer fine atomization and controllable spray patterns, improving finish quality.
Electrostatic systems charge paint particles, improving transfer efficiency and reducing overspray.
Touchscreen interfaces and PLCs allow real-time monitoring and precise control of spraying parameters.
- Ensure proper calibration of spray guns for consistent paint flow.
- Regularly clean nozzles and filters to prevent clogging.
- Maintain conveyor and robotic systems for smooth operation.
- Use compatible paints and solvents recommended by the machine manufacturer.
Q1: What types of paints can be used in automatic spray paint machines?
A1: Most machines support water-based, solvent-based, and powder coatings, depending on the system specifications.
Q2: Can automatic spray paint machines handle irregularly shaped objects?
A2: Yes, machines with robotic arms and rotary atomizers are designed to coat complex 3D surfaces uniformly.
Q3: How does electrostatic spray painting improve efficiency?
A3: Electrostatic charging causes paint particles to adhere better to the surface, reducing overspray and paint waste.
Q4: What is the typical cycle time for painting gas cylinders?
A4: Some machines can paint up to six gas cylinders in about two minutes, including dual-color applications.
Q5: Are automatic spray paint machines suitable for small businesses?
A5: Entry-level models with integrated controls and compact footprints are available, making automation accessible to small and medium enterprises.
Automatic spray paint machines represent a significant advancement in surface finishing technology, delivering high-quality, efficient, and cost-effective painting solutions across various industries. Their precision, automation, and adaptability make them indispensable for modern manufacturing processes.
