The sandwich panel production line is a sophisticated manufacturing system designed to produce insulated composite panels widely used in construction, refrigeration, and industrial applications. These panels typically consist of two outer metal sheets bonded to an insulating core material such as expanded polystyrene (EPS), polyurethane (PU), polyisocyanurate (PIR), or mineral wool. This article provides an in-depth exploration of the sandwich panel production line, detailing its components, production process, types of panels, technological advancements, and quality control measures. Visual aids including diagrams, photos, and videos are integrated throughout to enhance understanding.

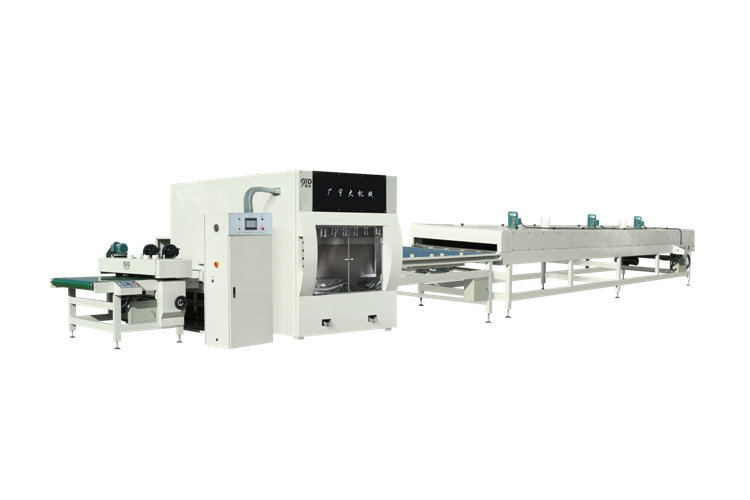

A sandwich panel production line is an integrated assembly of machines and equipment that continuously manufacture sandwich panels by combining metal facings with an insulating core. The line automates the entire process from raw material feeding to panel cutting and packaging, ensuring high efficiency and product consistency.
- Metal Coil Uncoiler: Feeds metal sheets (steel, aluminum, or pre-painted metal) into the line.
- Roll Forming Machine: Shapes the metal sheets into the desired profile for panel facings.
- Foam Applicator: Dispenses the insulating foam (EPS, PU, PIR) onto one metal sheet.
- Curing Oven or Double Belt Press: Applies heat and pressure to cure the foam and bond the layers.
- Panel Assembly Unit: Combines the two metal sheets with the foam core.
- Cutting Machine: Cuts panels to specified lengths.
- Stacking and Packaging Equipment: Automates stacking and wrapping for shipment.
The process begins by uncoiling metal sheets, which are then fed into the roll forming machine. This machine shapes the sheets into the required profile, which can be flat or corrugated depending on the panel design.
A precise amount of insulating foam is applied onto the shaped metal sheet. For EPS panels, expanded polystyrene beads are molded and adhered; for PU and PIR panels, liquid foam components are mixed and injected between the metal sheets.
The foam is cured using heat and pressure in a continuous double belt press or curing oven. This step ensures the foam expands, solidifies, and bonds firmly with the metal facings.
After curing, the continuous sandwich panel is cut into desired lengths using a cross-cut saw. Additional finishing processes such as trimming edges or applying protective coatings may be performed.
Finished panels are stacked automatically and wrapped with protective film for transportation and storage.
- Core: Expanded Polystyrene (EPS)
- Features: Lightweight, good thermal insulation, cost-effective
- Applications: Walls, roofs, cold storage
- Core: Polyurethane (PU) or Polyisocyanurate (PIR)
- Features: Higher thermal resistance, fire retardant (especially PIR), moisture resistant
- Applications: Industrial buildings, clean rooms, refrigerated warehouses
- Core: Mineral wool (rock wool)
- Features: Excellent fire resistance, sound insulation
- Applications: Fireproof walls, soundproof partitions
Modern sandwich panel production lines incorporate advanced features such as:
- PLC Computerized Control Systems: For precise control over production parameters, ensuring consistent quality.
- Automatic Feeding and Stacking: Reduces manual labor and increases throughput.
- Variable Speed and Thickness Adjustment: Allows production of panels with thickness ranging from 20 mm to 300 mm and speeds up to 16 meters per minute.
- Multi-component Metering Machines: For accurate dosing of foam components, improving foam quality and uniformity.
To maintain high standards, producers implement:
- Real-time Monitoring: Using sensors and software to track temperature, pressure, and foam density.
- Adhesion Testing: Ensuring strong bonding between core and metal sheets.
- Thermal Performance Testing: Confirming insulation properties meet specifications.
- Fire Resistance Testing: Especially critical for PIR and mineral wool panels.
- Energy Efficiency: Panels provide superior insulation, reducing heating and cooling costs.
- Sustainability: Use of recyclable materials and energy-efficient production processes.
- Cost-Effectiveness: Automated lines reduce labor costs and increase production speed.
Q1: What materials are commonly used for sandwich panel cores?
A1: Common core materials include expanded polystyrene (EPS), polyurethane (PU), polyisocyanurate (PIR), and mineral wool.
Q2: How fast can a sandwich panel production line operate?
A2: Production speeds vary but can reach up to 16 meters per minute depending on panel thickness and line configuration.
Q3: What is the typical thickness range for sandwich panels?
A3: Thickness ranges from 20 mm to 300 mm, adjustable based on application needs.
Q4: How is the foam applied and cured in the production process?
A4: Foam is either molded (EPS) or injected as liquid (PU/PIR) between metal sheets and cured under heat and pressure using a double belt press or oven.
Q5: Can sandwich panel lines produce panels with different metal facings?
A5: Yes, lines can accommodate various metal sheets including galvanized steel, aluminum, and pre-painted metals.
