Steel Fire Door Manufacturing Machine: Comprehensive Guide to Production Process, Technology, and Quality Standards

Views: 379     Author: GYD     Publish Time: 2025-05-17      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button

Content Menu

Title

Introduction

Understanding Steel Fire Doors

>> What Are Steel Fire Doors?

>> Importance of Fire Rated Doors

Overview of Steel Fire Door Manufacturing Machines

>> Types of Machines Used

>> Key Features of Roll Forming Machines

Detailed Steel Fire Door Production Process

>> Material Selection and Preparation

>> Cutting and Punching

>> Forming and Bending

>> Welding and Assembly

>> Core Insertion

>> Surface Treatment

>> Hardware Installation

>> Labeling and Packaging

Quality Control and Standards

>> Production Standards

>> Certification and Testing

Innovations in Steel Fire Door Manufacturing Machines

>> Automation and Integration

>> Material Efficiency

Frequently Asked Questions (FAQs)

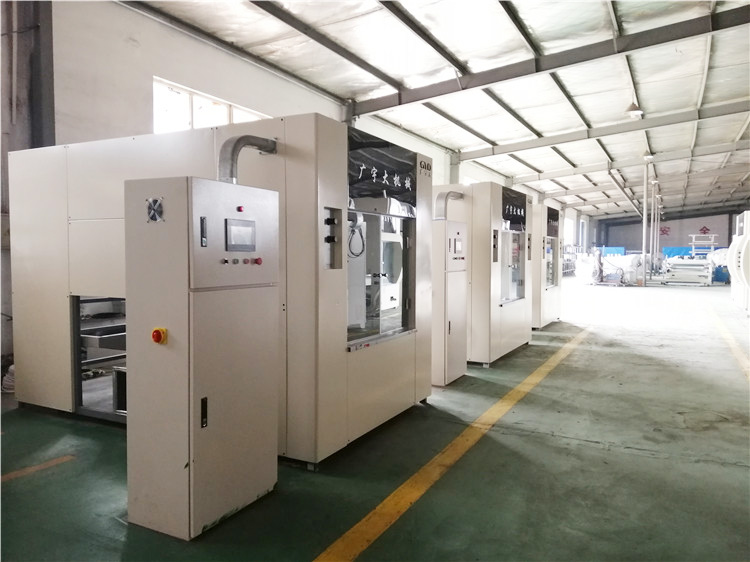

steel Fire Door Manufacturing Machine (2)

Introduction

Steel fire doors are critical components in building safety, designed to prevent the spread of fire and smoke while providing durability and security. The manufacturing of these doors involves sophisticated machinery and precise processes to meet stringent fire resistance standards. This article explores the steel fire door manufacturing machine, detailing the production process, key machinery involved, quality control, and innovations in the industry. Visual aids including images and videos are integrated to enhance understanding.

Understanding Steel Fire Doors

What Are Steel Fire Doors?

Steel fire doors are specially designed doors made primarily from steel, equipped with fire-resistant cores and seals. They provide a barrier against fire and smoke, protecting lives and property during emergencies.

Importance of Fire Rated Doors

Fire rated doors must comply with national and international fire safety standards, ensuring they can withstand fire for a specified period, typically 30, 60, or 90 minutes.

Overview of Steel Fire Door Manufacturing Machines

Types of Machines Used

- Roll Forming Machines: Used for shaping steel sheets into door panels and frames with high precision and speed.

- Punching Machines: For cutting precise openings for hardware such as locks, hinges, and vision panels.

- Press Brakes: For bending steel sheets to form door edges and frames.

- Welding Equipment: Spot welding machines join door components securely.

- Powder Coating Machines: For surface finishing, providing corrosion resistance and aesthetic appeal.

Key Features of Roll Forming Machines

- Automatic width control for various door sizes.

- Sequential processing of inner and outer plates.

- High production speeds (12–16 meters per minute).

- Ability to handle different steel materials like mild steel, galvanized steel, and stainless steel.

Detailed Steel Fire Door Production Process

Material Selection and Preparation

- Selection of galvanized steel sheets with uniform coating and thickness tolerance of ±0.06mm.

- Inspection for surface defects such as rust, creases, or burrs.

- Cutting steel sheets to precise dimensions according to design specifications.

Cutting and Punching

- Steel plates are cut using shearing machines to required sizes.

- CNC turret punch presses create holes for locks, hinges, and other hardware with high precision.

Forming and Bending

- Press brakes bend steel sheets to form door edges and frames with a tolerance of ±0.5° on bends.

- Door frames and panels are shaped to ensure perfect fit and structural integrity.

Welding and Assembly

- Reinforcement plates for hinges and locks are spot welded with spacing between welds of 20–30mm.

- Full welding of door frame joints ensures strength and fire resistance.

- Welds are ground smooth for finishing.

Core Insertion

- Fire-resistant cores such as polystyrene, honeycomb, or steel stiffened cores are inserted into the door shell.

- Core materials provide insulation and prevent flame spread.

Surface Treatment

- Doors undergo cleaning and oil removal before powder coating.

- Powder coating is applied evenly and baked at controlled temperatures for durability.

- Final inspection ensures smooth, defect-free surfaces and color consistency.

Hardware Installation

- Fire-rated hinges, seals, and door closers are installed.

- Fireproof rubber strips are applied to door edges to enhance smoke sealing.

Labeling and Packaging

- Doors are labeled with fire rating, material information, and certification marks.

- Protective PVC strips are applied before storage or shipment.

Quality Control and Standards

Production Standards

- Dimensional tolerances: diagonal difference ≤ 2mm, width and length ± 1mm.

- Welding quality: no false welding, burn-through, or air holes.

- Surface finish: smooth, uniform powder coating without defects.

Certification and Testing

- Doors undergo fire resistance testing according to UL or equivalent standards.

- Certification labels ensure compliance and traceability.

Innovations in Steel Fire Door Manufacturing Machines

Automation and Integration

- Modern machines integrate cutting, punching, forming, and welding into continuous production lines.

- Automated control systems reduce human error and increase throughput.

Material Efficiency

- Advanced roll forming techniques minimize waste.

- Use of galvanized and annealed steel improves paint adhesion and corrosion resistance.

Frequently Asked Questions (FAQs)

Q1: What materials are used in steel fire door manufacturing?

A1: Typically galvanized steel sheets, mild steel, stainless steel, and fire-resistant core materials like polystyrene or honeycomb are used.

Q2: How long does the manufacturing process take?

A2: Depending on automation level, a single door can be produced within hours, with continuous production lines enhancing speed.

Q3: What certifications do steel fire doors require?

A3: Common certifications include UL (Underwriters Laboratories), Warnock Hersey, and other national fire safety standards.

Q4: Can the manufacturing machines handle custom door sizes?

A4: Yes, modern roll forming and punching machines have adjustable settings to accommodate various door dimensions.

Q5: How is the fire resistance of the door ensured?

A5: Through material selection, core insertion, precise welding, and installation of fire seals, followed by rigorous testing.
