In modern spray painting operations, maintaining clean and well-functioning paint guns is crucial for achieving high-quality finishes and operational efficiency. Automatic paint gun cleaning machines have revolutionized this maintenance process by providing fast, thorough, and hands-free cleaning. This article explores the technology behind automatic paint gun cleaning machines, their benefits, key features, and practical considerations for selecting and using these systems effectively.

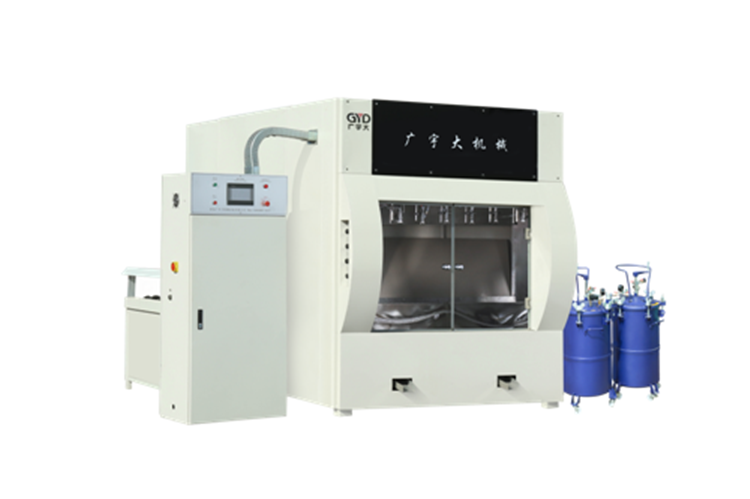

An automatic paint gun cleaning machine is a specialized device designed to clean spray guns used in painting applications. These machines automate the cleaning process, which traditionally required manual disassembly and solvent washing. By using programmed cleaning cycles, jets, brushes, and solvent circulation, these machines ensure thorough internal and external cleaning of spray guns, removing paint residues from primers, clear coats, and other coatings.
- The spray gun is placed inside the cleaning chamber or tank.
- The machine pumps solvent through multiple jets to clean internal passages and external surfaces.
- Some models include brushes and air purging systems to remove residual solvent and paint.
- Cleaning cycles are timed and controlled automatically, often with safety features like lid sensors that stop operation if opened.
- Solvent is filtered and sometimes recycled to reduce waste.
Automatic cleaning machines can clean one or multiple spray guns simultaneously in just a few minutes, significantly reducing downtime compared to manual cleaning.
The programmed cycles and multi-jet solvent flow ensure consistent and thorough cleaning, minimizing human error and improving paint finish quality.
Operators are freed from the labor-intensive manual cleaning process, allowing them to focus on other tasks during the cleaning cycle.
Many machines reuse filtered solvent within the cleaning cycle, reducing solvent consumption and operational costs.
Closed cleaning systems with fume extraction reduce operator exposure to harmful solvents and volatile organic compounds (VOCs), improving workplace safety and environmental compliance.
- Machines vary in tank size and capacity, from single-gun cleaners to models that clean multiple guns simultaneously.
- Larger tanks accommodate bulkier guns and allow batch cleaning.
- Fully automatic cycles for hands-free operation.
- Manual cleaning options for spot cleaning or delicate parts.
- Air purge functions to blow out solvent and dry internal passages.
- Stainless steel and brass components prevent rust and contamination.
- Durable build quality ensures longevity in demanding shop environments.
- Lid safety switches to stop pumps when opened.
- Integrated fume extraction systems.
- ATEX compliance for hazardous area operation.
- Suitable for solvent-based and waterborne paints.
- Some machines offer interchangeable chemistries for different paint types.
- Cleans two spray guns in under two minutes.
- Features a stainless steel wash tank with 14 jets.
- Includes timer, dual diaphragm pump, and fume extraction.
- Safety lid shut-off and solvent filtration system.
- Suitable for solvent and water-based paints.
- Manual and automatic modes.
- Air purge and final rinse functions.
- Stainless steel and brass construction.
- Compact design ideal for body shops.
- Cleans two spray guns simultaneously.
- Equipped with fluid pumps, cleaning brushes, and nozzles.
- Automatic stop when lid opens.
- Low solvent use due to solvent recycling.
- Fully stainless steel construction.
1. Preparation: Remove excess paint from the spray gun and disassemble if required.
2. Loading: Place the spray gun(s) into the cleaning chamber and close the lid securely.
3. Select Cycle: Choose the appropriate cleaning program based on paint type and gun model.
4. Start Cleaning: Activate the automatic cycle; the machine will pump solvent through jets and brushes.
5. Air Purge: Use the air purge function to dry the gun's internal passages.
6. Final Rinse: Run a clean solvent rinse to remove any remaining residues.
7. Unload and Inspect: Open the lid after the cycle stops, remove the gun, and inspect for cleanliness.
8. Reassemble and Store: Reassemble the gun and store it properly for the next use.
- Regularly clean and replace solvent filters to maintain solvent purity.
- Inspect and clean jets and brushes to prevent clogging.
- Check seals and hoses for wear and replace as needed.
- Follow manufacturer guidelines for periodic servicing.
- Ensure proper ventilation and fume extraction systems are operational.
Q1: Can automatic paint gun cleaning machines handle both solvent-based and water-based paints?
A1: Yes, many machines are compatible with both paint types, often using different cleaning chemistries tailored for solvent-based or waterborne paints.
Q2: How long does a typical automatic cleaning cycle take?
A2: Cleaning cycles usually last between 1 to 3 minutes depending on the machine and the paint residue.
Q3: Are automatic cleaning machines safe for all types of spray guns?
A3: Most machines are designed to accommodate common spray guns, but it's important to verify compatibility with your specific gun model.
Q4: What maintenance is required for these machines?
A4: Regular filter changes, cleaning of jets and brushes, and inspection of seals and hoses are necessary to ensure optimal performance.
Q5: Do automatic paint gun cleaning machines reduce solvent usage?
A5: Yes, by recycling and filtering solvent during cleaning cycles, these machines significantly reduce solvent consumption and waste.
Automatic paint gun cleaning machines are indispensable tools for modern painting operations, offering significant improvements in cleaning efficiency, consistency, and safety. By automating the cleaning process, shops can reduce downtime, lower labor costs, and achieve superior paint finishes. When selecting a machine, consider capacity, paint compatibility, safety features, and maintenance requirements to find the best fit for your workflow.
