Spray painting machines have revolutionized the way surfaces are coated, providing efficiency, uniformity, and speed across industries. This comprehensive article explores the technology behind spray painting machines, their types, working principles, applications, and maintenance tips, supplemented with visual aids and videos to enhance understanding.
A spray painting machine is a device designed to apply paint or coating materials onto surfaces by atomizing the paint into fine droplets and spraying it evenly. These machines can be handheld or integrated into automated systems, widely used in automotive, manufacturing, construction, and decorative industries.
Airless spray painting uses high fluid pressure to atomize paint by forcing it through a small nozzle orifice without the use of compressed air. The paint is pumped at pressures as high as 3000 psi, breaking it into tiny droplets that form a consistent coating. This method reduces overspray and bounce-back, making it ideal for large surfaces and thick coatings.
Key Features:
- High pressure pump (electric, pneumatic, or petrol engine)
- Adjustable pressure for flow rate control
- Suitable for heavy-duty and large-scale projects
HVLP systems use a high volume of air at low pressure to atomize paint, producing a softer spray with less overspray and better control. These are preferred for fine finishes, furniture, and automotive painting where precision is critical.
Electrostatic sprayers charge paint particles electrically, which then adhere more evenly to the surface due to electrostatic attraction. This method reduces paint waste and improves coating uniformity, especially on complex shapes and metal surfaces.
These use a rapidly spinning cup or disc to atomize paint, delivering a circular or fan-shaped spray. They are often used on automated conveyor lines for continuous coating applications.
- Pump: Pressurizes the paint to atomize it.
- Spray Tip/Nozzle: Determines spray pattern and droplet size.
- Hose: Transfers paint from the container to the spray gun.
- Spray Gun: Controls paint flow and atomization.
- Power Source: Electric, pneumatic, or petrol engine.
1. Preparation: Paint is strained to remove debris and loaded into the machine.
2. Pressurization: The pump pressurizes the paint.
3. Atomization: Paint is forced through the nozzle, breaking into fine droplets.
4. Spraying: The operator or robot applies paint evenly on the target surface.
5. Drying/Curing: Painted parts undergo drying or curing to solidify the coating.

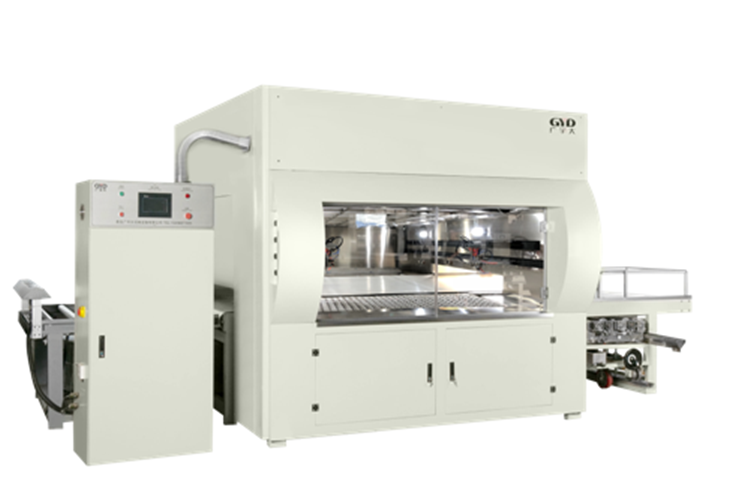

Modern spray painting lines integrate conveyors, robotic arms, and sensors to automate the entire painting process for industrial applications. The workflow includes:
- Pre-treatment: Cleaning and surface preparation for adhesion.
- Loading: Parts are placed on conveyors or hanging systems.
- Painting: Robots or automated sprayers apply paint using HVLP, airless, or electrostatic methods.
- Drying: Parts pass through ovens for curing.
- Inspection: Quality control via cameras and sensors ensures uniform coating.
- Unloading: Finished parts are removed and packaged.
- Automotive painting (cars, trucks, motorcycles)
- Furniture and cabinetry finishing
- Industrial equipment and machinery coating
- Construction and building facades
- Consumer electronics and appliances
- Uniform and smooth finish
- Faster application compared to brushes or rollers
- Reduced paint waste and overspray
- Ability to coat complex shapes and hard-to-reach areas
- Automation compatibility for high-volume production
- Always strain paint before use to avoid nozzle clogging.
- Clean hoses and spray tips after each use to prevent buildup.
- Regularly check and replace worn nozzles.
- Follow manufacturer guidelines for pump and motor maintenance.
- Store equipment in a dry, dust-free environment.
Q1: What is the difference between airless and HVLP spray painting?
Airless spray painting uses high fluid pressure without compressed air to atomize paint, suitable for large surfaces and thick coatings. HVLP uses low pressure and high air volume for finer control and less overspray, ideal for detailed work.
Q2: Can spray painting machines be used for all types of paint?
Most machines can handle various paints, but viscosity and chemical compatibility must be checked. Some machines require thinning paint for optimal atomization.
Q3: How do I choose the right spray tip size?
Tip size depends on paint type and desired flow rate. Larger tips are for thicker paints and broad coverage; smaller tips are for fine finishes.
Q4: What safety precautions should I take when using spray painting machines?
Use protective gear such as masks, gloves, and goggles. Ensure proper ventilation and avoid open flames near flammable paints.
Q5: How often should I clean my spray painting machine?
Clean after every use to prevent clogging and maintain performance. Regular deep cleaning is recommended for machines used frequently.
