Introduction

UV curing machines have revolutionized various industries by providing rapid, efficient, and environmentally friendly curing solutions. These machines use ultraviolet (UV) light to instantly cure or harden inks, coatings, adhesives, and other materials. This article explores the working principles of UV curing machines, their diverse applications, types, advantages, and the latest technological advancements. Visual aids including images and videos will be integrated throughout to enhance understanding.

What is a UV Curing Machine?

A UV curing machine is a device that emits ultraviolet light to initiate a photochemical reaction that cures or hardens materials such as inks, coatings, adhesives, and films. This process is widely used in manufacturing, electronics, printing, medical devices, and more.

How Does UV Curing Work?

UV curing is a photochemical process where liquid monomers and oligomers mixed with photoinitiators are exposed to UV light. The photoinitiators absorb the UV energy, generating reactive species that trigger polymerization, transforming the liquid into a solid within seconds.

- The UV light excites the photoinitiator molecules.

- Activated molecules generate free radicals or cations.

- These reactive centers initiate polymerization of the resin or adhesive.

- The material rapidly hardens or cures without heat.

This fast curing process enables high-speed production with minimal waste and no solvents required.

Types of UV Curing Machines

UV curing machines are classified based on their UV irradiation range and light source type.

By Irradiation Range

- Spot Type: Focuses UV light on a small area for precision curing.

- Line Type: Emits a linear beam for curing narrow strips or lines.

- Area Type: Covers a broad area for curing larger surfaces.

By Light Source

- UV Lamp-Based: Traditional mercury vapor or metal halide lamps emitting a broad UV spectrum.

- UV LED-Based: Modern LED lamps emitting specific UV wavelengths (e.g., 365 nm), offering energy efficiency and longer lifespan.

Cooling Methods

- Water-Cooled Systems: Used to maintain lamp temperature and ensure stable operation.

- Air-Cooled Systems: Simpler cooling for lower power applications.

Applications of UV Curing Machines

UV curing technology is versatile and used across many industries:

Industrial Applications

- Adhesive Bonding: Instant curing of adhesives in electronics and automotive assembly.

- Coatings: Protective and decorative coatings on wood, metal, plastic, and glass.

- Printing: Rapid drying of inks and varnishes in graphic arts and packaging.

- Semiconductor Manufacturing: Curing protective films and resists.

- Medical Devices: Sterilization and curing of biocompatible coatings.

Electronics Manufacturing

- Conformal coating of PCBs to protect against moisture and contaminants.

- SMT (Surface Mount Technology) UV curing ovens accelerate production lines.

Specialized Uses

- UV curing tapes and films in semiconductor wafer processing.

- UV diamond film curing for curved mobile phone screens.

Advantages of UV Curing Machines

- Speed: Curing occurs within seconds, dramatically increasing throughput.

- Environmental Benefits: No solvents or volatile organic compounds (VOCs) are emitted.

- Energy Efficiency: Especially with UV LED systems, energy consumption is reduced.

- Precision: Enables curing in targeted areas without affecting surrounding materials.

- Durability: Produces coatings and adhesives with excellent mechanical and chemical resistance.

Components and Operation of a UV Curing Machine

Key Components

- UV Light Source: Lamp or LED emitting UV radiation.

- Optical System: Lenses, mirrors, and filters to direct and control UV light.

- Cooling System: Maintains optimal temperature for stable operation.

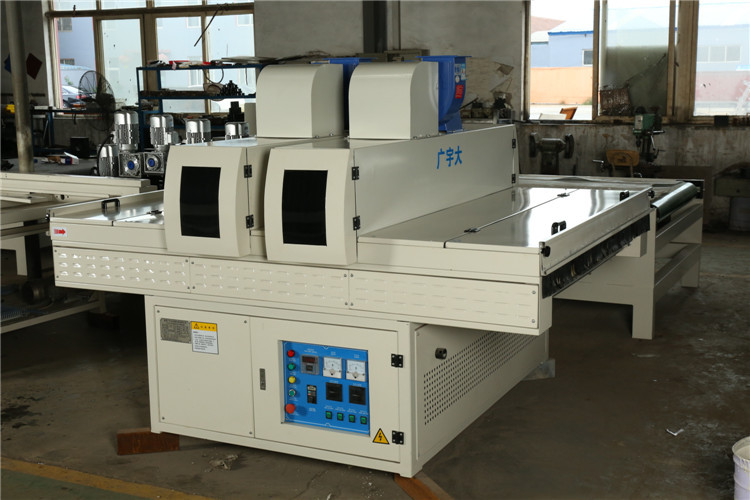

- Conveyor or Positioning System: Moves products under the UV light for uniform curing.

- Control System: Programmable interface for adjusting curing parameters.

Operating Principles

1. Material coated or applied with UV-curable substance is placed under the UV light.

2. The UV radiation initiates polymerization.

3. The curing process completes in seconds.

4. The product moves to the next stage of manufacturing.

Innovations in UV Curing Technology

UV LED Curing

UV LED curing systems offer several benefits over traditional lamps:

- Longer lifespan (up to 10,000+ hours).

- Instant on/off operation without warm-up time.

- Narrower wavelength bands for targeted curing.

- Lower heat emission, reducing thermal damage to substrates.

Integration with Automation

Modern UV curing machines integrate with automated production lines, including robotic arms and conveyors, to enhance efficiency and consistency.

Vacuum UV Curing Machines

Specialized machines like UV film vacuum curing machines enable perfect adhesion and curing of films on curved surfaces, such as smartphone screens, improving product durability and aesthetics.

Maintenance and Troubleshooting

Common Issues

- Reduced UV Output: Caused by lamp aging, dust accumulation, or electrical faults.

- Flickering Lamps: Often due to ballast problems or loose connections.

- Overheating: Can shorten lamp life and affect curing quality.

Maintenance Tips

- Regularly clean lamps and optical components.

- Replace lamps nearing end of life or showing discoloration.

- Inspect and maintain electrical connections and cooling systems.

Frequently Asked Questions (FAQs)

1. What materials can be cured using UV curing machines?

UV curing machines can cure inks, coatings, adhesives, films, and resins on substrates like wood, metal, plastic, glass, and electronics.

2. How fast does UV curing occur?

Curing typically completes within seconds, depending on the material and UV intensity.

3. Are UV LED curing machines better than traditional UV lamps?

UV LEDs offer longer life, energy efficiency, instant operation, and less heat but may have limitations in curing certain materials requiring broader UV spectra.

4. Can UV curing machines be used for sterilization?

Yes, UV-C wavelengths can inactivate bacteria and viruses, but sterilization requires specific equipment and safety measures.

5. How do I know when to replace a UV lamp?

Signs include reduced output, failure to start, discoloration, swelling, or failure to cure materials properly.

Conclusion

UV curing machines are indispensable tools across many industries, delivering fast, efficient, and environmentally friendly curing solutions. Advances in UV LED technology and automation continue to expand their capabilities and applications. Proper maintenance ensures optimal performance and longevity of these machines.
