UV coating lines have revolutionized the surface finishing industry by providing rapid, durable, and environmentally friendly coatings for various materials. This article explores the technology behind UV coating lines, their components, processes, applications, and benefits, supported by detailed explanations, images, and videos to illustrate the concepts.

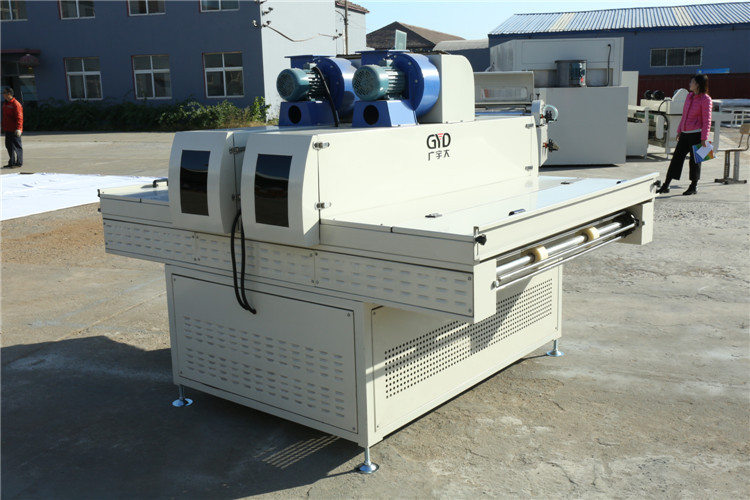

A UV coating line is an automated production system designed to apply ultraviolet (UV) curable coatings to surfaces such as tubes, profiles, flooring, printed materials, and more. The line integrates equipment for cleaning, coating application, curing, and handling to ensure a high-quality finish with minimal environmental impact.
- Handling Equipment: Includes rollers, side-shifting systems, and racks tailored to transport and position items precisely.
- Cleaning System: Prepares surfaces by cleaning and drying to ensure optimal coating adhesion.
- Pre-heating System: (Used mainly with LED curing) Warms the surface to enhance coating adhesion.
- Coating System: Applies the UV coating uniformly using spraying or rolling techniques.
- Curing System: Uses UV light sources, either mercury lamps or LED lamps, to instantly cure the coating.
- Air Cooling System: (For LED curing) Cools the coated item to finalize the curing process.
- Electrical Controls: Automate and monitor the entire process for consistency and efficiency[2].
UV coating involves applying a liquid coating that contains photo initiators. When exposed to UV light, these initiators absorb energy and trigger a rapid chemical reaction called polymerization. This reaction converts the liquid coating into a solid, durable film almost instantly without the need for heat or long drying times.
- UV light in the 200-400 nm spectrum activates photo initiators.
- These initiators generate free radicals that break double bonds in monomers and oligomers.
- The polymerization reaction cross-links molecules, forming a hard, inert film.
- The process is fast, energy-efficient, and produces minimal volatile organic compounds (VOCs)[6].
The surface must be clean and dry. Cleaning systems use air flow and vacuum or flood-and-wipe methods to remove contaminants, ensuring strong adhesion.
For LED curing systems, pre-heating raises the surface temperature to improve coating adhesion and curing quality.
Coatings are applied via automatic spraying or rollers. The coating must be evenly distributed to avoid defects such as streaks or uneven gloss.
- Mercury Lamp Curing: Traditional UV lamps cure opaque and transparent coatings quickly but emit ozone and have limited color options.
- LED Lamp Curing: Newer LED lamps allow curing of nearly all colors with no ozone emissions and greater energy efficiency.
After curing, air cooling (for LED systems) stabilizes the coating, followed by automated handling to move the product to the next station or packaging[2][8].
UV coating lines are widely used in coating steel or aluminum tubes for enhanced corrosion resistance, aesthetic appeal, and durability.
In SPC flooring production, UV coating machines apply a protective paint layer that prevents dust, scratches, and enhances abrasion resistance and gloss uniformity[5].
UV coatings provide a high-gloss or matte finish to printed materials, improving visual appeal and durability without heat damage or fading[9].
Premium UV lines ensure consistent coating and drying for parquet floors, enhancing surface hardness and wear resistance[3].
- Rapid Curing: Coatings cure within seconds, increasing production speed.
- Energy Efficiency: UV curing requires less energy compared to thermal drying.
- Environmental Benefits: Low or zero VOC emissions and no need for solvents.
- Durability: UV coatings offer excellent abrasion, chemical, and weather resistance.
- Versatility: Suitable for various substrates and finishes, including raised images and textured coatings[1][6][11].
Q1: What is the difference between mercury and LED UV curing?
A1: Mercury lamps cure coatings quickly but emit ozone and have limited color options, while LED lamps cure almost all colors, are more energy-efficient, and produce no ozone emissions.
Q2: Can UV coatings be applied to any material?
A2: UV coatings are versatile but require the substrate to be compatible with the coating chemistry and able to withstand UV exposure during curing.
Q3: How fast does UV curing occur?
A3: UV curing typically takes seconds, significantly faster than traditional thermal drying methods.
Q4: Are UV coatings environmentally friendly?
A4: Yes, UV coatings have low VOC emissions and reduce energy consumption, making them more sustainable.
Q5: What industries benefit most from UV coating lines?
A5: Industries such as mechanical tube manufacturing, flooring, printing, packaging, and wood products benefit greatly from UV coating technology.
