In the rapidly evolving landscape of manufacturing and industrial processes, automation has become a cornerstone for efficiency, precision, and sustainability. Among the pivotal innovations is the automatic paint machine, a sophisticated system designed to streamline painting operations across various industries. This article delves into the intricacies of automatic paint machines, exploring their working principles, types, applications, advantages, and future trends, complemented by visual aids and expert insights.

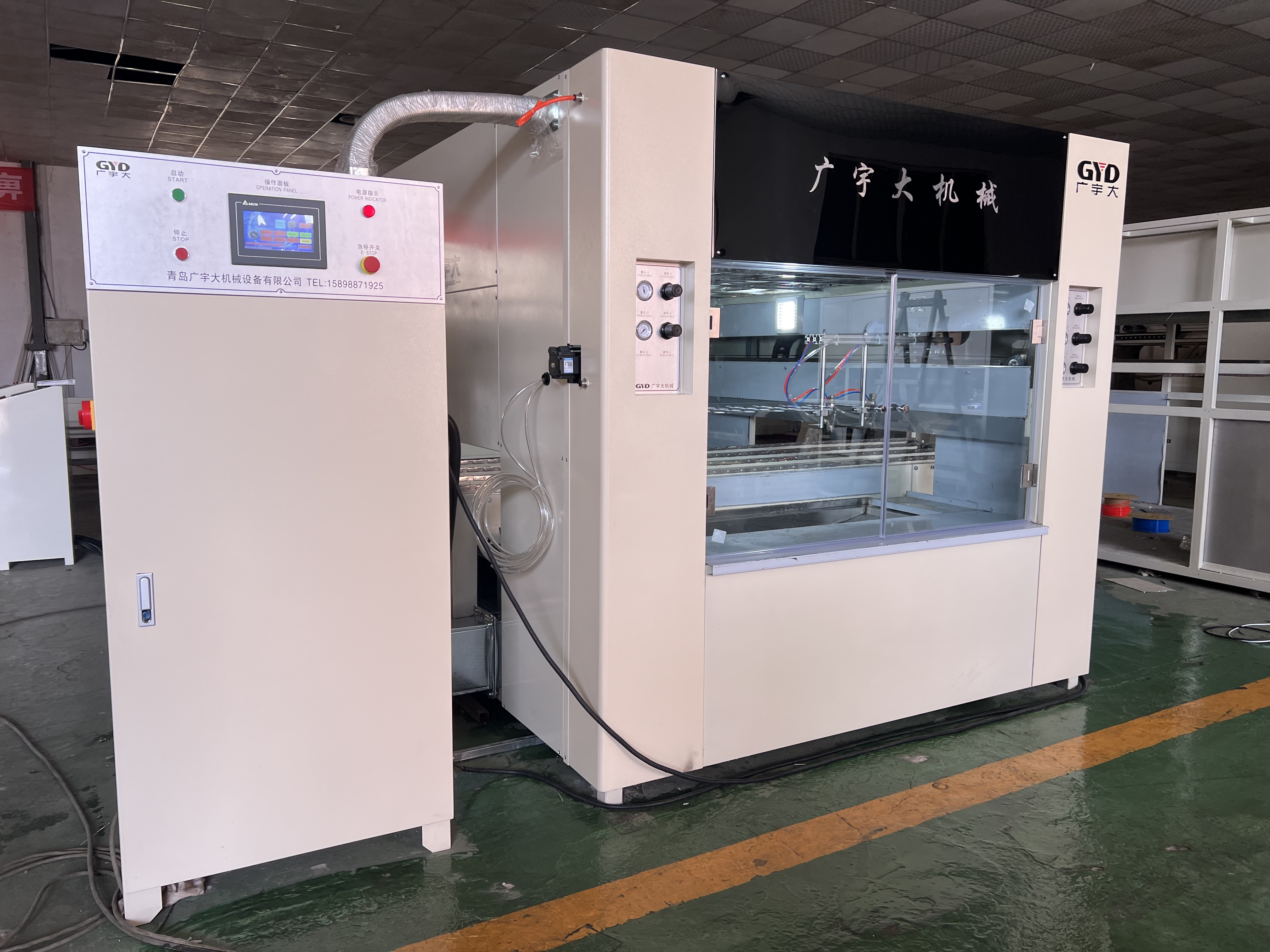

An automatic paint machine is a fully automated system engineered to apply coatings—such as paint, varnish, or protective layers—on different surfaces with minimal human intervention. These systems integrate several key components:
- Robotic arms or spray guns for precise application
- Conveyor or loading systems to transport workpieces
- Control units and software for programming and process customization
- Spray nozzles to atomize and distribute coating material evenly
| Type | Description | Typical Use Cases |
|---|---|---|
| Robotic Spray Systems | Utilize robotic arms for high-precision coating | Automotive, aerospace |
| Spray Booths | Enclosed chambers with automated spray nozzles | Furniture, electronics |
| Conveyorized Systems | Continuous movement of parts through spraying | Mass production, metalworks |
| Coating Lines | Integrated systems combining cleaning, painting, and curing | Large-scale manufacturing |
Prior to painting, surfaces undergo cleaning and surface treatment to ensure optimal adhesion. Automated systems often include pre-treatment modules that remove dust, grease, and other contaminants, followed by drying and priming.
The core of the system involves:
- Surface detection and positioning: Sensors identify the workpiece location.
- Spray application: Robotic arms or spray nozzles apply coatings with controlled parameters—such as spray pattern, flow rate, and pressure.
- Atomization techniques: Different spray methods, including HVLP (High Volume Low Pressure), electrostatic, or airless spraying, are employed depending on the application.
After coating, parts are moved through drying or curing chambers, followed by inspection and quality control, often utilizing automated sensors and cameras to ensure uniformity and defect detection.
Robots equipped with advanced sensors and programmable controllers enable precise and repeatable application, suitable for complex geometries and high-volume production.
Large enclosed environments designed for continuous operation, equipped with automated spray nozzles, ventilation, and dust extraction systems to ensure safety and quality.
These systems facilitate seamless movement of parts through cleaning, priming, painting, and curing stages, ideal for mass production scenarios.
Specialized for applying liquid paints or powder coatings, these machines optimize material usage and environmental compliance.
- Painting car bodies, bumpers, and chassis with high gloss and uniformity
- Applying anti-corrosion and protective coatings
- Coating device casings, circuit boards, and home appliances for durability and aesthetics
- Finishing wooden and metal furniture with smooth, high-quality coatings
- Coating aircraft components for corrosion resistance and aerodynamic performance
- Protective coatings on pipelines, machinery, and structural steel
- Decorative and protective coatings for aesthetic enhancement
Automation minimizes human error, ensuring uniform coating thickness and surface finish across large batches.
High-speed operation and continuous processing significantly reduce production cycles and labor costs.
Precise control over spray parameters reduces overspray and material wastage, leading to cost savings.
Many systems incorporate eco-friendly features like VOC (Volatile Organic Compounds) control, overspray recovery, and low-emission technology.
Enclosed spray booths with dust and paint mist extraction improve safety and reduce health hazards for operators.
The integration of artificial intelligence and machine learning enables adaptive spraying, real-time quality monitoring, and predictive maintenance.
Development of water-based, powder, and low-VOC coatings aligns with global sustainability goals.
Collaborative robots (cobots) working alongside humans will enhance flexibility and safety in painting operations.
Real-time data collection and simulation facilitate process optimization and predictive analytics.
*Note: Due to platform limitations, actual images and videos are not embedded here. However, in a full article, include:*
- Diagrams illustrating the working principle of robotic spray systems
- Photos of different types of automatic paint machines
- Video walkthroughs of automated coating lines
- Time-lapse videos demonstrating the efficiency of automated systems
Q1: How does an automatic paint machine improve coating quality?
*Automatic systems ensure precise control over spray parameters, leading to uniform coatings and minimal defects, unlike manual spray painting which is prone to inconsistencies.*
Q2: What industries benefit most from automatic paint machines?
*Industries such as automotive, aerospace, electronics, furniture, and construction benefit greatly due to their high-volume and precision coating requirements.*
Q3: Are automatic paint machines environmentally friendly?
*Many systems incorporate features like VOC reduction, overspray recovery, and energy-efficient components, making them more eco-friendly than manual methods.*
Q4: What maintenance is required for automatic paint machines?
*Regular cleaning, calibration, software updates, and inspection of spray nozzles and robotic arms are essential to maintain optimal performance.*
Q5: Can automatic paint machines handle different types of coatings?
*Yes, they are adaptable to various coatings including water-based, solvent-based, powder, and UV-curable paints, depending on the system configuration.*
