Advanced Board Making Machinery: Innovations, Processes, and Applications in Modern Industry

Views: 361     Author: GYD     Publish Time: 2025-05-14      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button

Content Menu

Introduction to Board Making Machinery

Types of Board Making Machines

>> Paper Board Making Machines

>> Corrugated Board Making Machines

>> Particle Board Making Machines

>> Gypsum Board Making Machines

>> Magnesium Oxide (MgO) Board Machines

Detailed Manufacturing Processes

>> Paper Board Manufacturing Process

>> Particle Board Manufacturing Process

>> Gypsum Board Manufacturing Process

>> MgO Board Manufacturing Process

Technological Innovations in Board Making Machinery

Applications of Board Products

Frequently Asked Questions (FAQs)

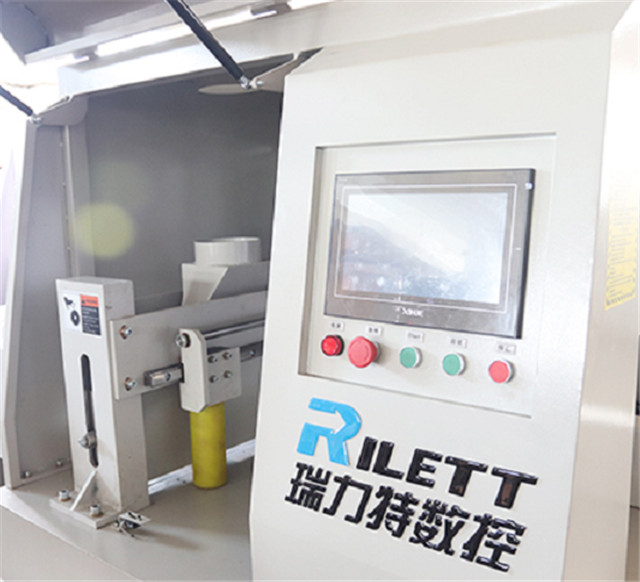

Board Making Machinery

Board making machinery plays a critical role in the production of various types of boards used across industries such as packaging, construction, furniture, and more. This article explores the different types of board making machines, their manufacturing processes, technological advancements, and practical applications. It also includes visual aids and videos to enhance understanding.

Introduction to Board Making Machinery

Board making machinery refers to the industrial equipment used to manufacture boards from raw materials such as wood chips, pulp, gypsum, magnesium oxide, and other composites. These machines enable the production of paper boards, particle boards, gypsum boards, magnesium oxide (MgO) boards, and corrugated boards, each catering to specific industrial needs.

Types of Board Making Machines

Paper Board Making Machines

Paper board making machines produce various grades of paper boards such as folding boxboard (FBB), white line chipboard (WLC), solid bleached sulfate (SBS), and coated unbleached kraft paper board (CUK). These boards are widely used in packaging for food, beverages, healthcare, and stationery industries. Machines vary in size, typically ranging from 42 to 72 inches in width, and include types such as automatic paper board making machines, L-type edge paper board machines, and corrugated board making plants.

Corrugated Board Making Machines

Corrugated board machines produce fluted paperboard used primarily for packaging boxes. These machines include single facer machines that create the fluted medium and glue it to liners to form corrugated boards. These machines are highly automated and designed for high-speed production.

Particle Board Making Machines

Particle board machines process wood chips and flakes into composite wood panels. The production line includes wood chipping, flaking, drying, screening, forming, pressing, hot pressing, and sanding. These boards are used in furniture manufacturing and construction.

Gypsum Board Making Machines

Gypsum board machines manufacture drywall panels by extruding a gypsum slurry between paper liners. The process involves forming, initial setting on a coagulation belt, drying in temperature-controlled zones, edge wrapping, and packaging. These machines use advanced servo motors and automatic cleaning systems for precision and efficiency.

Magnesium Oxide (MgO) Board Machines

MgO board machines produce boards made from magnesium oxide, magnesium chloride, wood chips, perlite, and reinforcing fibers. The process includes slurry preparation, sheet forming on PVC templates, curing, demoulding, secondary curing, and cutting. MgO boards are known for fire resistance and durability.

Detailed Manufacturing Processes

Paper Board Manufacturing Process

1. Pulp Preparation: Raw materials like wood pulp and recycled fibers are refined.

2. Sheet Formation: Pulp slurry is spread on a wire mesh to form sheets.

3. Pressing and Drying: Sheets are pressed to remove water and dried.

4. Finishing: Boards are cut, coated, or laminated as per requirements.

Particle Board Manufacturing Process

1. Wood Preparation: Logs are chipped and crushed.

2. Drying and Screening: Chips are dried and screened for uniformity.

3. Forming: Flakes are layered and formed into mats.

4. Pressing: Mats are hot-pressed under high pressure and temperature.

5. Sanding: Surfaces are smoothed for finishing.

Gypsum Board Manufacturing Process

1. Slurry Mixing: Gypsum powder mixed with water and additives.

2. Sheet Forming: Slurry is sandwiched between paper liners.

3. Initial Setting: Boards set on a coagulation belt for 4-5 minutes.

4. Drying: Boards pass through drying chambers with controlled temperature.

5. Edge Wrapping and Cutting: Edges are wrapped, boards cut to size.

6. Packaging: Finished boards are packaged automatically.

MgO Board Manufacturing Process

1. Raw Material Mixing: Magnesium oxide, chloride, wood chips, and fillers mixed.

2. Sheet Forming: Slurry applied on PVC templates with reinforcing fabrics.

3. Curing: Boards cured at room temperature and then secondary curing.

4. Cutting and Finishing: Boards trimmed and prepared for shipment.

Technological Innovations in Board Making Machinery

- Automation: Modern machines incorporate PLC control systems for precise operation.

- Servo Motors: Used for accurate cutting and forming with minimal deviation.

- Energy Efficiency: Use of oil heating and heat recovery systems to reduce energy consumption.

- Quality Control: Real-time monitoring systems ensure consistent product quality.

- Environmental Considerations: Machines designed for reduced waste and recycling capabilities.

Applications of Board Products

- Packaging: Folding boxboards and corrugated boards for food, electronics, and consumer goods.

- Construction: Gypsum boards and MgO boards used for walls, ceilings, and fireproofing.

- Furniture: Particle boards and MDF boards for cabinetry and furniture manufacturing.

- Industrial: Specialty boards for insulation, filtration, and other industrial uses.

Frequently Asked Questions (FAQs)

Q1: What types of boards can be produced by board making machinery?

A1: Boards such as paper boards, corrugated boards, particle boards, gypsum boards, and MgO boards can be produced.

Q2: How does a gypsum board machine work?

A2: It mixes gypsum slurry, forms sheets between paper liners, sets the board on a coagulation belt, dries it, wraps edges, cuts, and packages the board.

Q3: What is the difference between particle board and MDF?

A3: Particle board is made from wood chips and flakes, while MDF (Medium Density Fiberboard) uses finer wood fibers for a smoother finish.

Q4: Are board making machines energy efficient?

A4: Modern machines incorporate energy-saving technologies like heat recovery and efficient motors to reduce energy consumption.

Q5: Can board making machinery be customized?

A5: Yes, machines can be tailored for specific board sizes, production speeds, and material types according to customer needs.
