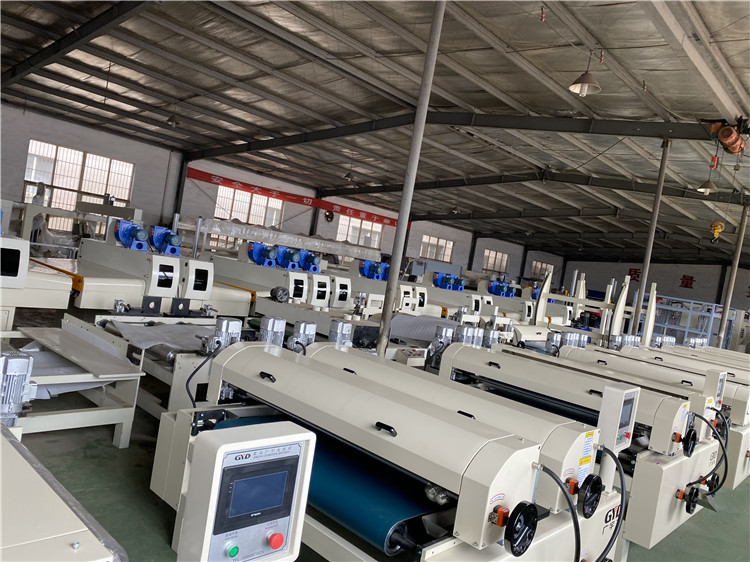

Adhesive roll coaters are essential machines in various manufacturing industries, designed to apply uniform adhesive layers on substrates efficiently. These systems ensure consistent coating thickness and quality, critical for products ranging from electronics to packaging materials.
The simplest roll coating involves a single rotating roller partially immersed in adhesive liquid. As the roller turns, it picks up adhesive and transfers a thin film onto the substrate passing over it. The coating thickness depends on roller speed, substrate speed, and adhesive properties such as viscosity and surface tension.
More precise coating control is achieved using multiple rollers. For example, a three-roll system includes:
- Metering Roller: Controls the amount of adhesive.
- Applicator Roller: Transfers adhesive to the substrate.
- Doctor Roller: Removes excess adhesive to prevent defects.
This configuration allows fine-tuning of coating thickness and uniformity.
A typical adhesive roll coater includes:
- Coating Rolls: Usually rubber-covered rollers about 6.5 inches in diameter and 26 inches long.
- Doctor Rolls: Chrome-plated steel rollers to meter adhesive precisely.
- Roller Adjustments: Handwheels and mechanical indicators for vertical and positional adjustments.
- Drive System: Independent motors for coating and doctor rolls, with timing belts driving conveyors.
- Safety Features: Interlocked hoods, exhaust systems, and fail-safe devices.
- Operating Speed: Variable, typically from 20 to 60 linear feet per minute.
These features ensure adaptability to various adhesive types and substrate sizes while maintaining safety and efficiency.
- Coating cylindrical aluminum or steel parts with adhesive primers and topcoats.
- Suitable for small parts (under 2 lbs) with diameters between 25-30 mm and lengths 40-100 mm.
- High-volume production environments requiring consistent adhesive layers.
- Full-Roll Coat Lamination: Bonds two substrate layers with uniform adhesive, including hot-melt and reactive polymers.
- Transfer Coating: Adhesive is first applied to a liner, dried, and then laminated to the substrate.
- Pattern Coating: Using engraved rolls to create textures or special effects like snakeskin or perforations.
- Viscosity, surface tension, and density affect how adhesive spreads and adheres.
- Emulsion-based adhesives with viscosities ranging from 1500cps to 9500cps are common.
- Roller and substrate speeds must be synchronized.
- Temperature control during drying or curing is critical, often using in-line ovens with infrared heating.
- Environmental factors like humidity and ambient temperature also impact drying times and coating uniformity.
- Adjustable Teflon dams enable coating width control from 0.5 to 12 inches.
- Optional air pumps for adhesive supply and solvent flushing systems improve process stability.
- Advanced coating bars (bull nose, wire wound) and pattern inserts allow customization.
- Digital mechanical indicators provide precise visual feedback on roller positioning.
Q1: What determines the thickness of adhesive coating in roll coaters?
A1: Coating thickness is governed by roller speed, substrate speed, and adhesive properties like viscosity and surface tension.
Q2: Can adhesive roll coaters handle different adhesive types?
A2: Yes, they can be customized for solvent-based, water-based, emulsion, hot-melt, and reactive polymer adhesives.
Q3: How is uniform coating ensured on cylindrical parts?
A3: Using precise roller dimensions, controlled speeds, and curing ovens ensures even adhesive layers on cylindrical surfaces.
Q4: What safety features are common in adhesive roll coaters?
A4: Safety guarding, interlocked doors, exhaust fans, and fail-safe heater controls are standard to protect operators.
Q5: Are adhesive roll coaters suitable for small-scale production?
A5: They are ideal for high-volume production but can be adapted for smaller runs with adjustable settings and accessories.
