Roll to roll (R2R) coating machines have become indispensable in modern manufacturing, especially for industries requiring precise, continuous coating of flexible substrates. This article explores the technology, working principles, applications, and future trends of roll to roll coating machines, supported by detailed images and videos to illustrate key concepts.

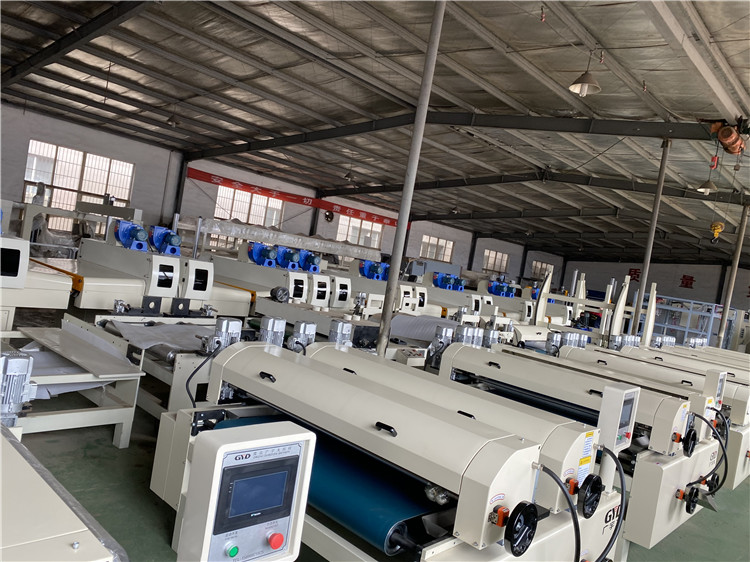

A roll to roll coating machine is a fabrication system designed to apply thin layers of coating materials onto flexible substrates that are supplied in roll form. The substrate unwinds from a roll, passes through coating stations where the coating is applied, and then rewound onto another roll after drying or curing.
The process involves multiple rollers that control the substrate movement and coating application. The coating material is transferred from a reservoir or roller to the substrate surface, often using methods such as slot-die, knife-over-roll, or gravure coating. The coated substrate then passes through drying ovens or curing units to solidify the coating.
These control the feed and collection of the substrate roll, maintaining tension and alignment for consistent coating.
- Coating Rollers: Include application rollers, transfer rollers, and doctor blades to control the coating thickness and uniformity.
- Coating Methods: Knife-over-roll, slot-die, gravure, and transfer roll coating are common techniques, each suited for different coating viscosities and thickness requirements.
Drying ovens, often equipped with hot air and infrared heaters, rapidly dry the coating to ensure adhesion and performance.
Advanced machines feature precise speed, tension, and temperature controls, often with automated feedback loops to maintain coating accuracy within microns.
Ideal for thin, uniform coatings, transfer roll coaters use multiple rollers to transfer the coating from a reservoir to the substrate with high precision.
This method extrudes coating material through a narrow slot, allowing ultra-thin and uniform coatings, adjustable via slit gap settings.
Best for very thin coatings, this method uses a blade to meter the coating thickness as the substrate passes underneath.
Used extensively for flexible electronics manufacturing, such as OLED displays, thin-film solar cells, and flexible printed circuits. Coatings include conductive, insulating, and semi-conductive layers applied on flexible substrates.
In lithium-ion battery production, roll to roll coating machines apply electrode materials onto metal foils with high precision and uniformity, critical for battery performance.
Coatings such as water-repellent, stain-resistant, and flame-retardant layers are applied to fabrics, enhancing durability and functionality for outdoor clothing and industrial textiles.
Barrier coatings are applied to flexible films to protect food and medical products from moisture and oxygen, extending shelf life and ensuring safety.
Coatings improve the durability and efficiency of flexible solar panels and energy-harvesting films, protecting materials from environmental damage.
- High Efficiency: Continuous processing enables large-scale production with minimal downtime.
- Material Savings: Thin, uniform coatings reduce material waste.
- Versatility: Compatible with a wide range of substrates and coating materials.
- Precision: Coating thickness can be controlled within microns for consistent quality.
- Scalability: Suitable for both R&D pilot lines and full industrial production.
- Coating Uniformity: Maintaining consistent thickness over long runs requires precise control.
- Contamination Control: Clean environments are essential to avoid defects, especially in electronics and medical applications.
- Drying Efficiency: Proper drying is critical to prevent coating defects and ensure adhesion.
- Maintenance: Continuous operation demands regular maintenance to avoid downtime.
- Integration of plasma cleaning before coating to improve adhesion.
- Use of closed-loop control systems for real-time monitoring and adjustment.
- Development of multi-layer coating capabilities for advanced functional films.
- Application of environmentally friendly coatings to reduce VOC emissions.
- Expansion into flexible displays, wearable electronics, and smart textiles.
Q1: What industries benefit most from roll to roll coating machines?
A1: Electronics, battery manufacturing, textiles, packaging, and renewable energy industries are primary users due to their need for flexible substrate coatings.
Q2: How thin can coatings be applied using roll to roll machines?
A2: Coatings can be as thin as a few microns, with precision control allowing uniform layers typically within ±2% thickness variation.
Q3: What types of substrates can be coated?
A3: Flexible substrates like plastic films, metal foils (aluminum, copper), textiles, and paper can be coated.
Q4: How is drying handled in roll to roll coating?
A4: Drying is performed using hot air ovens, infrared heaters, or UV curing systems, depending on the coating material.
Q5: Can roll to roll coating machines handle multi-layer coatings?
A5: Yes, advanced machines can apply multiple layers sequentially with precise control for complex functional films.
