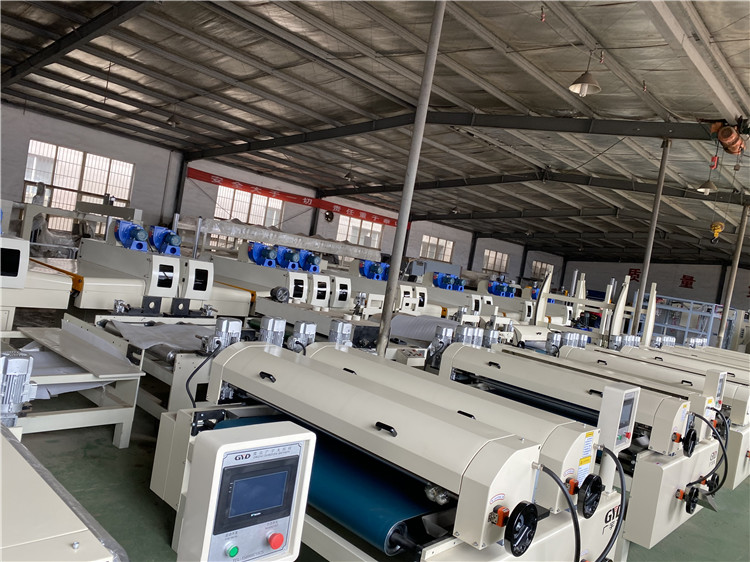

Introduction to Roll Coating Equipment
Roll coating equipment is a vital technology used in various industries for applying uniform coatings on flat substrates such as metal coils, films, foils, and flexible materials. This equipment ensures high precision, efficiency, and scalability in coating processes, making it indispensable in sectors like electronics, battery manufacturing, packaging, and automotive.
Roll coating machines transfer coatings by using rollers that pick up paint or coating material and apply it evenly onto a moving substrate. The paint is first transferred from a pan to a coating roll, which then applies the coating to the substrate surface. The gap and pressure between rollers are adjustable to control the coating thickness precisely. When the substrate seam passes, the coating roller can disengage automatically to avoid damage.
- Two-Roll Coating Head: Uses two rollers to transfer and apply the coating.
- Three-Roll Coating Head: Adds a regulating roller between the transfer and application rollers to finely adjust wet film thickness by controlling the gap.
High-speed machines often feature two coating heads for quick switching between paints or coatings.
The system includes steering rollers to guide the substrate, backup rollers to support the substrate during coating, and top idler rollers to maintain tension and alignment. Automatic adjustment devices protect rollers during machine stops or when seams pass through.
- Unwind and Rewind Units: Manage substrate feeding and collection with tension control to prevent wrinkles or damage.
- Coating Rolls: Transfer and apply coating materials; include rubber or metal rollers depending on application.
- Metering Devices: Such as doctor blades or comma blades, control coating thickness with high precision.
- Drying Systems: Use hot air, infrared (IR), or ultraviolet (UV) curing to dry or cure coatings quickly.
- Control Systems: PLC and touchscreen interfaces allow easy operation and real-time adjustments.
Uses rollers to transfer coating from a reservoir to the substrate. Thickness is controlled by roller gaps and pressure.
A precise coating technique where liquid coating is extruded through a narrow slot onto the substrate, allowing ultra-thin and uniform layers.
Employs engraved rollers to apply patterned or textured coatings, ideal for decorative or functional surfaces.
A blade meters the coating thickness as the substrate passes underneath, suitable for thicker coatings.
Substrate is dipped into a coating bath and excess removed, used for specific applications.
- Lithium-Ion Battery Industry: Coating electrodes with active materials like lithium iron phosphate or graphite with micron-level accuracy.
- Flexible Electronics: Coating films for displays, touch panels, and printed circuits.
- Packaging: Applying protective or decorative coatings on metal foils and plastics.
- Automotive: Coating parts for corrosion resistance and aesthetics.
- Optical Films: Anti-reflective, hard coating, and polarizing films.
- High throughput and continuous operation suitable for mass production.
- Precise control over coating thickness and uniformity.
- Flexibility to handle a wide range of substrate materials and coating types.
- Automated tension and alignment control reduce defects.
- Integration with drying and curing systems enhances efficiency.
- Multi-Roller Systems: Three-roll or more for enhanced control and switching capabilities.
- Automated Gap and Pressure Adjustment: Ensures consistent coating quality.
- Advanced Drying Technologies: Combination of hot air, IR, and UV curing for faster processing.
- Environmental Safety: Solvent recovery systems integrated to reduce emissions.
- Compact Designs: Space-saving machines with easy threading and cleaning.
Q1: What materials can be coated using roll coating equipment?
A1: Metals, plastics, foils, films, paper, and flexible substrates can be coated depending on the machine configuration.
Q2: How is coating thickness controlled in roll coating?
A2: By adjusting the gap and pressure between rollers and using metering devices like doctor blades or comma blades.
Q3: Can roll coating equipment handle multi-layer coatings?
A3: Yes, some systems have multiple coating heads for sequential or simultaneous multi-layer coatings.
Q4: What drying methods are compatible with roll coating systems?
A4: Hot air ovens, infrared heaters, and ultraviolet curing systems are commonly integrated.
Q5: How is substrate tension managed during coating?
A5: Through unwind/rewind units with tension control and steering rollers to maintain alignment and prevent wrinkles.
