Roller coating equipment is a pivotal technology in modern manufacturing, enabling the uniform application of coatings on a wide variety of substrates. From automotive parts to electronic components, roller coating ensures consistent coverage, precise thickness control, and high production efficiency. This article explores the design, working principles, applications, and maintenance of roller coating equipment, supported by visual aids and videos to illustrate key concepts.

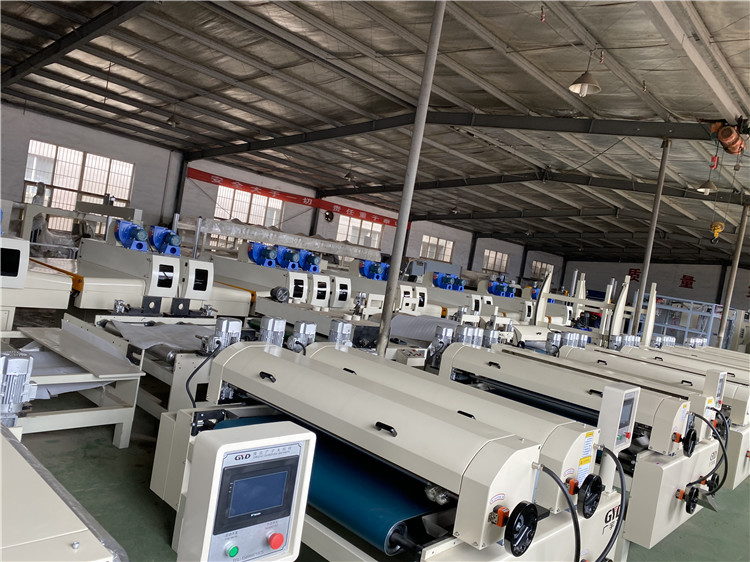

Roller coating equipment uses a series of rollers to apply liquid coatings such as paints, resins, or adhesives onto flat or cylindrical substrates. The process is continuous and highly automated, ideal for high-volume production lines.
- Main Rollers: These transfer the coating material onto the substrate, ensuring even distribution.
- Pressure Rollers: Apply uniform pressure to enhance adhesion and smooth the coating.
- Scraper Blades: Control coating thickness by removing excess material from the rollers.
- Reservoirs and Pumps: Supply and regulate the coating fluid to the rollers.
- Drying Ovens and Curing Chambers: Facilitate rapid drying or curing of the coating to stabilize the finish.
The roller coating process begins with unwinding the substrate, which is fed into the machine under controlled tension to avoid wrinkles or misalignment.
1. Substrate Preparation: Optional cleaning or surface treatment enhances coating adhesion.
2. Coating Application: The coating material is transferred from the roller to the substrate. Techniques include direct roller transfer, gravure coating (using engraved rollers), and transfer coating (using intermediate rollers).
3. Thickness Control: Scraper blades precisely remove excess coating to achieve the desired film thickness, typically adjustable between 0.2 mm to 3 mm depending on the equipment.
4. Curing and Drying: The coated substrate passes through curing chambers or drying ovens to solidify the coating.
5. Cooling and Packaging: After curing, the substrate is cooled and then packaged for shipment.
Uses an engraved roller to pick up and transfer coating material in specific patterns, suitable for textured or patterned coatings.
Involves an intermediate roller that transfers coating from the main roller to the substrate, allowing for precise control and uniform thickness.
The roller directly contacts the substrate, ideal for simple, flat surfaces requiring uniform coating.
Roller coating technology is versatile and widely used in industries such as:
- Automotive: Coating of metal parts and panels for corrosion resistance and aesthetics.
- Electronics: Application of protective or functional coatings on circuit boards and displays.
- Packaging: Coating films and papers for barrier properties or printability.
- Pharmaceuticals and Food: Coating of packaging materials to ensure safety and quality.
- Construction: Coatings on panels and sheets for durability and weather resistance.
- High Efficiency: Continuous operation supports large-scale production.
- Uniform Coating: Precise control over thickness and coverage.
- Material Savings: Scraper blades reduce waste by removing excess coating.
- Versatility: Suitable for various substrates and coating materials.
- Automation: PLC and touchscreen controls simplify operation and monitoring.
- Regular inspection of rollers for wear and damage.
- Cleaning reservoirs and scraper blades after each production run.
- Calibration of tension controls and coating thickness settings.
- Scheduled lubrication of moving parts.
- Integration with Industry 4.0 for real-time monitoring and predictive maintenance.
- Development of eco-friendly coating materials and solvent recovery systems.
- Enhanced precision through advanced sensor technology and AI-driven controls.
- Expansion into flexible electronics and energy storage applications.
Q1: What types of coatings can be applied using roller coating equipment?
A1: Paints, resins, adhesives, and other liquid coatings compatible with the roller system can be applied.
Q2: How is coating thickness controlled in roller coating?
A2: Thickness is controlled by scraper blades and roller pressure adjustments.
Q3: Can roller coating equipment handle different substrate materials?
A3: Yes, it supports substrates like plastic films, metal foils, paper, glass, and more.
Q4: What maintenance is required for roller coating machines?
A4: Regular cleaning, lubrication, roller inspection, and calibration are essential.
Q5: How does roller coating compare to other coating methods?
A5: Roller coating offers higher speed, uniformity, and material efficiency for flat or cylindrical substrates compared to spray or dip coating.
