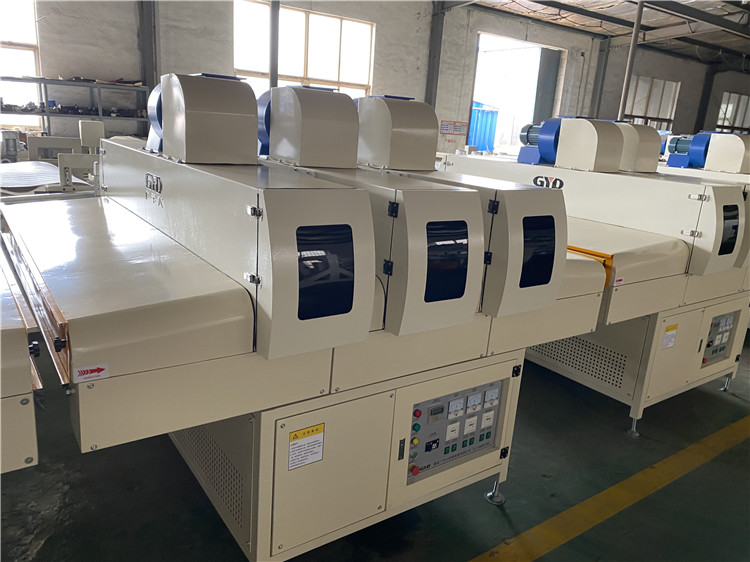

UV coating machines are specialized equipment used to apply a protective and decorative coating to various substrates such as paper, plastic, metal, and glass. Utilizing ultraviolet (UV) light to cure coatings instantly, these machines enhance the durability, gloss, and aesthetic appeal of printed materials and other products. This article explores the working principles, features, and applications of UV coating machines, with a focus on the latest technologies and operational guidelines.
UV coating involves applying a liquid coating that contains photoinitiators. When exposed to UV light emitted by a mercury discharge lamp or LED UV source, these photoinitiators trigger a rapid polymerization reaction, curing the coating almost instantly. This process results in a hard, glossy finish that is resistant to scratches and chemicals.
- The coating liquid is evenly applied on the substrate surface via rollers.
- The coated substrate then passes under a UV lamp where curing occurs.
- The curing speed and quality depend on lamp wattage, conveyor speed, and coating thickness.
- Coating Rollers: Distribute the UV coating liquid evenly across the substrate.
- Pinch Roller: Controls the pressure to ensure uniform coating thickness.
- UV Lamp: Provides the ultraviolet light necessary for curing.
- Conveyor System: Moves the substrate through the coating and curing stages.
- Control Panel: Allows adjustment of parameters like roller gap, lamp intensity, and conveyor speed.
Modern machines like the LQ-MD 350 UV Coating Machine feature:
- Ultrasonic correction devices for precise alignment.
- Rewinding and unwinding systems with constant tension control.
- Variable speed regulation for coating and curing processes.
- Integrated UV curing systems with mercury lamps.
Using customized Anilox rollers, operators can flexibly control coating thickness, ranging from ultra-thin to thick layers, depending on the substrate and application needs.
- UV curing power can reach up to 7 kW.
- Conveyor speeds up to 70 meters per minute allow for high throughput.
- Adjustable lamp wattage (e.g., 150 WPI or 250 WPI) optimizes curing for different coatings.
- Protective enclosures and eye protection requirements.
- Automated exhaust blowers activated when lamps are on.
- Digital readouts for precise control of roller gap and speed.
- Feed materials face up through the roller assembly.
- Adjust pinch roller pressure via air pressure valve (typically 50 psi).
- Set roller gap using a hand wheel with digital readout calibrated in thousandths of an inch or hundredths of a millimeter.
- For thick materials, maintain a gap slightly less than the material thickness; for thin materials, rollers may be closed with a scraper engaged.
- Start the UV lamp at high wattage mode, then adjust to desired levels.
- Adjust conveyor speed to control exposure time; higher speeds reduce curing time.
- Monitor amperage and wattage indicators to ensure lamp operates within safe parameters.
- Select the pump and open the appropriate drain handle.
- Adjust pump speed to control coating flow rate (1-2 strokes per second).
- Maintain pump pressure between 20-60 psi for optimal coating.
- Printing Industry: Enhances the gloss and durability of printed sheets, including paper, board, and plastic.
- Electronics: Used for coating circuit boards to protect against moisture and wear.
- Packaging: Provides scratch resistance and aesthetic appeal to packaging materials.
- Wood and Metal Finishing: Offers protective coatings that cure quickly without solvents.
- Glass and PVC Profiles: Improves surface hardness and appearance.
- Instant Curing: UV light cures coatings within seconds, increasing production speed.
- Environmentally Friendly: UV coatings are often solvent-free, reducing VOC emissions.
- High Durability: Coatings are resistant to scratches, chemicals, and fading.
- Enhanced Appearance: Provides a high-gloss, smooth finish that improves product appeal.
- Energy Efficient: UV lamps consume less energy compared to traditional drying ovens.
---
- Regularly clean scrapers and rollers to avoid coating defects.
- Monitor roller pressure and gap settings to maintain uniform coating thickness.
- Check UV lamp condition and replace when intensity decreases.
- Ensure exhaust blowers function properly to remove ozone generated by UV lamps.
- Use safety goggles and gloves during operation and maintenance.
Q1: What materials can be coated with a UV coating machine?
A1: UV coating machines can coat paper, plastic sheets, metal, glass, wood, PVC profiles, and electronic circuit boards.
Q2: How is the thickness of the UV coating controlled?
A2: Thickness is controlled by adjusting the roller gap, roller speeds, and using customized Anilox rollers.
Q3: What safety precautions are necessary when operating UV coating machines?
A3: Operators should wear eye protection and gloves, ensure proper ventilation, and avoid direct exposure to UV light.
Q4: Can UV coating machines handle both thick and thin materials?
A4: Yes, machines can be adjusted to accommodate thick materials with roller gaps or thin materials with closed rollers and scrapers.
Q5: How does UV curing compare to traditional drying methods?
A5: UV curing is much faster, more energy-efficient, and environmentally friendly compared to conventional drying ovens.
