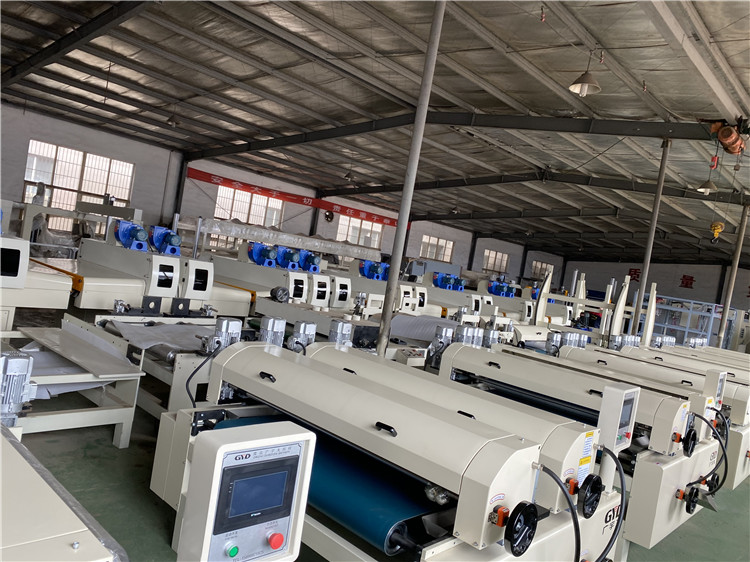

Roll-to-roll (R2R) coating is a cutting-edge manufacturing technique that involves applying coatings to flexible substrates such as plastic films, metal foils, or paper by continuously passing the material through a series of rollers. This process is widely used in industries ranging from electronics and packaging to pharmaceuticals due to its high throughput, precision, and scalability.
The roll-to-roll coating process unwinds a flexible substrate from a roll, passes it through coating stations where a liquid or solid coating is applied, and rewinds the coated substrate onto another roll. This continuous motion allows for efficient, large-scale production.
- Application Rollers: These rollers carry the coating material and transfer it onto the substrate.
- Doctor or Metering Rollers: These control the thickness of the coating by scraping or metering excess material.
- Conveyor or Web System: Moves the substrate steadily through the coating process.
- Drying and Curing Units: Post-coating, substrates often pass through ovens or UV curing stations to solidify the coating.
Slot-die coating is a pre-metered technique where the coating material is dispensed through a precision slit onto the moving substrate. This method offers excellent uniformity and minimal material waste, making it ideal for thin films and multilayer coatings.
In this method, a precision knife blade controls the coating thickness as the substrate passes beneath it. It is suitable for thicker and more viscous coatings.
An air jet blows off excess coating, controlling the thickness without physical contact. This method is used for thin, uniform coatings.
The substrate passes through a gap between rollers, squeezing the coating material onto the surface. Adjusting the gap changes the coating thickness.
Thermoplastic coatings are heated and applied in molten form, then cooled to solidify on the substrate.
The substrate is submerged in a coating bath and then dried. This is common for bulk coatings on fabrics or films.
A continuous curtain of coating fluid falls onto the substrate, ensuring a uniform layer.
Molten synthetic resin is extruded onto the substrate at high temperatures for protective or decorative layers.
- High Throughput: Continuous processing enables fast production speeds.
- Precision Control: Metering rollers and slot-die heads allow exact control over coating thickness and uniformity.
- Material Efficiency: Pre-metered techniques reduce waste, saving costly materials.
- Versatility: Compatible with a wide range of substrates and coating materials.
- Integration: Multiple processing steps (cleaning, coating, drying, curing) can be combined inline for streamlined manufacturing.
R2R coating is critical for producing flexible displays, solar cells, and sensors by depositing conductive inks and active layers on plastic films.
Coatings improve barrier properties, printability, and aesthetics of packaging films.
Coatings on medical films and patches control drug release and protect active ingredients.
Protective and decorative coatings on metal sheets enhance durability and appearance.
Maintaining consistent tension across rollers prevents defects like wrinkles or uneven coatings.
Techniques such as corona or plasma treatment improve substrate wettability for better coating adhesion.
Matching drying profiles with coating speed and solvent volatility ensures defect-free films.
Vacuum-based methods like physical vapor deposition (PVD) and plasma-enhanced chemical vapor deposition (PECVD) can be combined with R2R to apply thin films under controlled environments.
Q1: What materials can be coated using roll-to-roll coating?
A1: Flexible substrates such as plastic films, metal foils, paper, and textiles can be coated using R2R techniques.
Q2: How is coating thickness controlled in roll-to-roll coating?
A2: Thickness is controlled by adjusting the gap between rollers, roller speeds, and using metering devices like doctor blades or slot-die heads.
Q3: What industries benefit most from roll-to-roll coating?
A3: Electronics, packaging, pharmaceuticals, and metal fabrication industries rely heavily on R2R coating for high-volume, precise coatings.
Q4: Can roll-to-roll coating be combined with vacuum deposition?
A4: Yes, vacuum processes like PVD and PECVD are integrated with R2R to apply thin films under vacuum conditions for high-quality coatings.
Q5: What are the environmental benefits of roll-to-roll coating?
A5: R2R coating offers near 100% transfer efficiency, reducing material waste and emissions compared to other coating methods.
