The paint brush industry has witnessed significant technological advancements, particularly in the manufacturing of wooden handles. The automatic paint brush wooden handle making machine plays a pivotal role in enhancing production efficiency, precision, and labor cost savings. This article explores the features, working principles, types, and benefits of these machines, supported by visual materials and videos to provide a comprehensive understanding of their operation and impact.

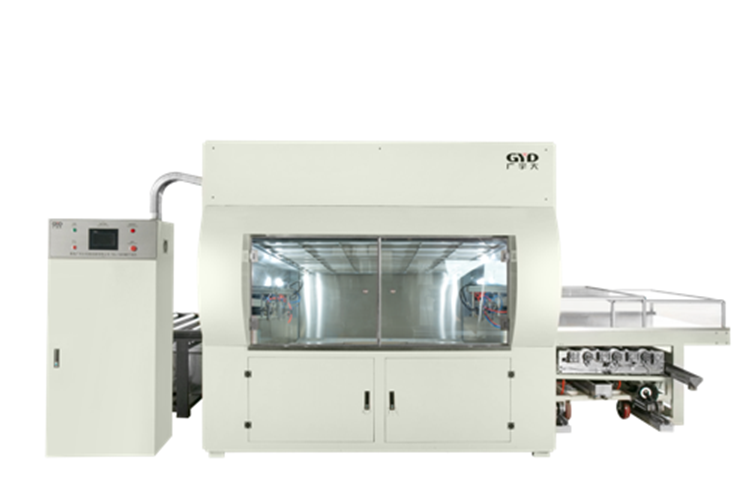

An automatic paint brush wooden handle making machine is specialized equipment designed to produce wooden handles for paint brushes with minimal human intervention. These machines automate processes such as shaping, sanding, drilling, and finishing wooden handles, ensuring uniformity and high output rates.
- Automatic feeding and unloading: Operators only need to load raw wooden blanks; the machine handles the rest.
- High production speed: Capable of producing thousands of handles per day.
- Precision shaping: Molds and cutters shape handles into various ergonomic designs.
- Versatility: Adjustable molds for different handle sizes and shapes.
- Integration: Can be connected to other paint brush assembly machines for a seamless production line.
This type uses a reciprocating feeding design, simplifying the structure and allowing easy mold changes for different handle shapes. It is suitable for handles ranging from 1 to 6 inches.
- Speed: 10-15 pieces per minute
- Power: 5.48 KW (3 phase)
- Weight: 500 kg
- Dimensions: 1750*880*1450 mm
Transforms flat wooden handles into oval shapes, reducing raw material waste and improving handle ergonomics.
- Speed: 35-40 pieces per minute
- Power: 5 KW
- Air Supply: 0.6 MPa
Combines wooden handle making with ferrule and bristle assembling machines for a full-scale automated paint brush manufacturing process.
- Features: Automatic feeding, assembling, nailing, and quality control.
- Speed: Up to 22 pieces per minute for handle and ferrule assembly.
- Control: PLC touchscreen for easy operation and error monitoring.
Wooden blanks are loaded into the hopper. The machine automatically feeds the blanks into the shaping section.
Using molds and cutters, the machine shapes the handle into the desired form — flat, oval, or round.
Handles are sanded and polished to ensure smoothness and remove any splinters.
Some models include drilling machines for creating holes for hanging or assembly purposes.
Finished handles are ejected into a collection bin or conveyor for further processing.
- Increased Productivity: Machines can produce up to 1500 handles in 8 hours, significantly more than manual production.
- Labor Cost Reduction: Automation reduces the need for manual labor, cutting operational costs.
- Consistent Quality: Uniform handle shapes and finishes improve product quality.
- Flexibility: Easy mold changes allow for different handle designs.
- Integration Capability: Can be linked with ferrule inserting and bristle filling machines for a streamlined production line.
The handle making machine is often part of a larger automated system that includes:
- Ferrule Inserting and Nailing Machine: Automatically assembles metal ferrules to wooden handles.
- Bristle Filling Machine: Inserts and secures bristles into the ferrule.
- Surface Shaving and Sanding Machines: Provide finishing touches to handles.
- Hole Drilling Machines: Prepare handles for hanging or assembly.
This integration enhances efficiency and reduces manual handling.
Q1: What types of wood are suitable for paint brush handles?
A1: Common woods include beech, birch, and other hardwoods that provide durability and smooth finishing.
Q2: Can the machine produce handles of different sizes?
A2: Yes, the machine molds are adjustable to produce various handle sizes and shapes.
Q3: How much maintenance does the machine require?
A3: Regular cleaning, lubrication, and timely replacement of cutting tools are necessary to maintain optimal performance.
Q4: Is the machine compatible with plastic handles?
A4: Some models are designed to handle plastic and wooden handles, but primarily it is optimized for wood.
Q5: What is the typical production capacity?
A5: Depending on the model, machines can produce between 10 to 40 handles per minute, translating to thousands per day.
The automatic paint brush wooden handle making machine is a transformative solution for paint brush manufacturers, offering high efficiency, consistent quality, and cost savings. Its integration into a fully automated production line further streamlines paint brush manufacturing, meeting the growing demand for quality brushes worldwide.
