Automatic paint stripping machines have transformed the way industries remove coatings from surfaces, offering efficiency, safety, and environmental benefits over traditional manual methods. This comprehensive guide explores the technologies, applications, and advantages of these machines, supported by visuals and videos to illustrate their operation and impact.

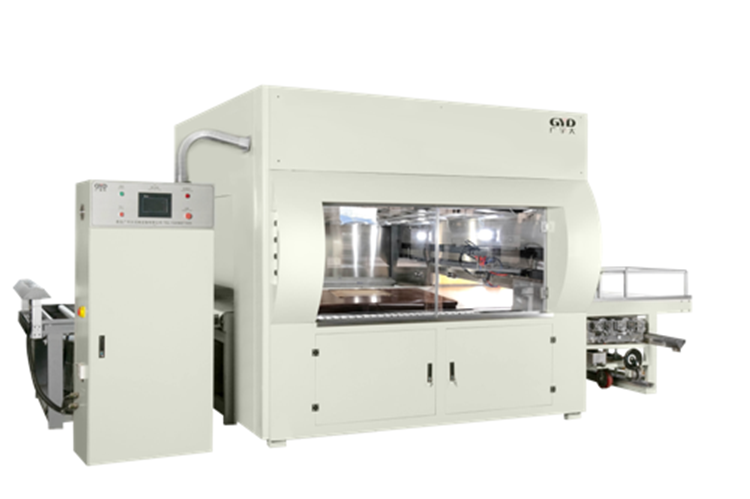

An automatic paint stripping machine is a mechanized system designed to remove paint, coatings, and other surface finishes from various substrates such as metals, plastics, and wood. These machines use advanced processes like chemical dipping, spraying, laser ablation, or inductive heating to efficiently strip paint with minimal manual labor.
Chemical paint stripping machines use heated or room-temperature chemical agents to dissolve or loosen paint coatings. Systems like the EVA series employ dipping or spraying processes with temperature-controlled baths to optimize stripping time and protect substrates. Features include stainless steel construction, circulation pumps, filtration, and integrated rinsing systems for efficiency and safety.
Laser paint stripping machines use pulsed fiber lasers to evaporate or ablate paint layers without chemicals or abrasives. Portable models resemble suitcase-sized units with handheld laser guns, offering precision, environmental friendliness, and minimal substrate damage. They are ideal for metals, wood, concrete, and sensitive surfaces.
These machines remove paint by heating the substrate through induction or conduction, causing the paint to blister and peel off without chemicals. This method is fast, environmentally friendly, and suitable for metal components in automotive, industrial, and mechanical engineering sectors.
1. Preparation: Parts are loaded onto racks or trolleys.
2. Heating: Chemical baths are heated to optimal temperatures (up to 120°C).
3. Stripping: Parts are dipped or sprayed with chemicals that penetrate and dissolve paint layers.
4. Circulation and Filtration: Chemicals circulate to maintain uniform temperature and are filtered to remove paint residue.
5. Rinsing: Fresh water rinses the parts to remove chemical residues.
6. Drying: Parts are dried and inspected.
1. Setup: The laser machine is positioned near the workpiece.
2. Parameter Adjustment: Power, pulse frequency, and width are set according to surface and paint type.
3. Laser Ablation: The laser beam irradiates the surface, vaporizing paint without damaging the substrate.
4. Cleanup: No chemical waste is produced, and minimal residue is left.
1. Placement: Parts are placed on conductive plates or within induction coils.
2. Heating: Electromagnetic fields heat the metal substrate, causing paint to blister.
3. Removal: Blistered paint is removed mechanically or by air jets.
- Efficiency: Automated systems operate continuously, reducing labor and cycle times.
- Safety: Minimizes worker exposure to hazardous chemicals and dust.
- Environmental Impact: Laser and inductive methods reduce or eliminate chemical use and waste.
- Precision: Selective stripping protects sensitive areas and substrates.
- Versatility: Suitable for various materials and complex geometries.
- Regulatory Compliance: Systems often include safety features such as vapor extraction and leakage detection.
- Automotive: Removing old paint from car bodies and parts for repainting or restoration.
- Aerospace: Precision removal of coatings without damaging lightweight alloys.
- Metal Fabrication: Preparing steel and aluminum components for recoating.
- Military and Defense: Stripping paint from equipment in compliance with strict environmental standards.
- Construction: Surface preparation for pipelines and industrial machinery.
- Regularly check and replace chemical baths or filters.
- Monitor temperature and circulation systems for optimal performance.
- Use personal protective equipment when handling chemicals.
- Ensure proper ventilation and vapor extraction.
- Follow manufacturer guidelines for laser operation and safety.
Q1: What types of coatings can automatic paint stripping machines remove?
A1: They can remove paints, lacquers, powder coatings, rust, and other surface contaminants from metals, plastics, wood, and composites.
Q2: Are automatic paint stripping machines safe for delicate materials?
A2: Yes, especially laser and heat-activated chemical strippers designed for light alloys and sensitive substrates.
Q3: How do laser paint stripping machines compare to chemical methods?
A3: Laser machines are faster, environmentally friendly, and chemical-free, but chemical systems may be more cost-effective for large batch processing.
Q4: Can automatic paint stripping machines be integrated into production lines?
A4: Yes, many systems are designed for continuous operation and can be customized for multi-shift industrial use.
Q5: What maintenance is required for these machines?
A5: Regular cleaning, chemical bath replacement, filter changes, and safety system checks are essential for optimal performance.
